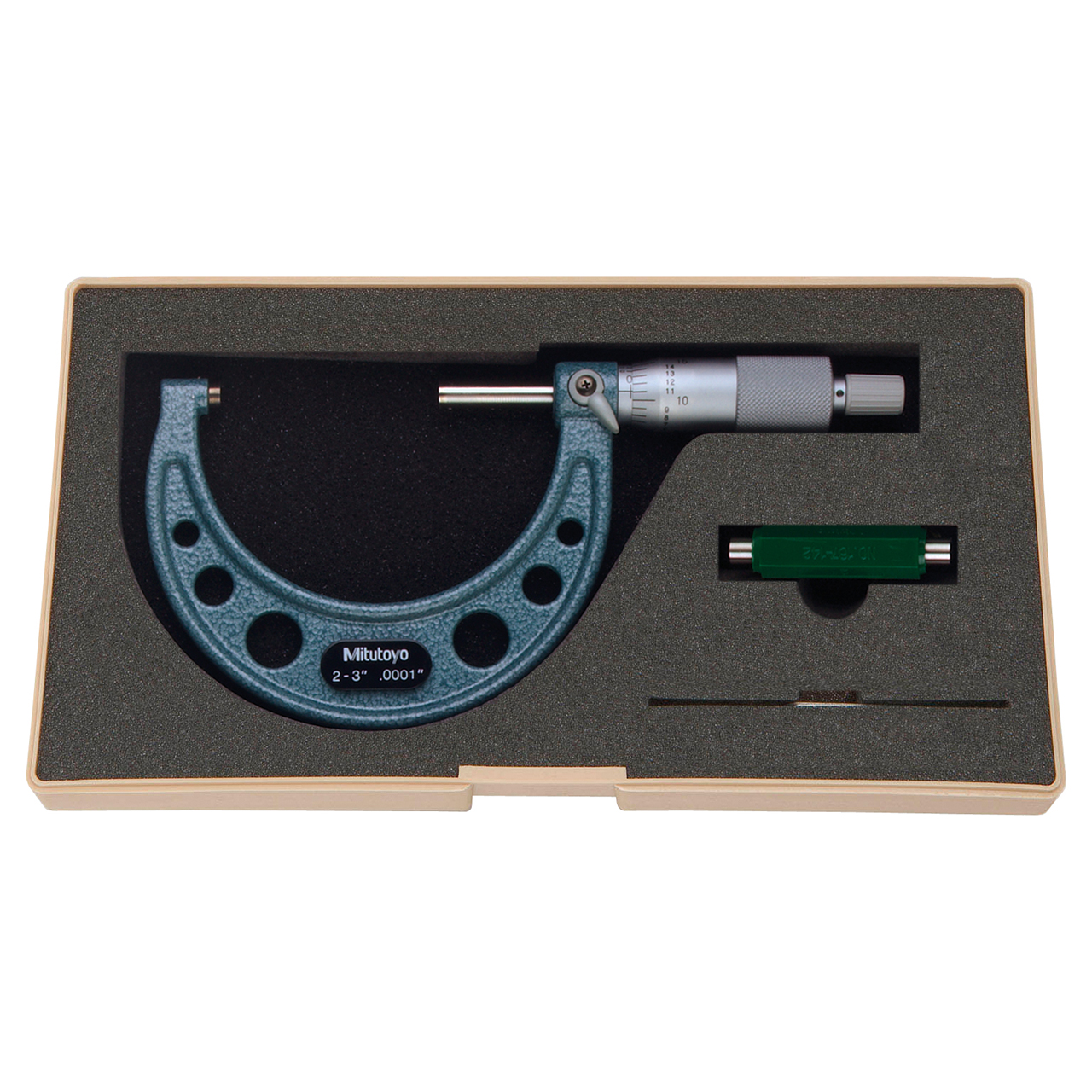

Mitutoyo 103-217 | 2 - 3" Range x 0.0001" Resolution Mechanical Outside Micrometer

Description

The Mitutoyo 103-217 Mechanical Outside Micrometer is a precision measuring tool designed for checking outside dimensions on machined parts, components, and workpieces. It provides a 2 to 3" measuring range with 0.0001" graduations, making it suitable for dimensional inspection where fine mechanical readings are required.

A ratchet stop helps maintain consistent measuring pressure for repetitive measurements. The micrometer also includes a standard bar, which supports reference and setup requirements within its specified measuring range.

The frame features a hammertone, baked enamel finish, while carbide measuring surfaces provide durable contact during routine inspection work. Its mechanical construction requires no batteries, making the tool suitable for machine shops, manufacturing facilities, maintenance areas, and inspection stations.

Product Features and Benefits

2 to 3" Measuring Range

The Mitutoyo 103-217 Mechanical Outside Micrometer covers measurements from 2 to 3". The larger range makes it suitable for inspecting outside dimensions on components that exceed the capacity of smaller micrometers.

0.0001" Graduations

Fine 0.0001" graduations support detailed dimensional readings for machining and inspection applications. The mechanical scale provides direct measurement without relying on batteries or an electronic display.

Ratchet Stop

The ratchet stop helps apply consistent measuring pressure during repeated measurements. Consistent force can make it easier to compare dimensions across multiple workpieces.

Carbide Measuring Surfaces

Carbide measuring surfaces provide durable contact points for regular dimensional inspection. The material is suited to repeated use in machine shop and manufacturing environments.

Hammertone Baked Enamel Frame

The micrometer features a hammertone, baked enamel finished frame. The finish provides a durable surface for routine industrial use.

Standard Bar Included

A standard bar is included with the micrometer. The supplied accessory provides a useful reference for measurement and setup requirements.

Mechanical Construction

The 103-217 operates mechanically and does not require batteries. Its conventional design makes it practical for machinists, inspectors, maintenance personnel, and manufacturing professionals who prefer direct mechanical measurement.

Frequently Asked Questions

What is the measuring range of the Mitutoyo 103-217?

The micrometer has a 2 to 3" measuring range and a maximum measurement of 3".

What is the maximum measurement in millimeters?

The maximum measurement is 76.20 mm.

What is the graduation of the 103-217?

The micrometer has 0.0001" graduations, allowing for fine dimensional readings.

Is the Mitutoyo 103-217 a mechanical micrometer?

Yes. The 103-217 is a mechanical outside micrometer and does not require batteries.

Does the 103-217 have a ratchet stop?

Yes. The micrometer has a ratchet stop that helps maintain consistent measuring force for repetitive readings.

Does the product include a standard bar?

Yes. A standard bar is included with the Mitutoyo 103-217.

What material are the measuring surfaces made from?

The measuring surfaces are specified as carbide, providing durable contact for dimensional inspection.

What type of frame finish does the micrometer have?

The frame has a hammertone, baked enamel finish.

What can the Mitutoyo 103-217 be used to measure?

It can be used to check outside dimensions on machined parts, components, and workpieces within its 2 to 3" measuring range.

Is the Mitutoyo 103-217 suitable for machine shops?

Yes. The 2 to 3" range, 0.0001" graduation, carbide measuring surfaces, and ratchet stop make it suitable for dimensional inspection in machine shop and manufacturing applications.

How many micrometers are included?

The listed interval quantity is 1, so the product quantity is one mechanical outside micrometer.
