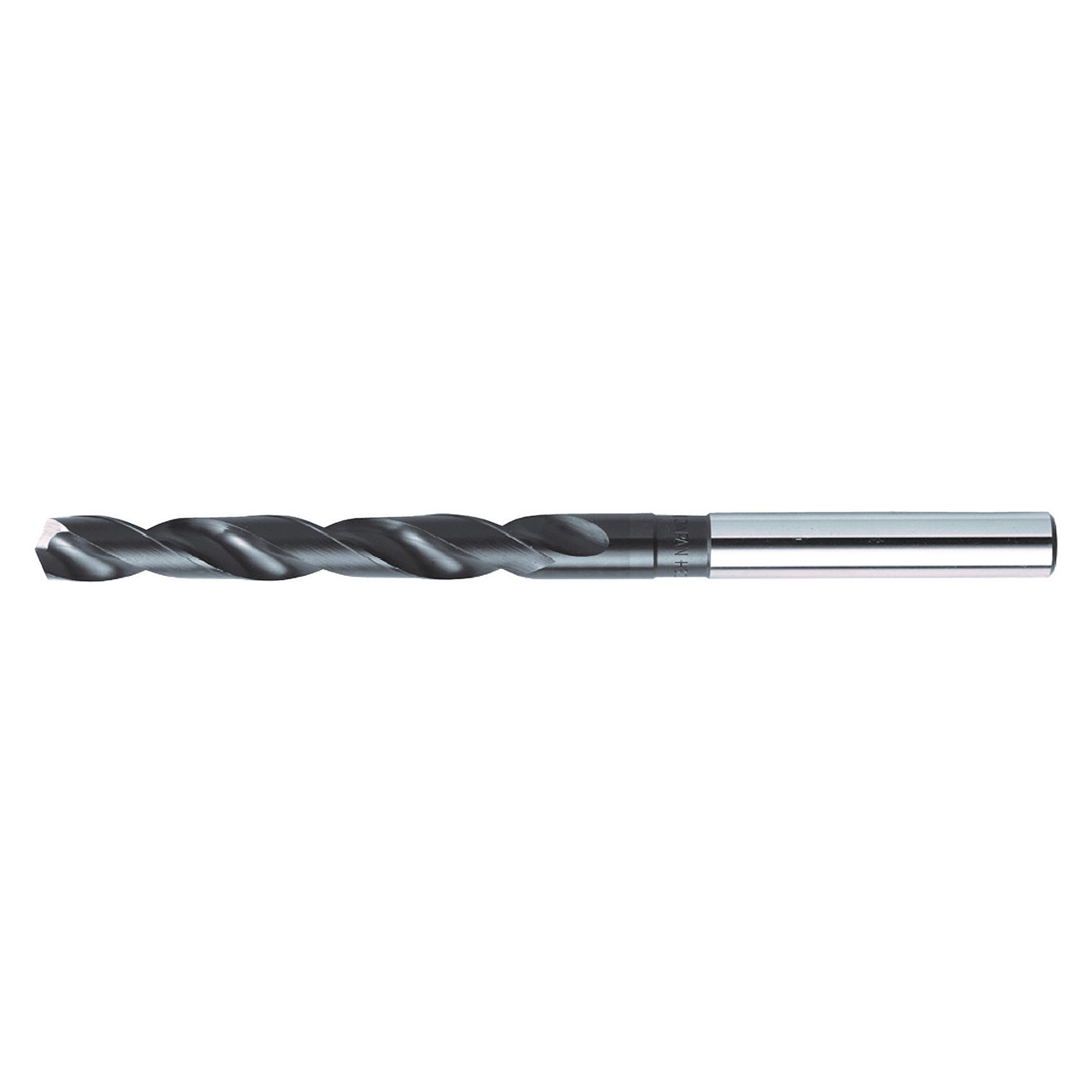

Product Specifications
| # Manufacturer Number | 1058582 |
| Diameter (Inch) | 39/64" |
| Shank (Inch) | 13/64"" |
| Flute Length (Inch) | 4-7/8" |
| Overall Length (Inch) | 8-3/4" |
| Drill Point Angle | 118 |
| Number of Flute | 2 |
| Material | High Speed Cobalt Steel |
| Finish / Coating | Black Oxide |
| Coolant Through | No |
| Cutting Direction | Right |
| Flute Type | Conventional Spiral |
| Shank Type | Straight Shank |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Nachi
Drill Bit Size (Inch):
39/64";Drill Bit Size (Decimal Inch)=0.6094""
Drill Bit Size (mm):
15.48mm
Shank Type:
Straight Shank
Flute Length (Inch):
4-7/8";Flute Length (Decimal Inch)=4.8750""
Flute Length (mm):
123.83mm
Overall Length (Inch):
8-3/4";Overall Length (Decimal Inch)=8.7500""
Overall Length (mm):
222.25mm
Drill Point Angle:
118 Degree
Finish/Coating:
Black Oxide
Material:
High Speed Cobalt Steel
Coolant Through:
No
