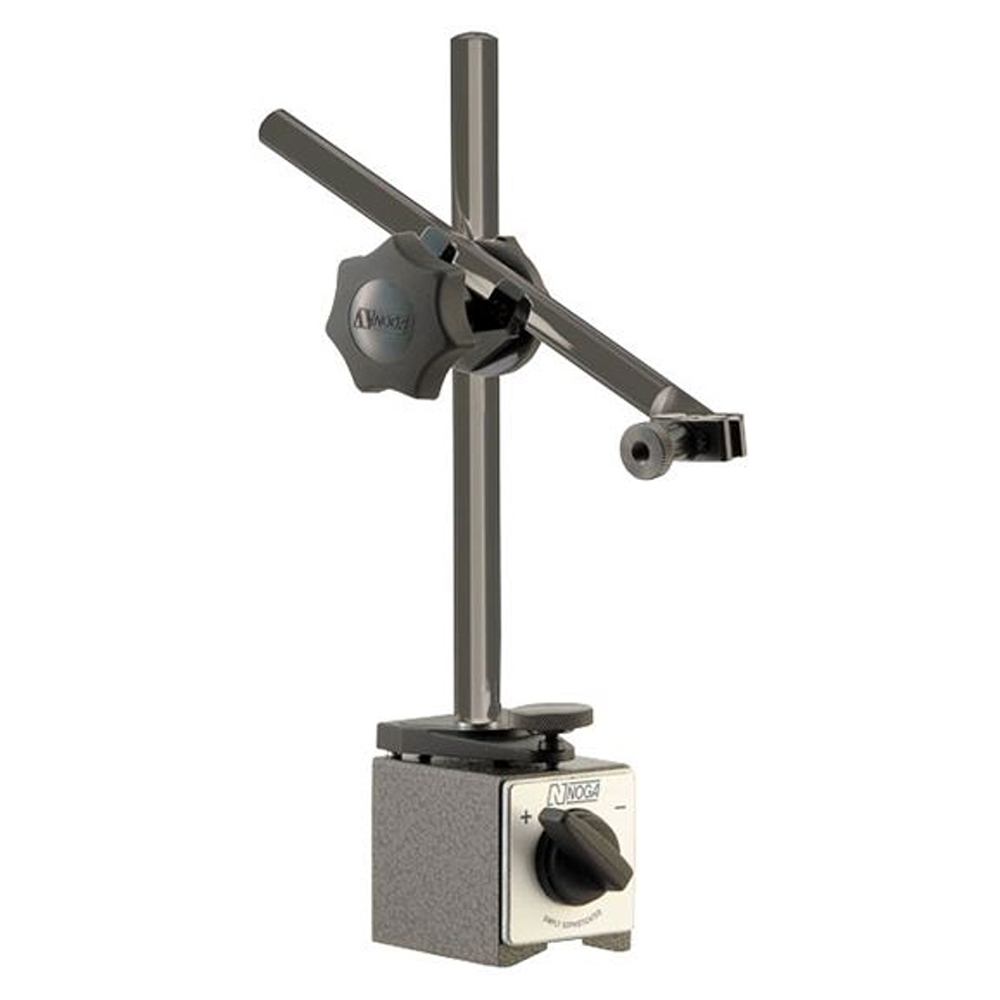

Noga PH2040 | Magnetic Base With Fine Adjustment Dial, Test & Digital Indicators

Description

The Noga PH2040 is a fine-adjust magnetic base made for dial tests and digital indicators in inspection work. This Noga PH2040 fine-adjusted magnetic base features a universal swivel clamp for all common indicator stems. A strong on-and-off magnetic base switch with 800 N magnetic force secures the base to ferrous surfaces instantly. The PH2040 spinner dial test holder base uses a unique 3-point arm lock system for robust rigidity. Arms measure Ø12 x 185mm and the main post is Ø14 x 203mm to support a wide range of indicators. It clamps 6 mm, 8 mm, 3/8", and dovetail stems, making it a flexible magnetic indicator stand for toolrooms. Black finish on the arms provides professional protection against workshop wear and grime. Fast and repeatable setup reduces inspection cycle time when switching gauges or orientations. Magnet width 50mm, a length of 60 mm and a height of 55 mm offer a compact footprint with high holding stability. The PH2040 holder is ideal where fine adjustment and repeatable micro-positioning are required. Technicians can use the fine adjust to make micrometric probe movements without disturbing the setup. The PH2040 supports both mechanical dial and modern digital indicators for hybrid inspection stations. Universal compatibility and the 3-point arm lock deliver dependable clamping in angled positions. This Noga PH2040 fine-adjust magnetic base stand is built to provide consistent, vibration-resistant measurement support. Select the Noga PH2040 for precise dialing, fine adjustment control and durable workshop performance.

Product Features and Benefits

800 N Magnetic Force

The PH2040 base delivers 800 N of magnetic force to hold indicator setups securely during measurement tasks.

Universal Swivel Clamp

Universal clamp accepts dial and digital indicator stems (6 mm, 8 mm, 3/8", dovetail) for broad compatibility.

3-Point Arm Lock System

Unique three-point arm locking gives strong, repeatable rigidity for fine adjustment with the PH2040 base.

Fine Adjustment Post

The Ø14 x 203mm post with fine adjustment capability allows precise, micrometric positioning of indicators.

Compact High-Force Footprint

50 x 60 x 55mm magnet dimensions create a compact base that still provides industrial holding strength.

Frequently Asked Questions

What magnet force does the Noga PH2040 provide?

The Noga PH2040 offers an 800 N magnet force for reliable on and off holding of indicator setups.

Which indicator stems fit the PH2040 swivel clamp?

The PH2040 accepts 6 mm, 8 mm, 3/8", and dovetail stems for both dial and digital indicators.

What is the length of the PH2040 main post?

The PH2040 post measures Ø14 x 203mm to give ample height and stable fine adjustment control.

How does the 3-point arm lock improve performance?

The 3-point arm lock system provides stronger arm rigidity and consistent positioning for precision work.

Is the PH2040 suitable for digital indicators?

Yes, the PH2040’s universal clamp and fine adjustment make it suitable for both mechanical and digital inclinometers.
