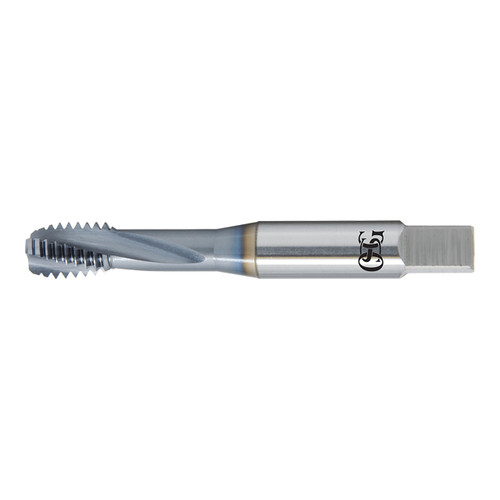

OSG 0143001 | EXOTAP 5/16"-24 TPI Thread Size x 0.445" Thread Length x 0.318" Shank 3 Flute Bottom Chamfer UNF Steam Oxide Coated VC-10 Spiral Flute Tap

$44.89 $34.49
(You save $10.40)
Brand:
OSG
Overall Length (Decimal Inch):
2.7190"
Number of Flutes:
3
Material:
VC-10
Finish/Coating:
Steam Oxide
Flute Direction:
Right Hand
interval quantity:
1
SKU:
17995590
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 0143001 | EXOTAP 5/16"-24 TPI Thread Size x 0.445" Thread Length x 0.318" Shank 3 Flute Bottom Chamfer UNF Steam Oxide Coated VC-10 Spiral Flute Tap

EXOTap VC-10 is the premium solution for Tapping in difficult to machine Materials.

Features & Benefits:

  • Premium Powdered Metal VC-10 Substrate: Increased Hardness for longer life
  • Spiral Flute: For Blind Hole Applications
  • Steam Oxide Surface Treatment: S/O Increases Mechanical Lubricity
  • OSG V-Coating: Increased Hardness, Lubricity & Wear Resistance
Product Specifications
Manufacturer Part Number0143001
Chamfer Length (Decimal Inch)0.063"
Major Diameter (Decimal Inch)0.313"
Neck Length (Decimal Inch)1.126"
Number of Flutes3
Overall Length (Decimal Inch)2.719"
Shank Diameter (Decimal Inch)0.318"
Square Length (Decimal Inch)0.375"
Square Width (Decimal Inch)0.238"
Maximum Tap Drill Size (Decimal Inch)0.277"
Minimum Tap Drill Size (Decimal Inch)0.267"
Thread Length (Decimal Inch)0.445"
Thread Size (Inch)5/16"
CoatingSteam Oxide
MaterialVC-10
Helix DirectionRight Hand
Helix Angle (Degree)15 Degree
Product TypeSpiral Flute Tap
