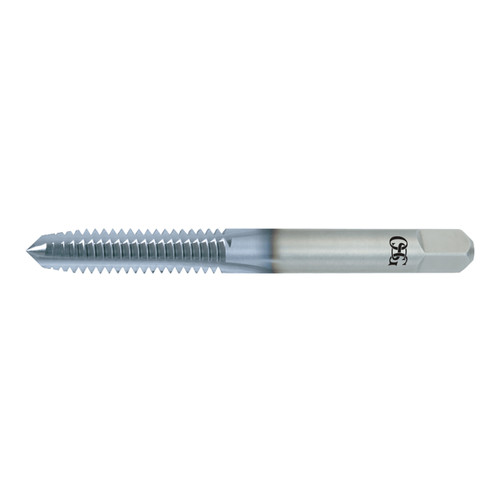

EXOCARB Taps Carbide Taps for Cast Iron & Aluminum.
Product Specifications
| Manufacturer Part Number | 1006101700 |
| Chamfer Length (Decimal Inch) | 0.059" |
| Chamfer Type | Bottom (1.5P) |
| Cutting Direction | Right Hand |
| List Name | CHT |
| Major Diameter (mm) | 8.00mm |
| Neck Length (mm) | 28.60mm |
| Number of Flutes | 4 |
| Overall Length (mm) | 69.10mm |
| Pitch (mm) | 1.00mm |
| Shank Diameter (mm) | 8.08mm |
| Square Length (Decimal Inch) | 9.500" |
| Square Length (mm) | 9.53mm |
| Square Width (Decimal Inch) | 6.050" |
| Square Width (mm) | 6.05mm |
| Material | Carbide |
| Coating | Bright |
| Tap Drill Size Maximum (mm) | 7.15mm |
| Tap Drill Size Minimum (mm) | 6.92mm |
| Thread Length (mm) | 15.00mm |
| Thread Limit | D5 |
| Thread Size | M8 |
| Thread Type | MF |
| Series | 10061 |
| Product Type | Straight Flute Tap |
