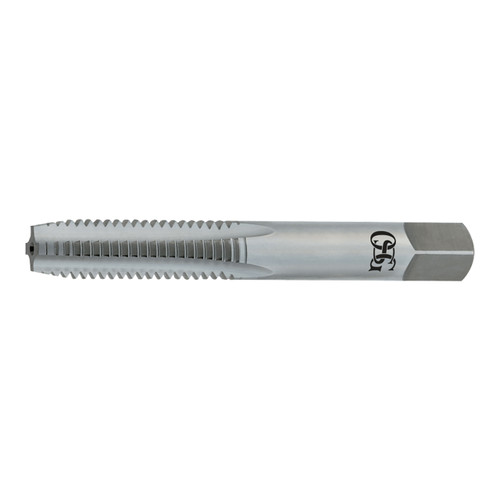

General Purpose tap series provides exceptional value for tapping helicoil (STI) threads in a variety of ferrous and nonferrous metals.
Features & Benefits:
| Manufacturer Part Number | 10800200 |
| Chamfer Length (Decimal Inch) | 0.031" |
| Chamfer Type | Bottom (1.5P) |
| Cutting Direction | Right Hand |
| Helix Angle (Degree) | 50 Degree |
| Helix Direction | Right Hand |
| List Name | GENERAL PURPOSE-SFT STI |
| Major Diameter (Decimal Inch) | 0.112" |
| Neck Length (Decimal Inch) | 0.688" |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 2.000" |
| Shank Diameter (Decimal Inch) | 0.141" |
| Square Length (Decimal Inch) | 0.188" |
| Square Width (Decimal Inch) | 0.110" |
| Material | HSS |
| Coating | Bright |
| Tap Drill Size Maximum (Decimal Inch) | 0.123" |
| Tap Drill Size Minimum (Decimal Inch) | 0.117" |
| Thread Length (Decimal Inch) | 0.251" |
| Thread Limit | H2 |
| Thread Size | No. 4 |
| Thread Size (Number) | #4 |
| Thread Type | UNF STI |
| Thread Per Inch (TPI) | 48 TPI |
| Series | S108 |
| Product Type | Spiral Flute STI Tap |
