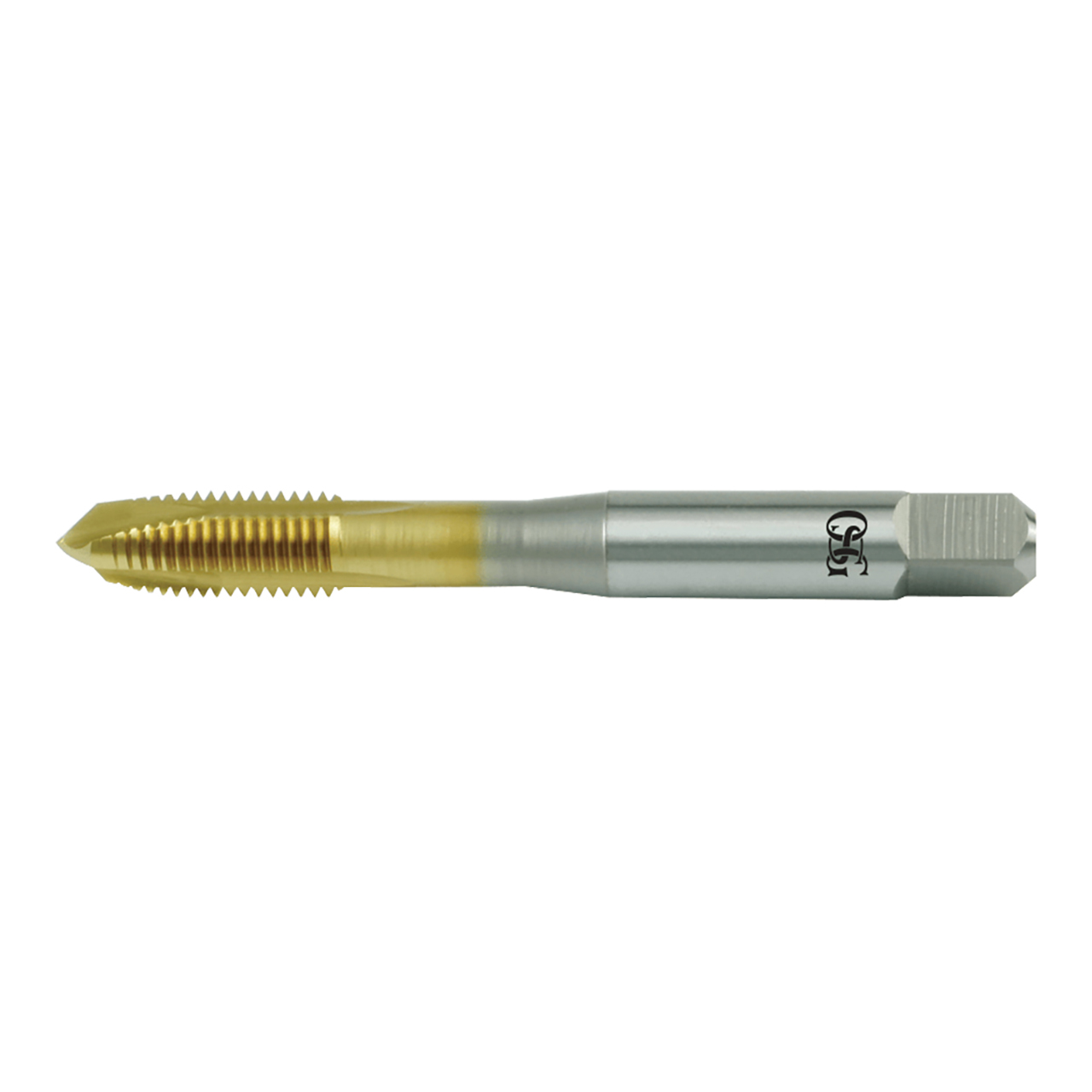

HY-PRO AERO-F is the premium spiral point tap designed specifically for threading Aerospace threaded fasteners.
Features & Benefits:
| Manufacturer Part Number | 1101504905 |
| Chamfer Length (Decimal Inch) | 0.225" |
| Major Diameter (Decimal Inch) | 0.500" |
| Neck Length (Decimal Inch) | 1.480" |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 3.375" |
| Shank Diameter (Decimal Inch) | 0.367" |
| Square Length (Decimal Inch) | 0.438" |
| Square Width (Decimal Inch) | 0.275" |
| Maximum Tap Drill Size (Decimal Inch) | 0.457" |
| Minimum Tap Drill Size (Decimal Inch) | 0.446" |
| Thread Length (Decimal Inch) | 0.799" |
| Thread Size (Inch) | 1/2" |
| Coating | TiN |
| Material | HSS-CO |
| Series | 11015 Series |
| Product Type | Spiral Point Tap |
