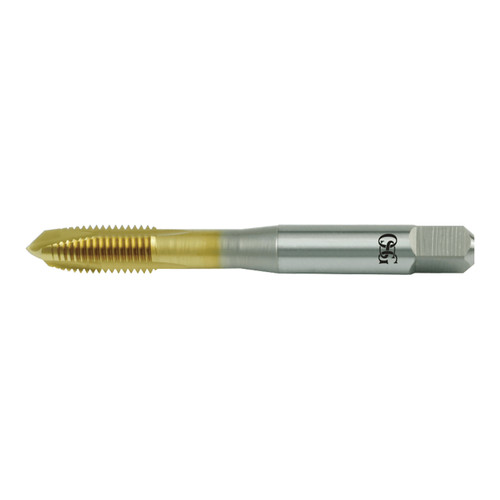

OSG 1101505005 | HY-PRO 1/2" - 20 Thread Size x 0.367" Shank x 0.799" Thread Length x 3.375" OAL UNF H5 Plug (4.5P) Chamfer Type 3 Flute Right Hand TiN Coated HSS-CO 11015 Spiral Point Tap

$56.24 $34.31
(You save $21.93)
Brand:
OSG
Number of Flutes:
3
Material:
HSS-CO
Finish/Coating:
TiN
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
17996116
UPC:
Weight:
0.12 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 1101505005 | HY-PRO 1/2" - 20 Thread Size x 0.367" Shank x 0.799" Thread Length x 3.375" OAL UNF H5 Plug (4.5P) Chamfer Type 3 Flute Right Hand TiN Coated HSS-CO 11015 Spiral Point Tap

HY-PRO AERO-F is the premium spiral point tap designed specifically for threading Aerospace threaded fasteners.

Features & Benefits:

  • Cobalt HSS material: Increased wear resistance
  • Spiral Point: For through hole applications
  • TiN Coating: Improves wear resistance for extended tap life
  • DIN Overall Length: Provides additional reach capability

Product Specifications
Manufacturer Part Number1101505005
Chamfer Length (Decimal Inch)0.225"
Major Diameter (Decimal Inch)0.500"
Neck Length (Decimal Inch)1.480"
Number of Flutes3
Overall Length (Decimal Inch)3.375"
Shank Diameter (Decimal Inch)0.367"
Square Length (Decimal Inch)0.438"
Square Width (Decimal Inch)0.275"
Maximum Tap Drill Size (Decimal Inch)0.457"
Minimum Tap Drill Size (Decimal Inch)0.446"
Thread Length (Decimal Inch)0.799"
Thread Size (Inch)1/2"
CoatingTiN
MaterialHSS-CO
Series11015 Series
Product TypeSpiral Point Tap
