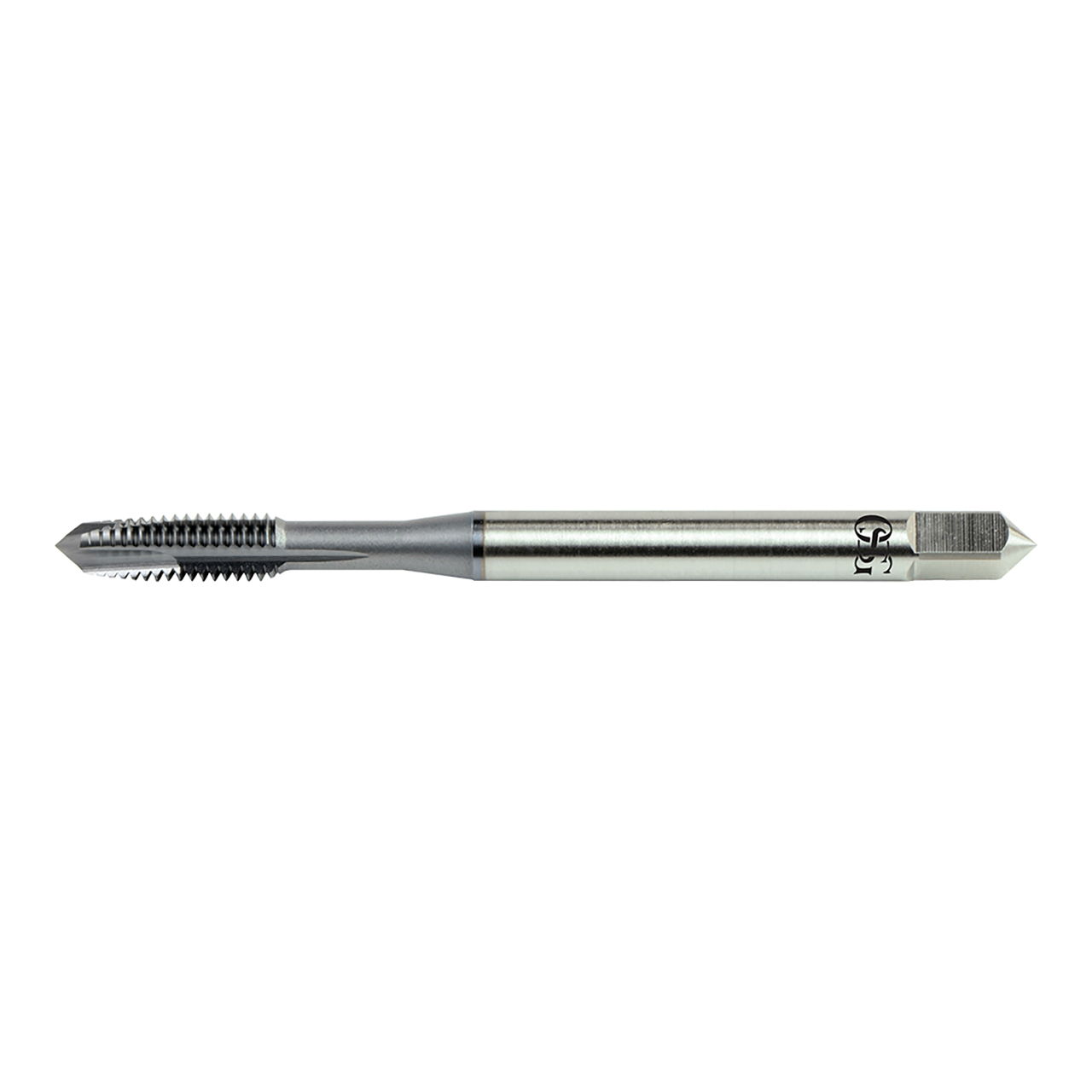

HY-PRO AL DIN is a premium spiral point tap designed for Alloy and Cast Aluminums.
Features & Benefits:
| Manufacturer Part Number | 1101602103 |
| Chamfer Length (Decimal Inch) | 0.200" |
| Chamfer Type | Plug (4P) |
| Cutting Direction | Right Hand |
| List Name | AL-DIN-POT |
| Major Diameter (Decimal Inch) | 0.500" |
| Neck Length (Decimal Inch) | 1.354" |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 3.937" |
| Shank Diameter (Decimal Inch) | 0.367" |
| Square Length (Decimal Inch) | 0.438" |
| Square Width (Decimal Inch) | 0.275" |
| Material | HSSE |
| Coating | Nitride |
| Tap Drill Size Maximum (Decimal Inch) | 0.457" |
| Tap Drill Size Minimum (Decimal Inch) | 0.446" |
| Thread Length (Decimal Inch) | 0.921" |
| Thread Limit | H3 |
| Thread Size (Inch) | 1/2" |
| Thread Type | UNF |
| Thread Per Inch (TPI) | 20 TPI |
| Series | 11016 |
| Product Type | Spiral Point Tap |
