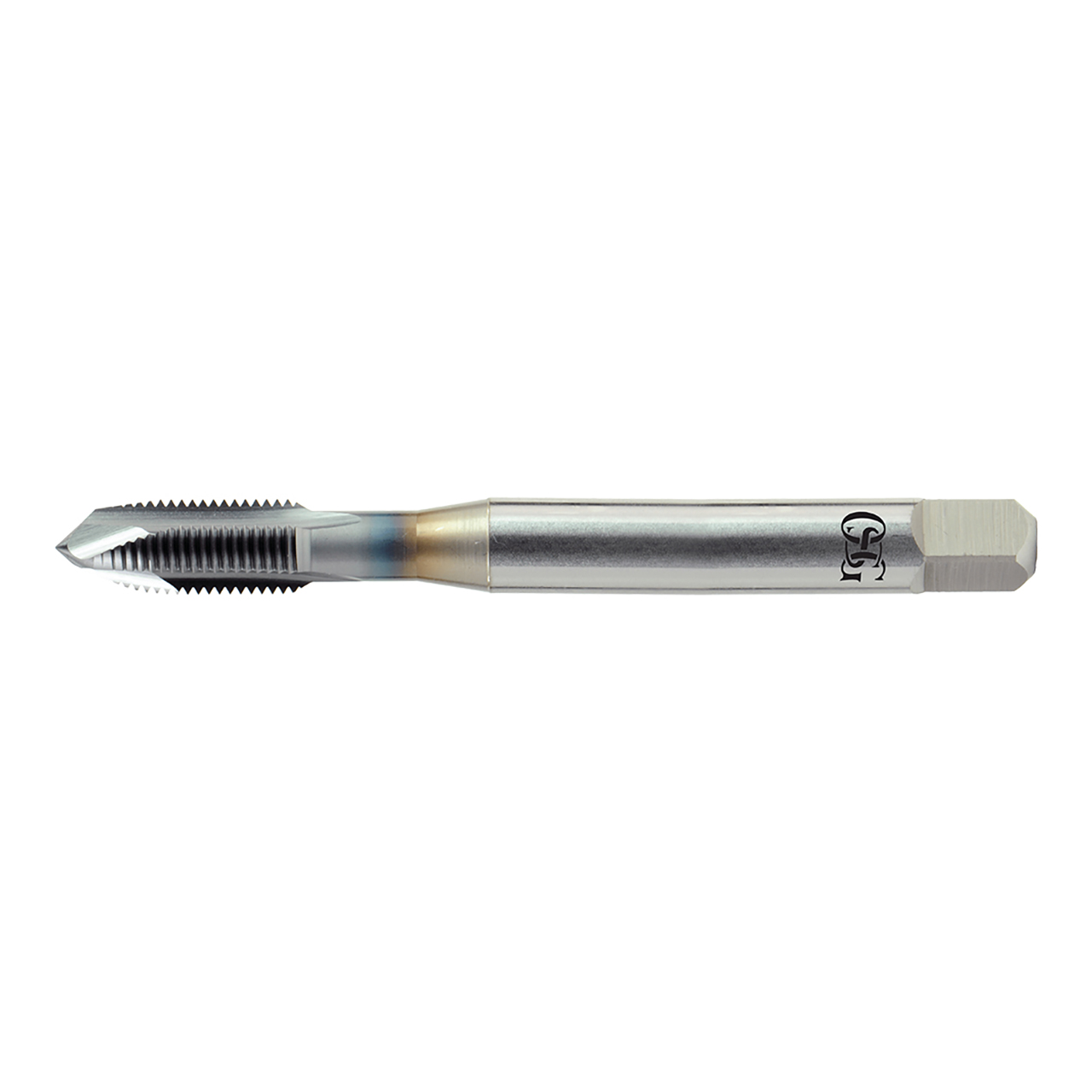

HY-PRO V DIN is the premium solution for unsurpassed performance in difficult to machine materials. This premium spiral point tap is made from vanadium high speed steel.
Features & Benefits:
| Manufacturer Part Number | 1101700308 |
| Chamfer Length (Decimal Inch) | 0.125" |
| Major Diameter (Decimal Inch) | 0.164" |
| Neck Length (Decimal Inch) | 0.835" |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 2.480" |
| Shank Diameter (Decimal Inch) | 0.168" |
| Square Length (Decimal Inch) | 0.250" |
| Square Width (Decimal Inch) | 0.131" |
| Maximum Tap Drill Size (Decimal Inch) | 0.139" |
| Minimum Tap Drill Size (Decimal Inch) | 0.130" |
| Thread Length (Decimal Inch) | 0.382" |
| Thread Size Number | No. 8 |
| Coating | V |
| Material | HSSE |
| Series | 11017 Series |
| Product Type | Spiral Point Tap |
