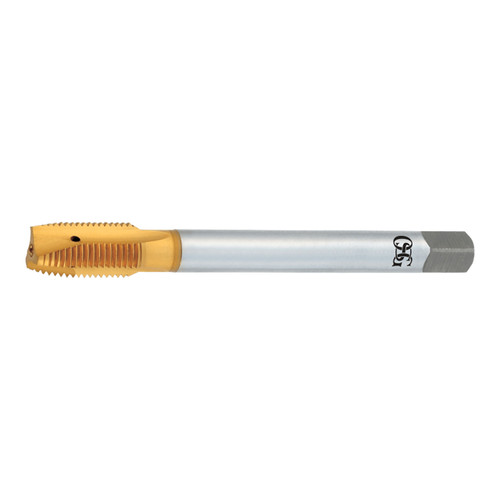

HY-PRO V DIN is the premium solution for unsurpassed performance in difficult to machine materials. This premium spiral point tap is made from vanadium high speed steel.
Features & Benefits:
| Manufacturer Part Number | 1101701008 |
| Chamfer Length (Decimal Inch) | 0.250" |
| Major Diameter (Decimal Inch) | 0.375" |
| Neck Length (Decimal Inch) | 1.386" |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 3.937" |
| Shank Diameter (Decimal Inch) | 0.381" |
| Square Length (Decimal Inch) | 0.438" |
| Square Width (Decimal Inch) | 0.286" |
| Maximum Tap Drill Size (Decimal Inch) | 0.321" |
| Minimum Tap Drill Size (Decimal Inch) | 0.307" |
| Thread Length (Decimal Inch) | 0.760" |
| Thread Size (Inch) | 3/8" |
| Coating | V |
| Material | HSSE |
| Series | 11017 Series |
| Product Type | Spiral Point Tap |
