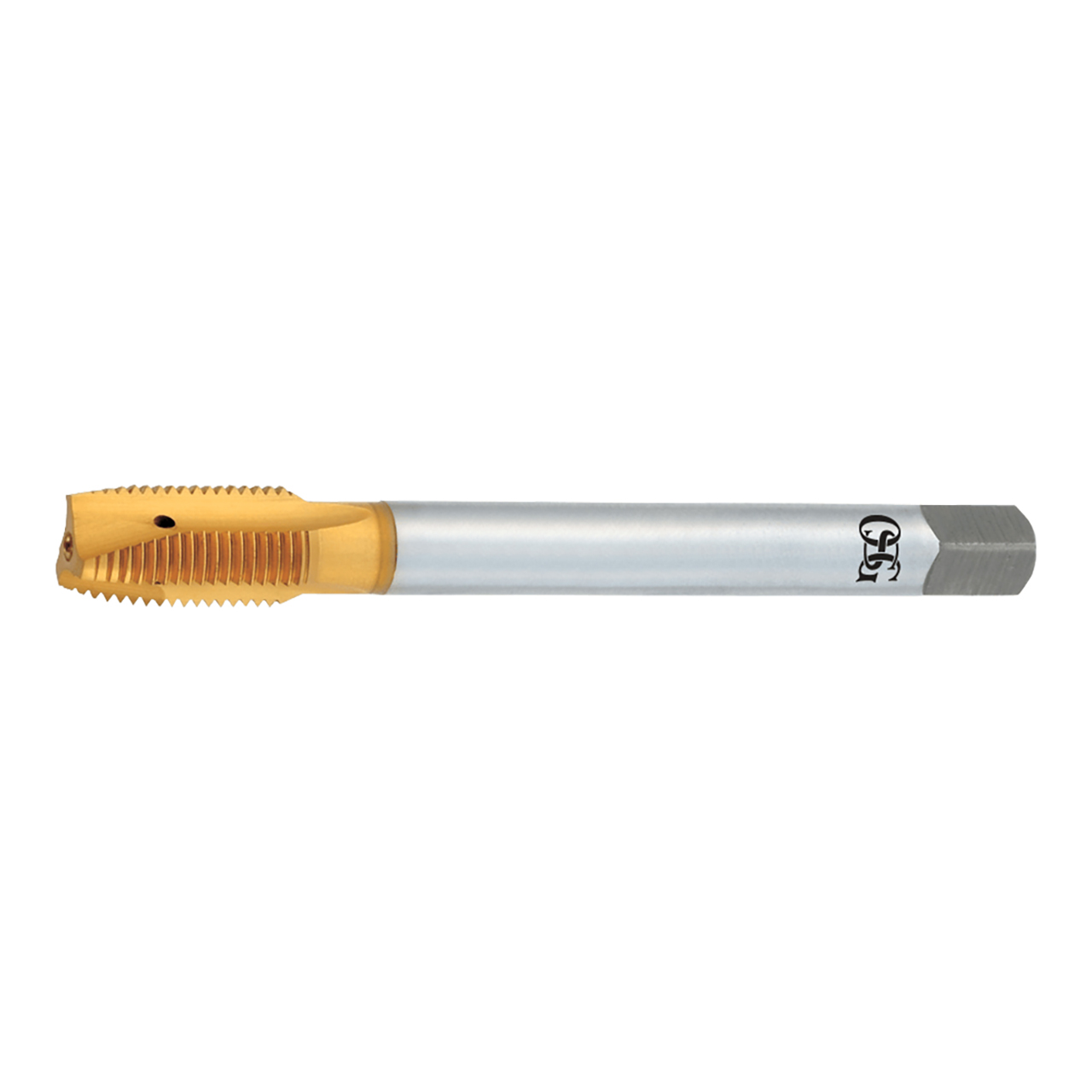

HY-PRO DIN is the original "Do it All" premium spiral point tap for a wide range of materials.
Features & Benefits:
| Manufacturer Part Number | 2631605 |
| Chamfer Length (Decimal Inch) | 0.250" |
| Chamfer Type | Plug (4P) |
| Class of Fit | 2B |
| Coolant Through | Yes |
| Cutting Direction | Right Hand |
| List Name | OIL-TIN-POT |
| Major Diameter (Decimal Inch) | 0.375" |
| Neck Length (Decimal Inch) | 1.378" |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 3.937" |
| Shank Diameter (Decimal Inch) | 0.381" |
| Square Length (Decimal Inch) | 0.438" |
| Square Width (Decimal Inch) | 0.286" |
| Material | HSSE |
| Coating | TiN |
| Tap Drill Size Maximum (Decimal Inch) | 0.321" |
| Tap Drill Size Minimum (Decimal Inch) | 0.307" |
| Thread Length (Decimal Inch) | 0.752" |
| Thread Size (Inch) | 3/8" |
| Thread Type | UNC |
| Thread Per Inch (TPI) | 16 TPI |
| Series | 260 |
| Product Type | Spiral Point Tap |
