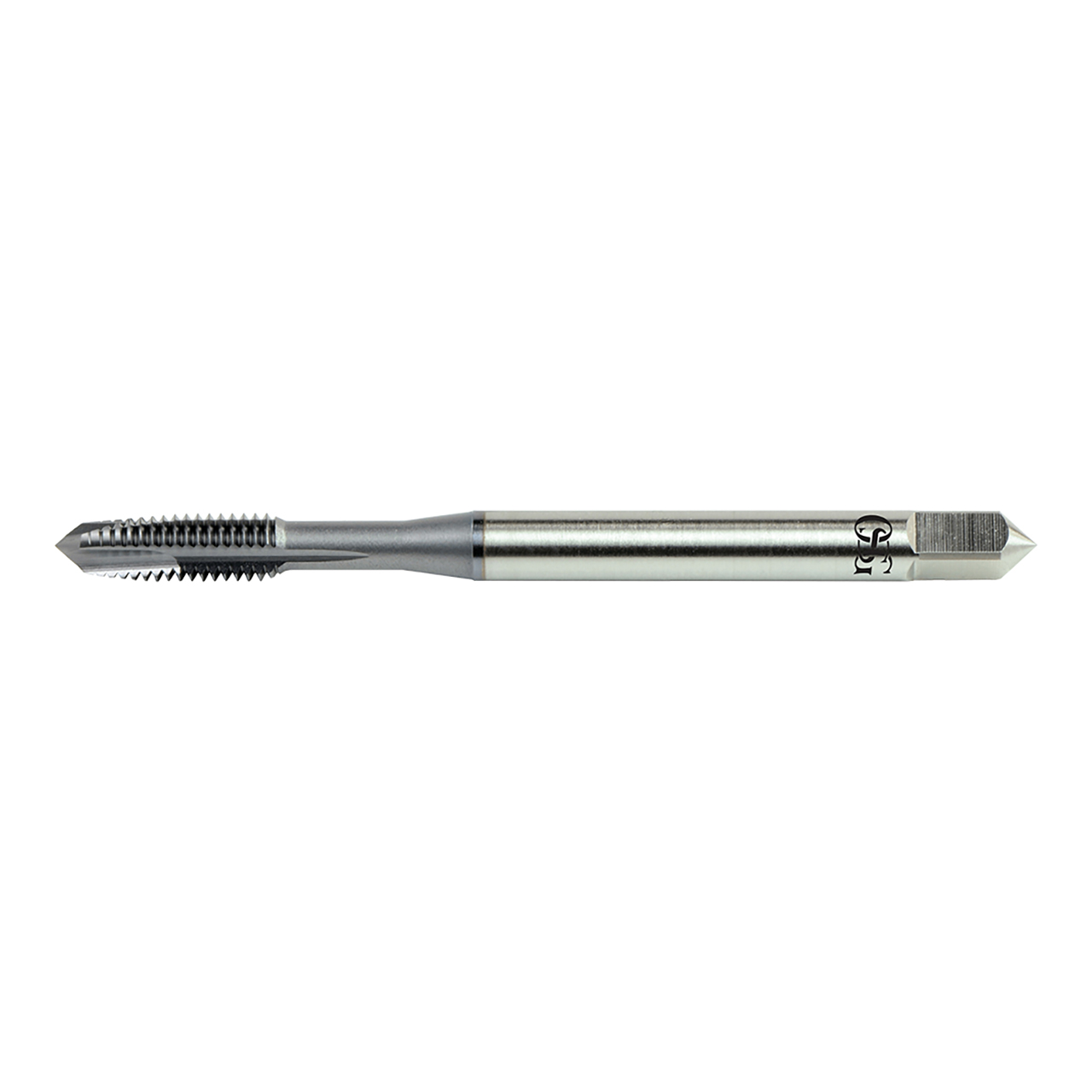

HY-PRO AL STI Taps High Performance Spiral Point STI Tap for Aluminum
| Manufacturer Part Number | 1103600108 |
| Chamfer Length (Decimal Inch) | 0.071" |
| Major Diameter (Decimal Inch) | 0.086" |
| Neck Length (Decimal Inch) | 0.559" |
| Number of Flutes | 2 |
| Overall Length (Decimal Inch) | 1.882" |
| Shank Diameter (Decimal Inch) | 0.141" |
| Square Length (Decimal Inch) | 0.188" |
| Square Width (Decimal Inch) | 0.110" |
| Maximum Tap Drill Size (Decimal Inch) | 0.096" |
| Minimum Tap Drill Size (Decimal Inch) | 0.090" |
| Thread Length (Decimal Inch) | 0.295" |
| Thread Size Number | No. 2 |
| Coating | V |
| Material | HSSE |
| Series | 11036 Series |
| Product Type | Spiral Flute STI Tap |
