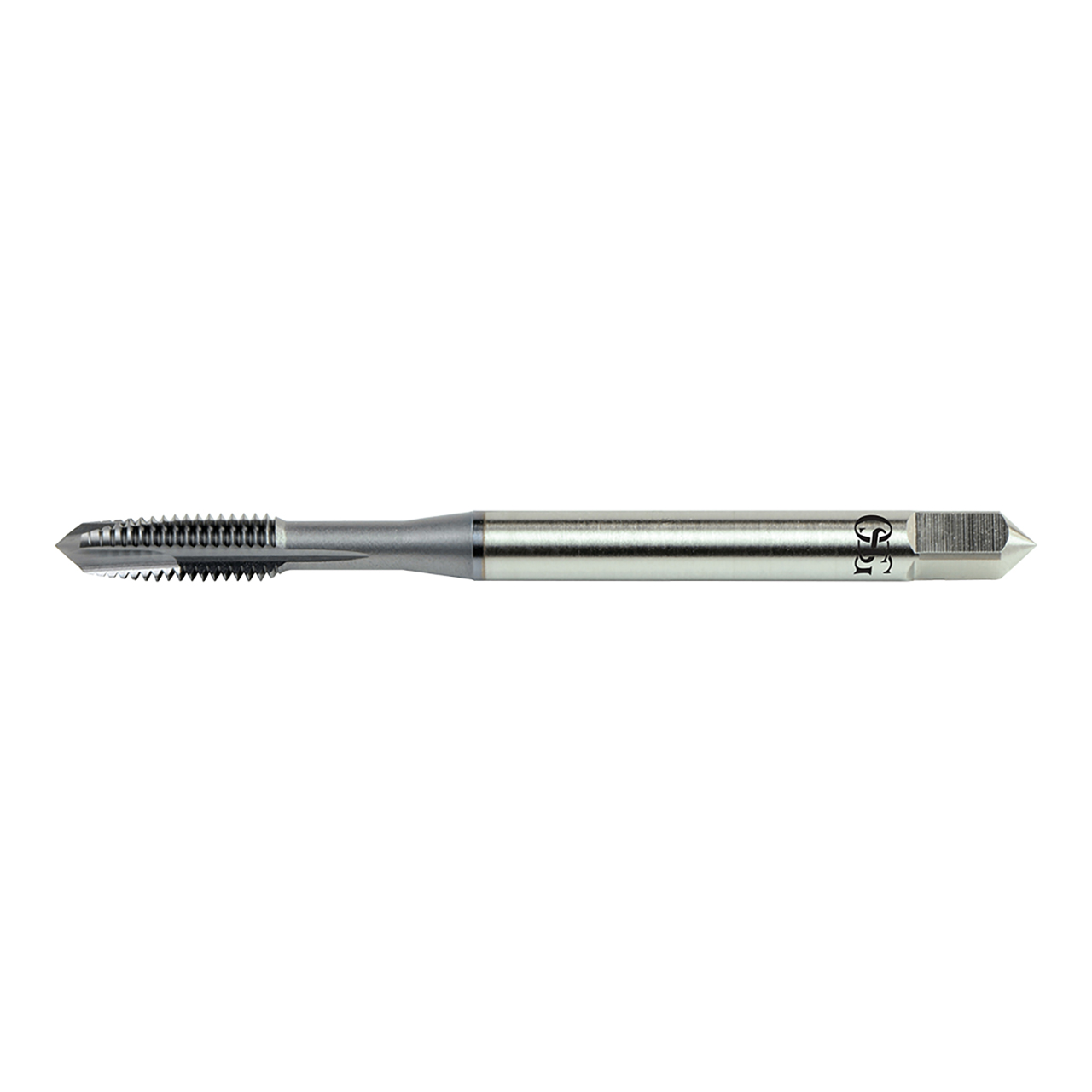

HY-PRO AL STI Taps High Performance Spiral Point STI Tap for Aluminum
| Manufacturer Part Number | 1103600200 |
| Chamfer Length (Decimal Inch) | 0.100" |
| Major Diameter (Decimal Inch) | 0.112" |
| Neck Length (Decimal Inch) | 0.681" |
| Number of Flutes | 2 |
| Overall Length (Decimal Inch) | 2.000" |
| Shank Diameter (Decimal Inch) | 0.141" |
| Square Length (Decimal Inch) | 0.188" |
| Square Width (Decimal Inch) | 0.110" |
| Maximum Tap Drill Size (Decimal Inch) | 0.125" |
| Minimum Tap Drill Size (Decimal Inch) | 0.118" |
| Thread Length (Decimal Inch) | 0.366" |
| Thread Size Number | No. 4 |
| Coating | Bright |
| Material | HSSE |
| Series | 11036 Series |
| Product Type | Spiral Flute STI Tap |
