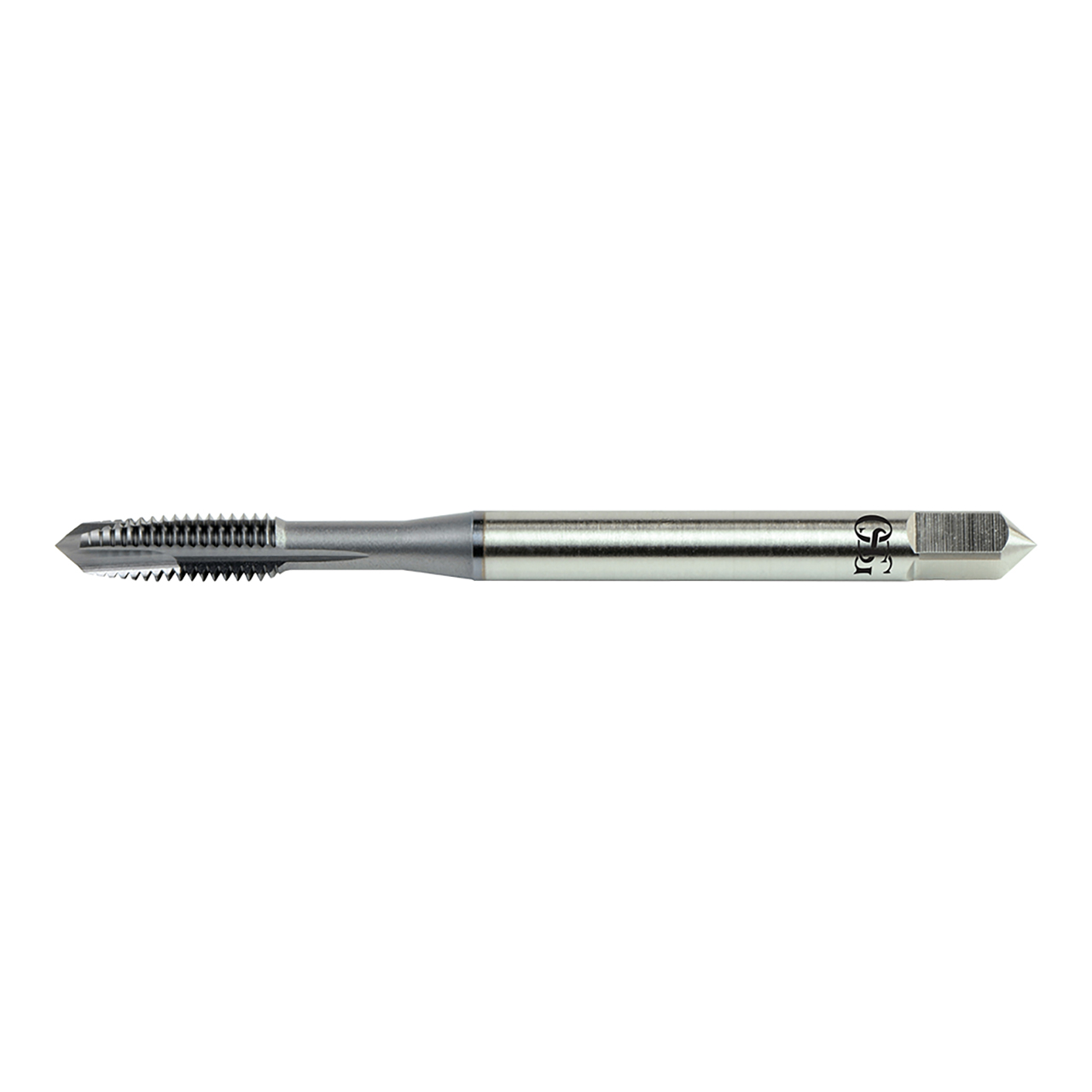

HY-PRO AL STI Taps High Performance Spiral Point STI Tap for Aluminum
| Manufacturer Part Number | 1103600500 |
| Chamfer Length (Decimal Inch) | 0.125" |
| Major Diameter (Decimal Inch) | 0.190" |
| Neck Length (Decimal Inch) | 1.000" |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 2.500" |
| Shank Diameter (Decimal Inch) | 0.255" |
| Square Length (Decimal Inch) | 0.313" |
| Square Width (Decimal Inch) | 0.191" |
| Maximum Tap Drill Size (Decimal Inch) | 0.204" |
| Minimum Tap Drill Size (Decimal Inch) | 0.197" |
| Thread Length (Decimal Inch) | 0.598" |
| Thread Size Number | No. 10 |
| Coating | Bright |
| Material | HSSE |
| Series | 11036 Series |
| Product Type | Spiral Flute STI Tap |
