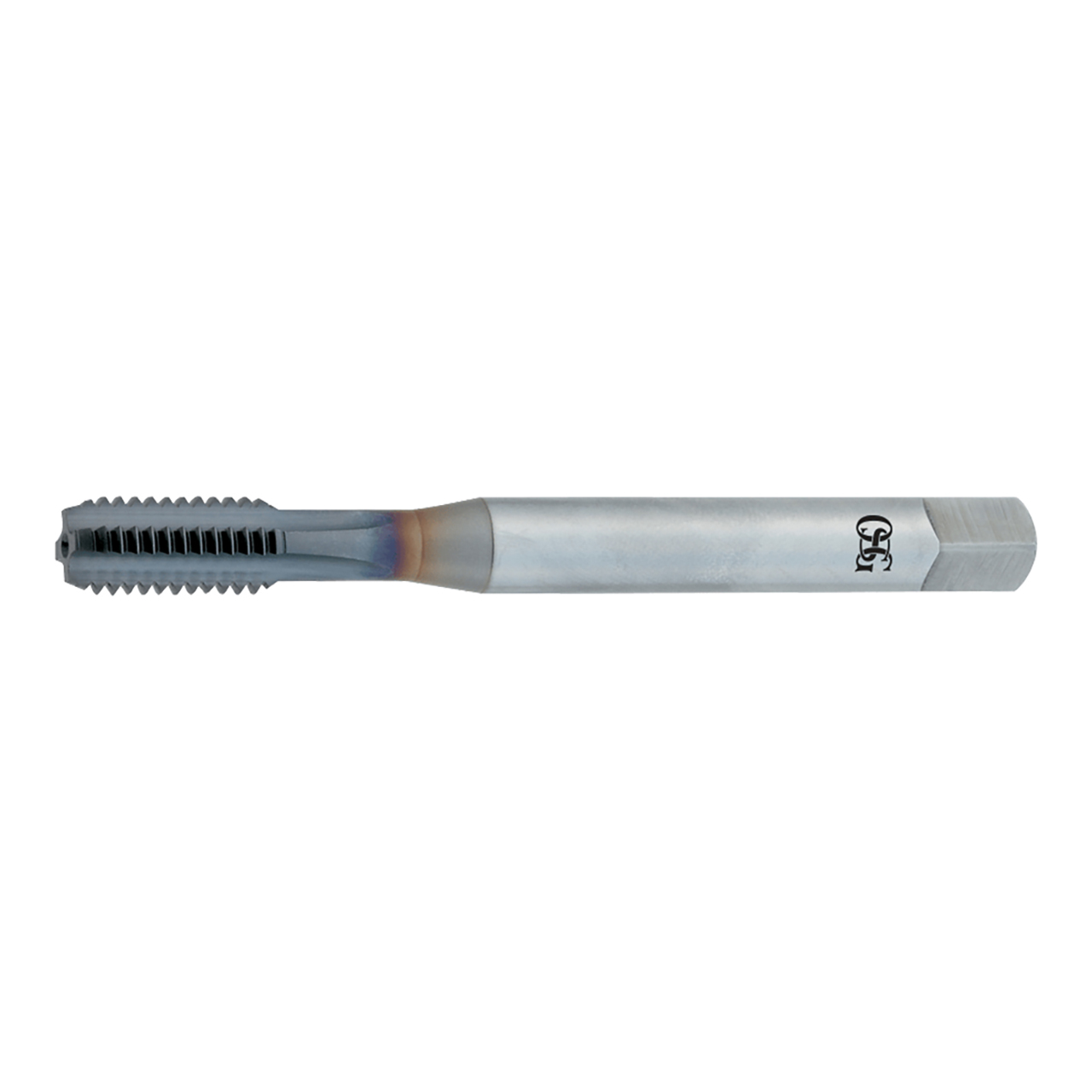

The EXOTAP-DC taps are the industry leading tap for processing threads in Cast Iron, Ductile Iron and Cast Aluminum. The combination of ultra-strong rake with our VC10 powdered metal substrate makes this tap the absolute best soltion for threading ductile castings.
Features & Benefits:
- Eccentic thread relief: Reduces friction during cutting, thereby minimizing heat generation and extending life.
- Straight flute design: Most rigid cut tap design, suitable for both through and blind holes.
- Multi-layered TiCN (V) coating from OSG: The layered configuration resists thermal cracking while increasing surface hardness to extend life up to 3X vs monolayered TiCN.
- Available DIN or ANSI overall lengths, coolant-through or solid, metric and inch, up to 1" or M24.: Absolute versatility for any machining operation in Ductile Iron.
Product Specifications
| Manufacturer Part Number | 1105202408 |
| Chamfer Length (Decimal Inch) | 0.177" |
| Chamfer Type | Bottom (1.5P) |
| Cutting Direction | Right Hand |
| List Name | DC VP-DC-HT |
| Major Diameter (mm) | 24.00mm |
| Neck Length (mm) | 68.40mm |
| Number of Flutes | 5 |
| Overall Length (mm) | 160.00mm |
| Pitch (mm) | 3.00mm |
| Shank Diameter (mm) | 19.30mm |
| Square Length (mm) | 19.05mm |
| Square Width (mm) | 14.48mm |
| Material | VC-10 |
| Coating | V |
| Tap Drill Size Maximum (mm) | 21.25mm |
| Tap Drill Size Minimum (mm) | 20.75mm |
| Thread Length (mm) | 36.00mm |
| Thread Limit | D8 |
| Thread Size | M24 |
| Thread Type | M |
| Series | 11052 |
| Product Type | Straight Flute Tap |
