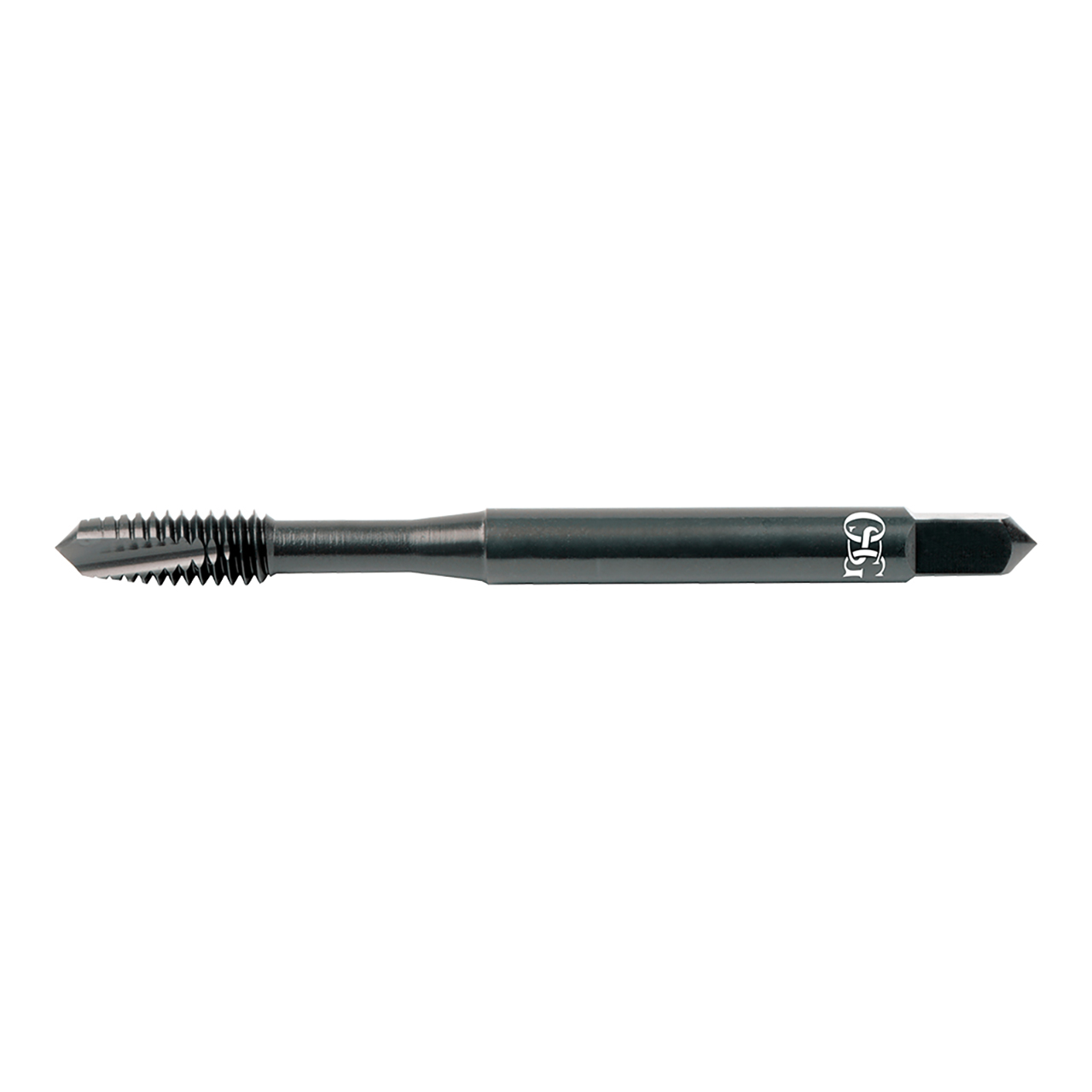

OSG 1111801101 | M10 x 1.50mm Thread Size x 20.10mm Thread Length M D6 Plug (4P) Chamfer Type 3 Flute Right Hand Steam Oxide Coated HSS 11118 Spiral Flute Tap

$102.79 $46.26
(You save $56.53)
Brand:
OSG
Number of Flutes:
3
Material:
HSS
Finish/Coating:
Steam Oxide
Flute Direction:
Right Hand
interval quantity:
1
SKU:
17996545
UPC:
Weight:
0.18 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 1111801101 | M10 x 1.50mm Thread Size x 20.10mm Thread Length M D6 Plug (4P) Chamfer Type 3 Flute Right Hand Steam Oxide Coated HSS 11118 Spiral Flute Tap

General Purpose spiral point tap provides exceptional value for all general threading applications.

Features & Benefits:

  • HSS material: Increased wear resistance
  • Spiral Point: For through hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • Long Shank: Provides additional reach capability

Product Specifications
Manufacturer Part Number1111801101
Chamfer Length (Decimal Inch)0.236"
Major Diameter (mm)10.00mm
Neck Length (mm)32.50mm
Number of Flutes3
Overall Length (mm)152.40mm
Pitch (mm)1.50mm
Shank Diameter (mm)9.68mm
Square Length (mm)11.11mm
Square Width (mm)7.26mm
Maximum Tap Drill Size (mm)8.68mm
Minimum Tap Drill Size (mm)8.38mm
Thread Length (mm)20.10mm
Thread SizeM10
CoatingSteam Oxide
MaterialHSS
Series11118 Series
Product TypeSpiral Flute Tap

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
