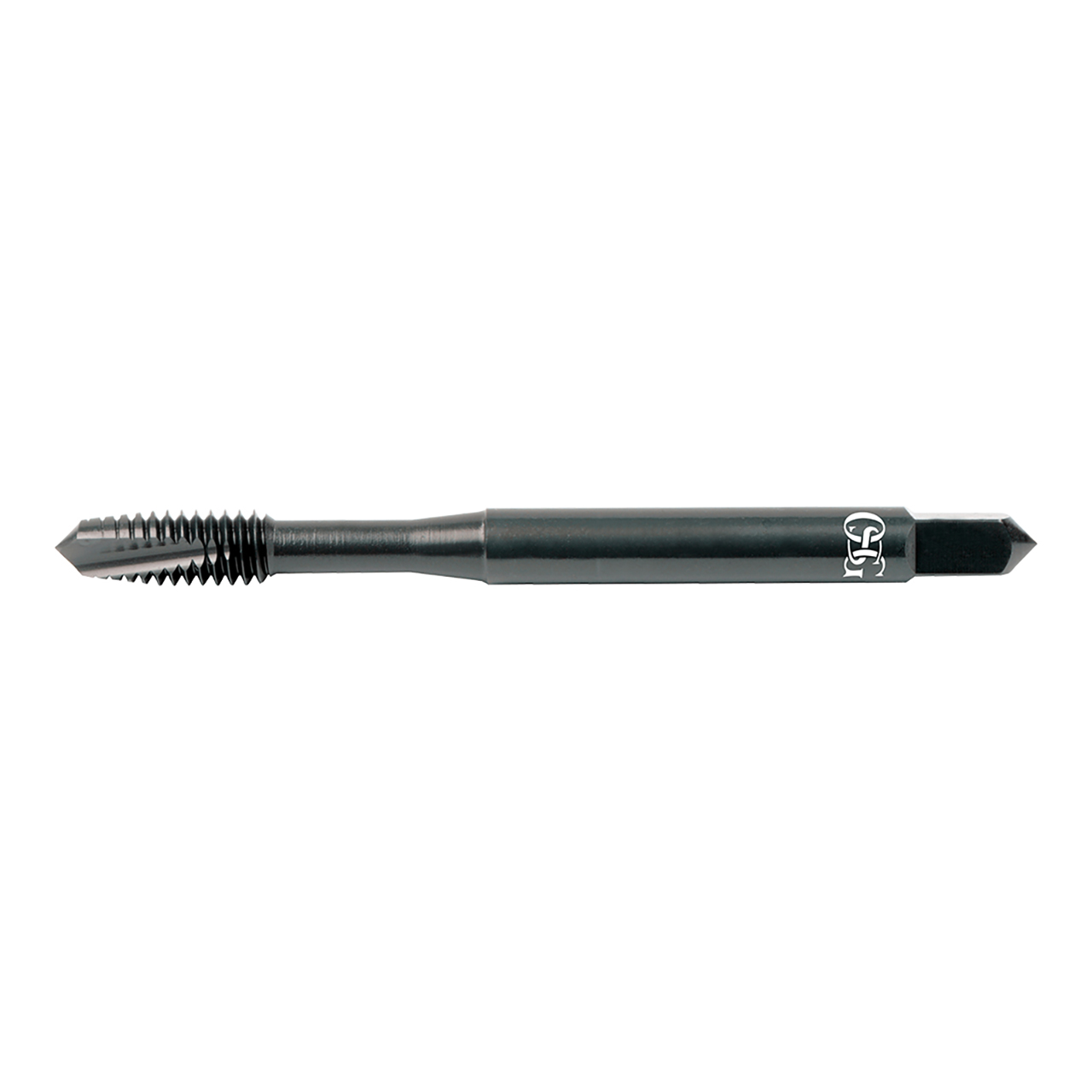

OSG 1111801301 | M M12.00x1.75mm Thread Size x 9.32mm Shank x 23.90mm Length x 152.40mm OAL Plug (4P) Chamfer D6 3 Flute Steam Oxide Coated HSS 11118 Spiral Flute Tap

$110.00 $49.50
(You save $60.50)
Brand:
OSG
Thread Size:
M12
Chamfer:
Plug (4P)
Thread Limit:
D6
Class of Fit:
4H, 6H
Number of Flutes:
3
Finish/Coating:
Steam Oxide
Flute Direction:
Right Hand
Material:
HSS
interval quantity:
1
SKU:
17996547
UPC:
Weight:
0.19 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 1111801301 | M M12.00x1.75mm Thread Size x 9.32mm Shank x 23.90mm Length x 152.40mm OAL Plug (4P) Chamfer D6 3 Flute Steam Oxide Coated HSS 11118 Spiral Flute Tap

General Purpose spiral point tap provides exceptional value for all general threading applications.

Features & Benefits:

  • HSS material: Increased wear resistance
  • Spiral Point: For through hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • Long Shank: Provides additional reach capability

Product Specifications
Manufacturer Part Number1111801301
Chamfer Length (Decimal Inch)0.276"
Major Diameter (mm)12.00mm
Neck Length (mm)34.90mm
Number of Flutes3
Overall Length (mm)152.40mm
Pitch (mm)1.75mm
Shank Diameter (mm)9.32mm
Square Length (mm)11.11mm
Square Width (mm)6.99mm
Maximum Tap Drill Size (mm)10.44mm
Minimum Tap Drill Size (mm)10.11mm
Thread Length (mm)23.90mm
Thread SizeM12
CoatingSteam Oxide
MaterialHSS
Series11118 Series
Product TypeSpiral Flute Tap

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
