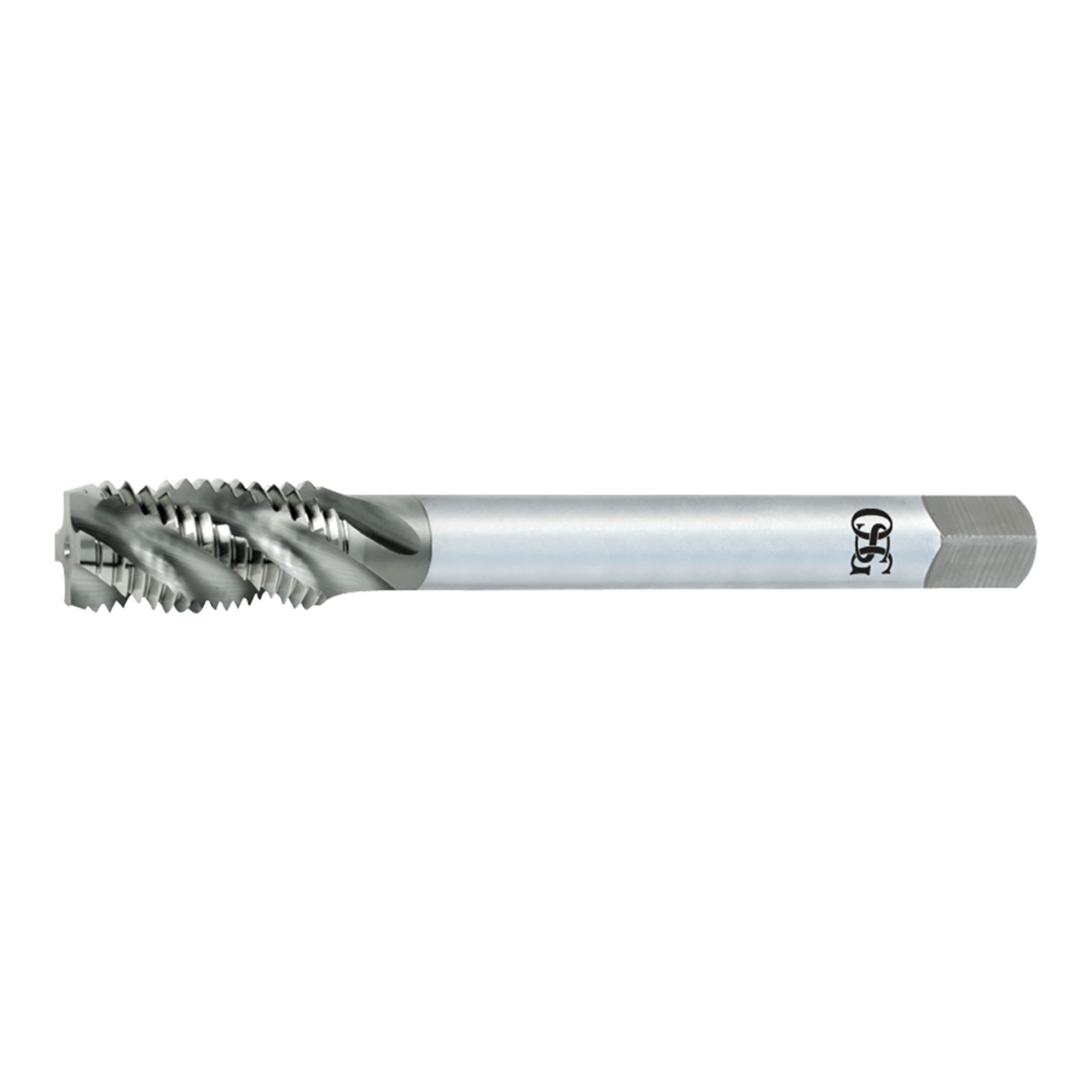

OSG 11650 | M M12.00x1.75mm Thread Size x 8.50mm Shank x 21.00mm Length x 82.00mm OAL Modified Bottom (2.5P) Chamfer OH2 3 Flute BRIGHT Coated HSSE 123 Spiral Flute Tap

$52.55 $23.65
(You save $28.90)
Brand:
OSG
Flute Direction:
Right Hand
Number of Flutes:
3
Overall Length (mm):
82.00mm
Material:
HSSE
Finish/Coating:
Bright
Thread Limit:
OH2
interval quantity:
1
SKU:
17996812
UPC:
Weight:
0.08 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 11650 | M M12.00x1.75mm Thread Size x 8.50mm Shank x 21.00mm Length x 82.00mm OAL Modified Bottom (2.5P) Chamfer OH2 3 Flute BRIGHT Coated HSSE 123 Spiral Flute Tap

General purpose premium spiral flute taps for a wide range of materials.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Slow spiral: Efficient chip evacuation
  • JIS Dimensions: Requires JIS Standard tap holder

Product Specifications
Manufacturer Part Number11650
Chamfer Length (Decimal Inch)0.172"
Chamfer TypeModified Bottom (2.5P)
Cutting DirectionRight Hand
Helix Angle (Degree)50 Degree
Helix DirectionRight Hand
List NameGENERAL PURPOSE EX-SFT
Major Diameter (mm)12.00mm
Neck Length (mm)48.00mm
Number of Flutes3
Overall Length (mm)82.00mm
Pitch (mm)1.75mm
Shank Diameter (mm)8.50mm
Square Length (mm)9.00mm
Square Width (mm)6.50mm
MaterialHSSE
CoatingBright
Tap Drill Size Maximum (mm)10.44mm
Tap Drill Size Minimum (mm)10.11mm
Thread Length (mm)21.00mm
Thread LimitOH2
Thread SizeM12
Thread TypeM
Series123
Product TypeSpiral Flute Tap
