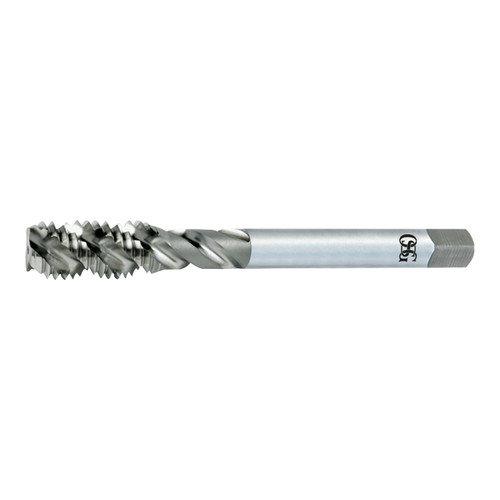

General purpose premium spiral flute taps for a wide range of materials.
Features & Benefits:
- HSS material: Increased wear resistance
- Spiral Flute: For blind hole applications
- Slow spiral: Efficient chip evacuation
- Long Shank: For long reach or deep hole applications
Product Specifications
| Manufacturer Part Number | 1298300 |
| Chamfer Length (Decimal Inch) | 0.054" |
| Chamfer Type | Bottom (1.5P) |
| Cutting Direction | Right Hand |
| Helix Angle (Degree) | 50 Degree |
| Helix Direction | Right Hand |
| List Name | GENERAL PURPOSE-LS-SFT |
| Major Diameter (Decimal Inch) | 0.250" |
| Neck Length (Decimal Inch) | 1.007" |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 6.000" |
| Shank Diameter (Decimal Inch) | 0.255" |
| Square Length (Decimal Inch) | 0.313" |
| Square Width (Decimal Inch) | 0.191" |
| Material | HSS |
| Coating | Bright |
| Tap Drill Size Maximum (Decimal Inch) | 0.220" |
| Tap Drill Size Minimum (Decimal Inch) | 0.211" |
| Thread Length (Decimal Inch) | 0.645" |
| Thread Limit | H3 |
| Thread Size (Inch) | 1/4" |
| Thread Type | UNF |
| Thread Per Inch (TPI) | 28 TPI |
| Series | 918 |
| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
