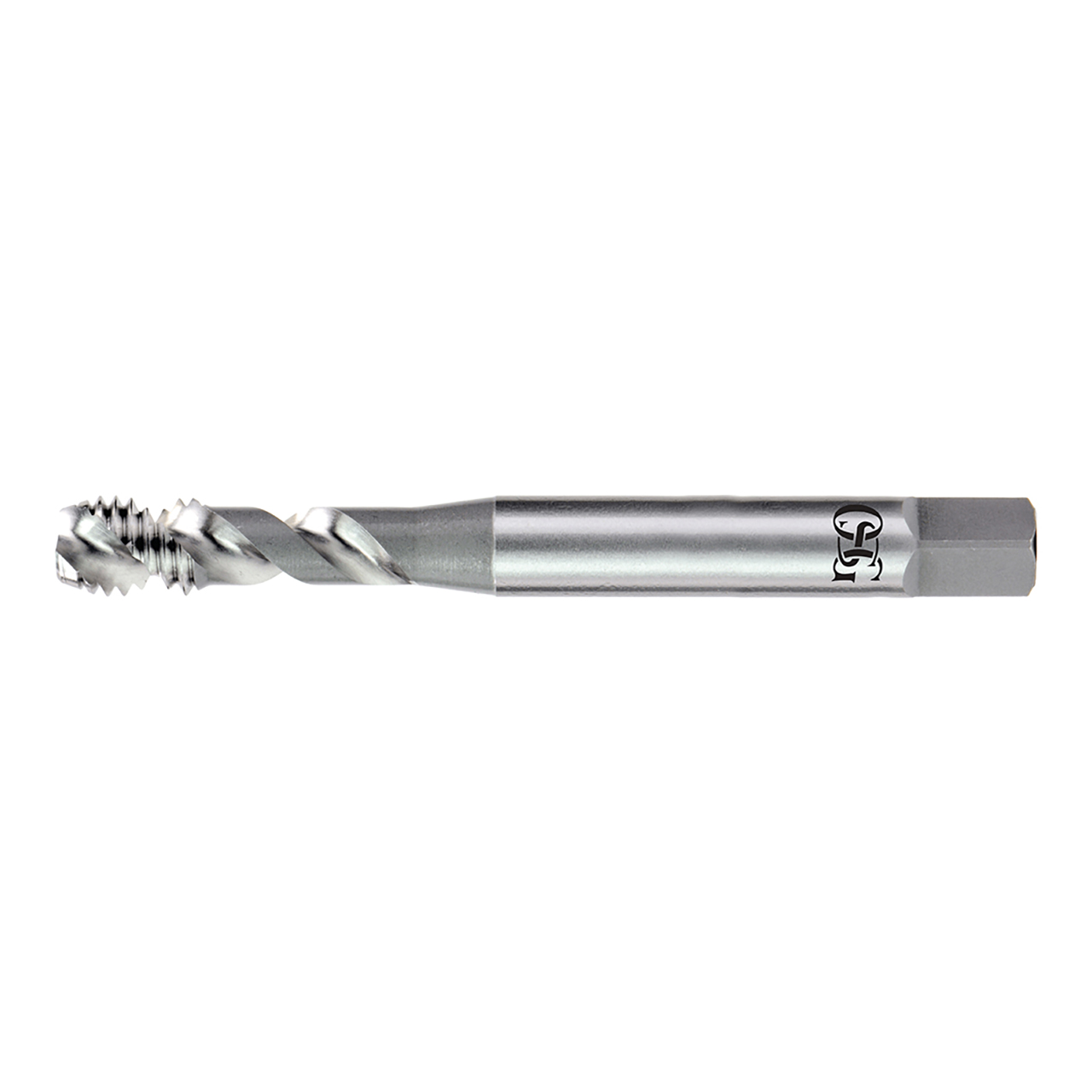

OSG 1301900103 | HY-PRO #2- 56 Thread Size x 0.141" Shank x 0.437" Thread Length x 1.772" OAL UNC H2 Modified Bottom (2.5P) Chamfer Type 2 Flute Right Hand Nitride Coated HSSE 13019 Spiral Flute Tap

$61.99 $37.81
(You save $24.18)
Brand:
OSG
Overall Length (Decimal Inch):
1.7720"
Number of Flutes:
2
Material:
HSSE
Finish/Coating:
Nitride
Flute Direction:
Right Hand
interval quantity:
1
SKU:
18005824
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 1301900103 | HY-PRO #2- 56 Thread Size x 0.141" Shank x 0.437" Thread Length x 1.772" OAL UNC H2 Modified Bottom (2.5P) Chamfer Type 2 Flute Right Hand Nitride Coated HSSE 13019 Spiral Flute Tap

HY-PRO AL DIN is a premium spiral flute tap for Alloy and Cast Aluminum.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Nitride surface treatment: Extra surface hardness for longer life
  • DIN Overall Length: Provides greater reach capability

Product Specifications
Manufacturer Part Number1301900103
Chamfer Length (Decimal Inch)0.045"
Major Diameter (Decimal Inch)0.086"
Number of Flutes2
Overall Length (Decimal Inch)1.772"
Shank Diameter (Decimal Inch)0.141"
Square Length (Decimal Inch)0.188"
Square Width (Decimal Inch)0.110"
Maximum Tap Drill Size (Decimal Inch)0.074"
Minimum Tap Drill Size (Decimal Inch)0.067"
Thread Length (Decimal Inch)0.437"
Thread Size NumberNo. 2
CoatingNitride
MaterialHSSE
Helix DirectionRight Hand
Helix Angle (Degree)50 Degree
Series13019 Series
Product TypeSpiral Flute Tap
