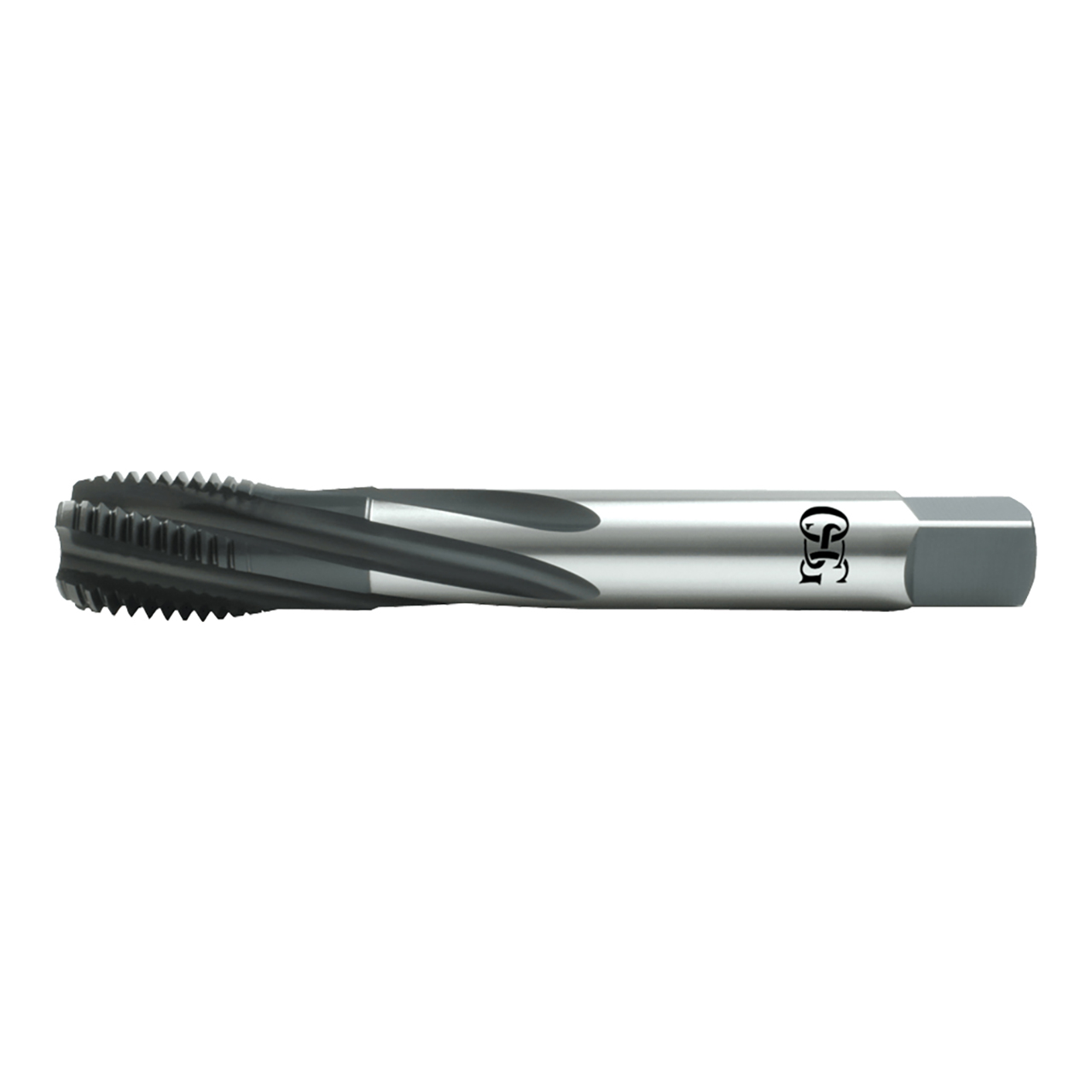

OSG 1311601601 | HY-PRO TAP M M20.00x2.50mm Thread Size x 16.56mm Shank x 2.00mm Length x 14.00mm OAL Modified Bottom (2.5P) Chamfer D18 4 Flute Steam Oxide Coated HSSE 13116 Spiral Flute Tap

OSG 1311601601 | HY-PRO TAP M M20.00x2.50mm Thread Size x 16.56mm Shank x 2.00mm Length x 14.00mm OAL Modified Bottom (2.5P) Chamfer D18 4 Flute Steam Oxide Coated HSSE 13116 Spiral Flute Tap

SKU: 17997570 Weight: 0.44 LBS Minimum Purchase: 1 unit
UPC:
$248.18 $151.39
(You save $96.79)
Shipping: Calculated at Checkout

About This Item

HY-PRO HXL-W Taps Horizontal Tapping Solutions for the Wind Energy Industry.


Product Specifications
Manufacturer Part Number1311601601
Chamfer Length (Decimal Inch)0.246"
Chamfer TypeModified Bottom (2.5P)
Cutting DirectionRight Hand
Helix Angle (Degree)15 Degree
Helix DirectionRight Hand
List NameHXL-W-SFT
Major Diameter (mm)20.00mm
Neck Length (mm)73.00mm
Number of Flutes4
Overall Length (mm)140.00mm
Pitch (mm)2.50mm
Shank Diameter (mm)16.56mm
Square Length (mm)17.46mm
Square Width (mm)12.42mm
MaterialHSSE
CoatingSteam Oxide
Tap Drill Size Maximum (mm)17.74mm
Tap Drill Size Minimum (mm)17.29mm
Thread Length (mm)20.00mm
Thread LimitD18
Thread SizeM20
Thread TypeM
Series13116
Product TypeSpiral Flute Tap
