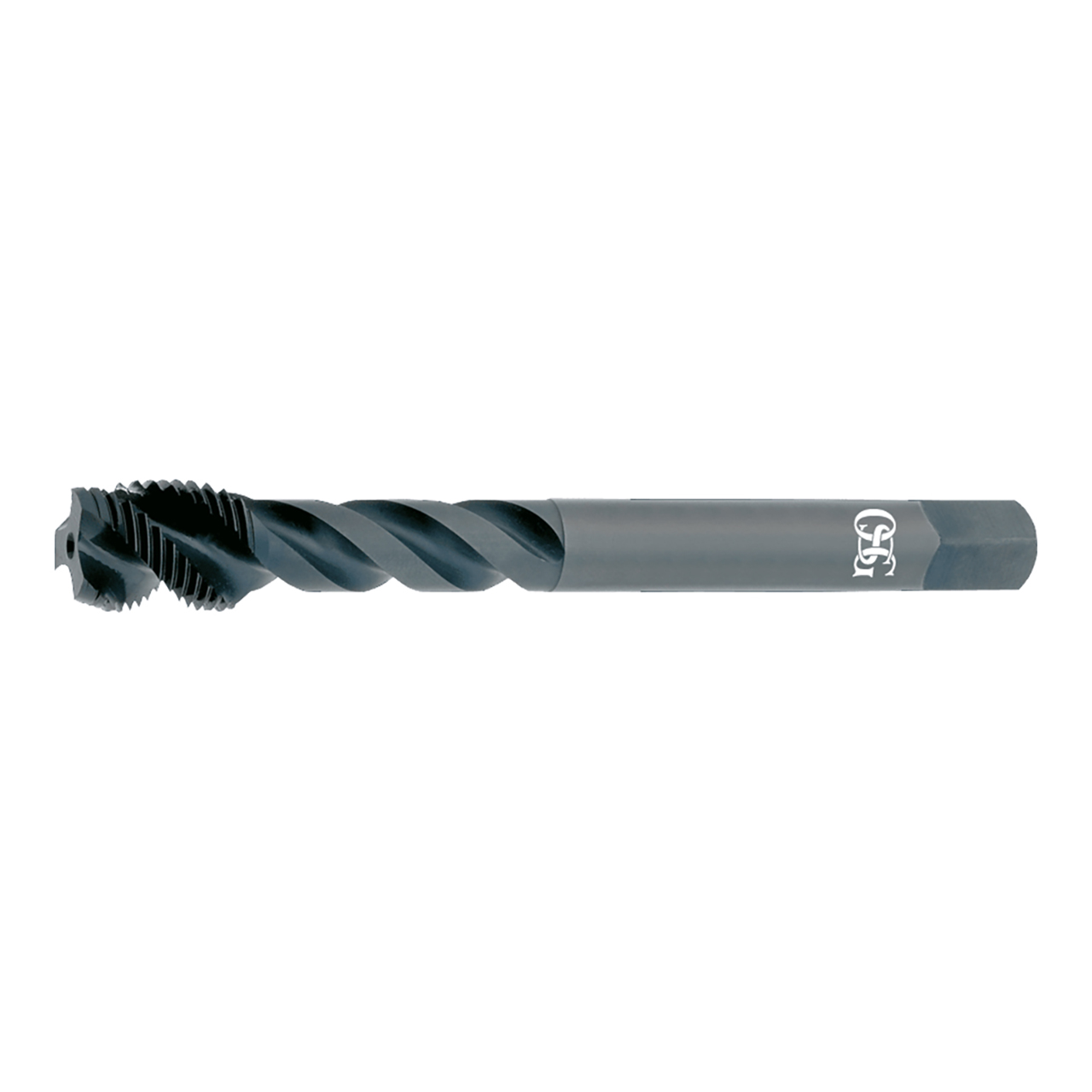

OSG 2293601 | HY-PRO TAP M M20.00x2.50mm Thread Size x 16.56mm Shank x 2.00mm Length x 14.00mm OAL Modified Bottom (2.5P) Chamfer 4 Flute Steam Oxide Coated HSSE 229 Spiral Flute Tap

OSG 2293601 | HY-PRO TAP M M20.00x2.50mm Thread Size x 16.56mm Shank x 2.00mm Length x 14.00mm OAL Modified Bottom (2.5P) Chamfer 4 Flute Steam Oxide Coated HSSE 229 Spiral Flute Tap

SKU: 15030382 Weight: 0.45 LBS Minimum Purchase: 1 unit
UPC:
$328.98 $200.68
(You save $128.30)
Shipping: Calculated at Checkout

About This Item

HY-PRO DIN is the original "Do it All" premium spiral flute tap for a wide range of materials.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Steam Oxide surface treatment: S/O increases mechanical lubricity
  • DIN Overall Length: Provides greater reach capability

Product Specifications
Manufacturer Part Number2293601
Chamfer Length (Decimal Inch)0.246"
Major Diameter (mm)20.00mm
Neck Length (mm)61.80mm
Number of Flutes4
Overall Length (mm)140.00mm
Pitch (mm)2.50mm
Shank Diameter (mm)16.56mm
Square Length (mm)17.46mm
Square Width (mm)12.42mm
Maximum Tap Drill Size (mm)17.74mm
Minimum Tap Drill Size (mm)17.29mm
Thread Length (mm)20.00mm
Thread SizeM20
CoatingSteam Oxide
MaterialHSSE
Helix DirectionRight Hand
Helix Angle (Degree)45 Degree
Series229 Series
Product TypeSpiral Flute Tap
