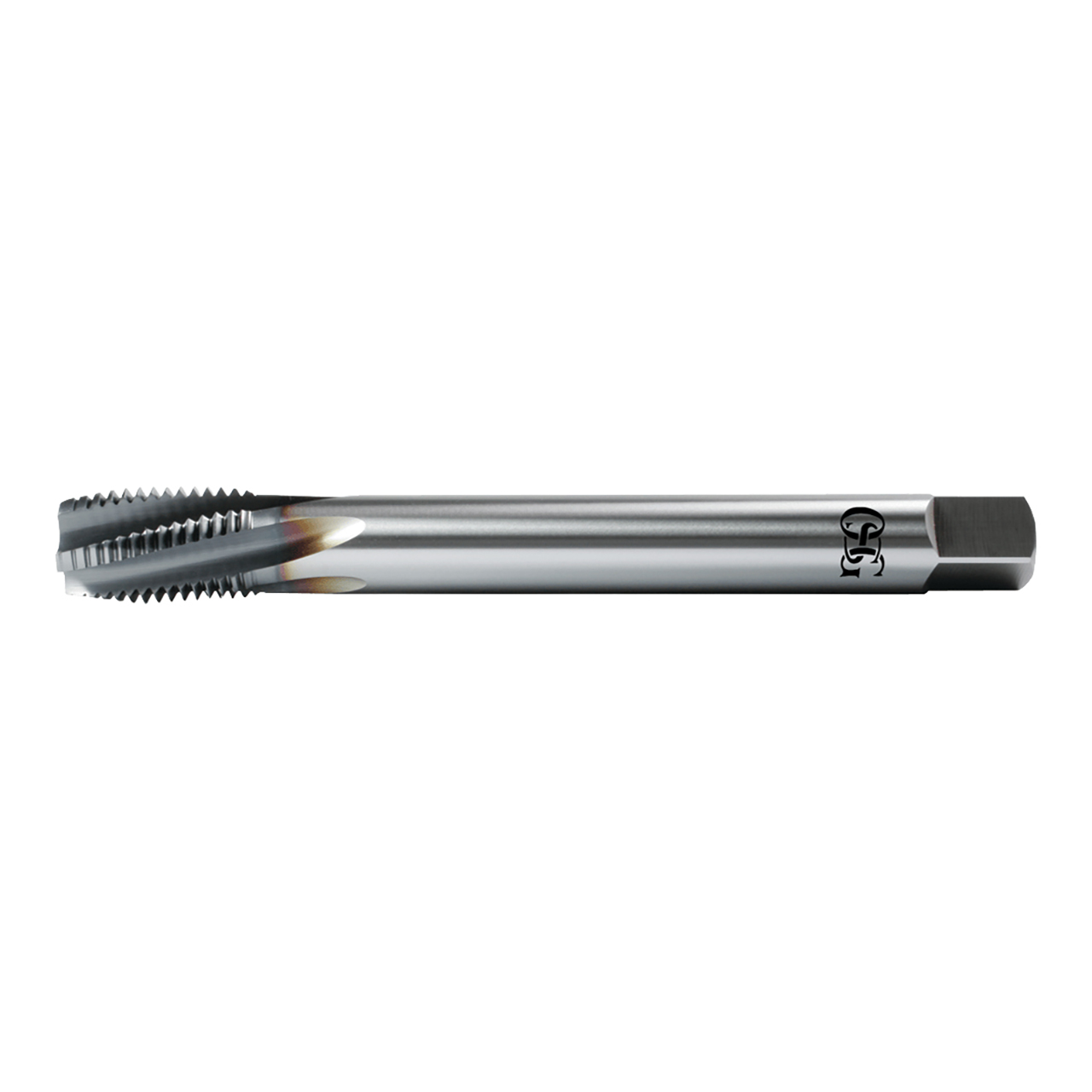

OSG 1311800908 | HY-PRO TAP M M30.00x3.50mm Thread Size x 25.93mm Shank x 42.00mm Length x 25.00mm OAL Plug (5P) Chamfer D10 5 Flute V Coated HSSE 13118 Spiral Flute Tap

OSG 1311800908 | HY-PRO TAP M M30.00x3.50mm Thread Size x 25.93mm Shank x 42.00mm Length x 25.00mm OAL Plug (5P) Chamfer D10 5 Flute V Coated HSSE 13118 Spiral Flute Tap

SKU: 17997603 Weight: 2.00 LBS Minimum Purchase: 1 unit
UPC:
$1,119.27 $682.76
(You save $436.51)
Shipping: Free Shipping

About This Item

HY-PRO RXL-W is designed for large threading applications in ductile castings, such as turbine housings in the Wind Energy Industry.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Point: For through hole applications
  • OSG V-Coating: Increased hardness, lubricity & wear resistance
  • DIN overall length & extended overall length: Provides greater reach capability

Product Specifications
Manufacturer Part Number1311800908
Chamfer Length (Decimal Inch)0.689"
Chamfer TypePlug (5P)
Cutting DirectionRight Hand
Helix Angle (Degree)15 Degree
Helix DirectionLeft Hand
List NameRXL-W-RFT
Major Diameter (mm)30.00mm
Number of Flutes5
Overall Length (mm)250.00mm
Pitch (mm)3.50mm
Shank Diameter (mm)25.93mm
Square Length (mm)25.40mm
Square Width (mm)19.46mm
MaterialHSSE
CoatingV
Tap Drill Size Maximum (mm)26.77mm
Tap Drill Size Minimum (mm)26.21mm
Thread Length (mm)42.00mm
Thread LimitD10
Thread SizeM30
Thread TypeM
Series13118
Product TypeSpiral Flute Tap
