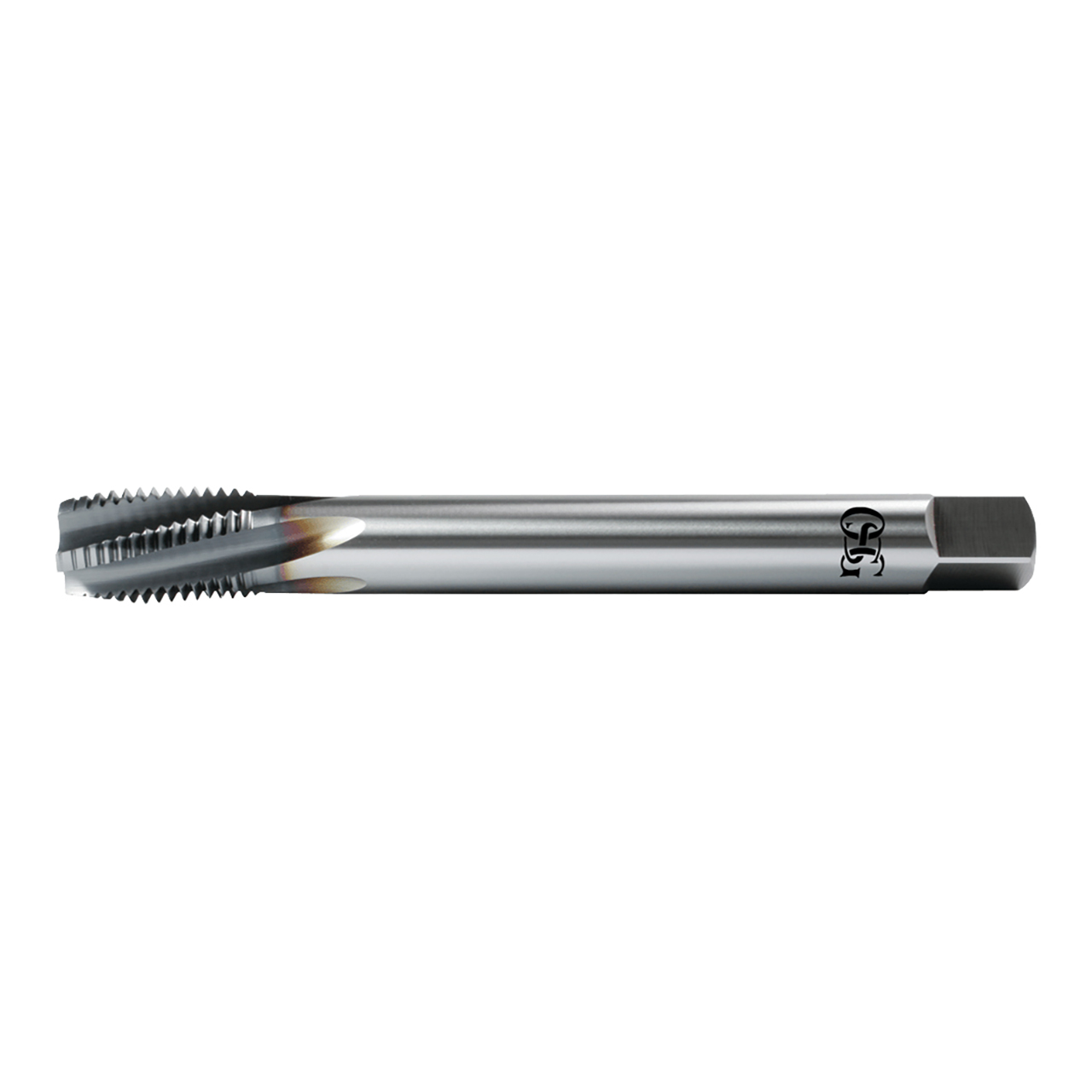

HY-PRO RXL-W is designed for large threading applications in ductile castings, such as turbine housings in the Wind Energy Industry.
Features & Benefits:
| Manufacturer Part Number | 1311801108 |
| Chamfer Length (Decimal Inch) | 0.689" |
| Chamfer Type | Plug (5P) |
| Cutting Direction | Right Hand |
| Helix Angle (Degree) | 15 Degree |
| Helix Direction | Left Hand |
| List Name | RXL-W-RFT |
| Major Diameter (mm) | 33.00mm |
| Number of Flutes | 5 |
| Overall Length (mm) | 250.00mm |
| Pitch (mm) | 3.50mm |
| Shank Diameter (mm) | 28.14mm |
| Square Length (mm) | 26.99mm |
| Square Width (mm) | 21.11mm |
| Material | HSSE |
| Coating | V |
| Tap Drill Size Maximum (mm) | 29.77mm |
| Tap Drill Size Minimum (mm) | 29.21mm |
| Thread Length (mm) | 42.00mm |
| Thread Limit | D10 |
| Thread Size | M33 |
| Thread Type | M |
| Series | 13118 |
| Product Type | Spiral Flute Tap |
