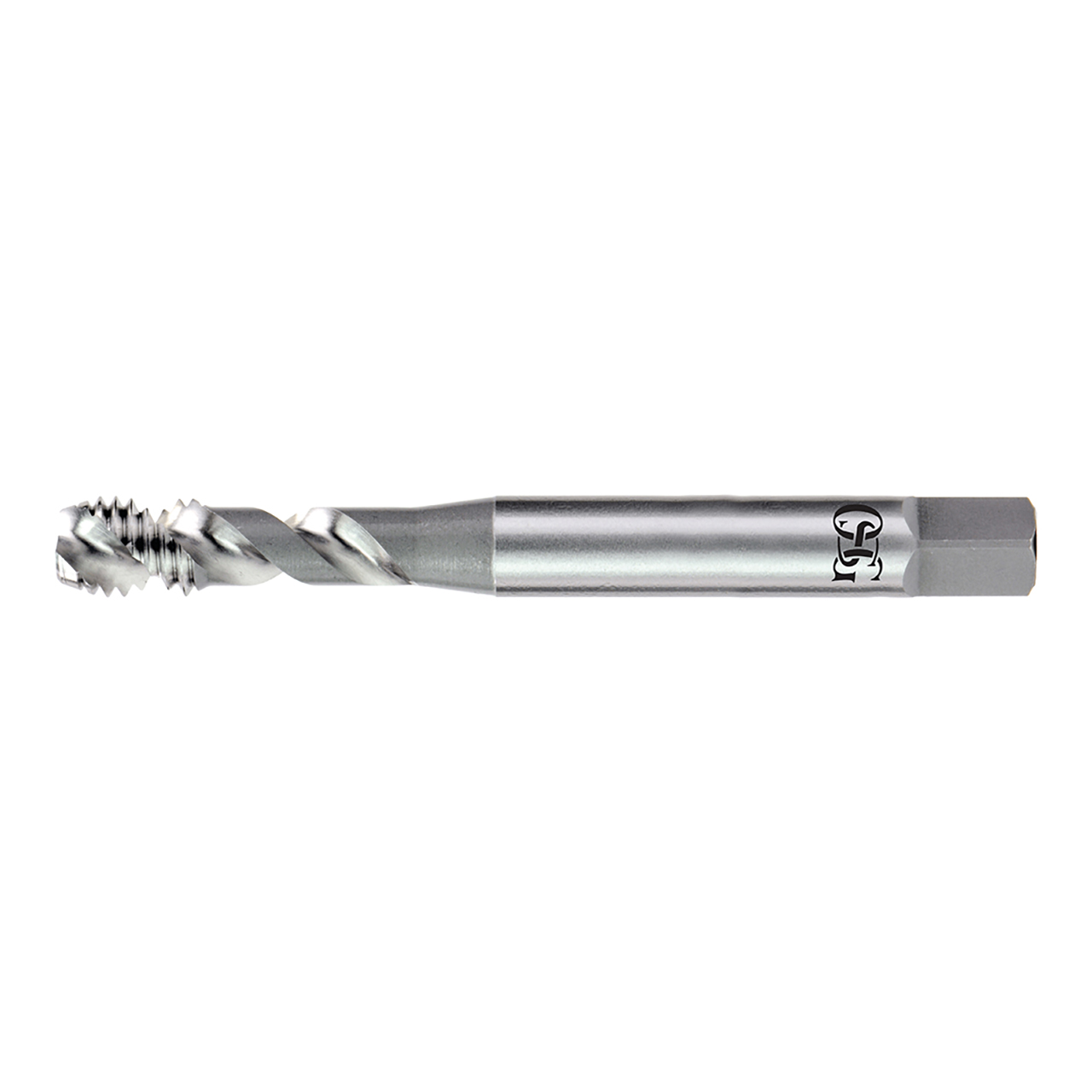

OSG 1311900103 | HY-PRO TAP M M3.00x0.50mm Thread Size x 3.58mm Shank x 5.00mm Length x 56.00mm OAL Modified Bottom (2.5P) Chamfer D3 3 Flute Nitride Coated HSSE 13119 Spiral Flute Tap

OSG 1311900103 | HY-PRO TAP M M3.00x0.50mm Thread Size x 3.58mm Shank x 5.00mm Length x 56.00mm OAL Modified Bottom (2.5P) Chamfer D3 3 Flute Nitride Coated HSSE 13119 Spiral Flute Tap

SKU: 17997620 Weight: 0.01 LBS Minimum Purchase: 1 unit
UPC:
$54.88 $33.48
(You save $21.40)
Shipping: Calculated at Checkout

About This Item

HY-PRO AL DIN is a premium spiral flute tap for Alloy and Cast Aluminum.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Nitride surface treatment: Extra surface hardness for longer life
  • DIN Overall Length: Provides greater reach capability

Product Specifications
Manufacturer Part Number1311900103
Chamfer Length (Decimal Inch)0.049"
Chamfer TypeModified Bottom (2.5P)
Cutting DirectionRight Hand
Helix Angle (Degree)50 Degree
Helix DirectionRight Hand
List NameAL-DIN EX-AL-SFT
Major Diameter (mm)3.00mm
Neck Length (mm)19.30mm
Number of Flutes3
Overall Length (mm)56.00mm
Pitch (mm)0.50mm
Shank Diameter (mm)3.58mm
Square Length (mm)4.76mm
Square Width (mm)2.79mm
MaterialHSSE
CoatingNitride
Tap Drill Size Maximum (mm)2.60mm
Tap Drill Size Minimum (mm)2.46mm
Thread Length (mm)5.00mm
Thread LimitD3
Thread SizeM3
Thread TypeM
Series13119
Product TypeSpiral Flute Tap
