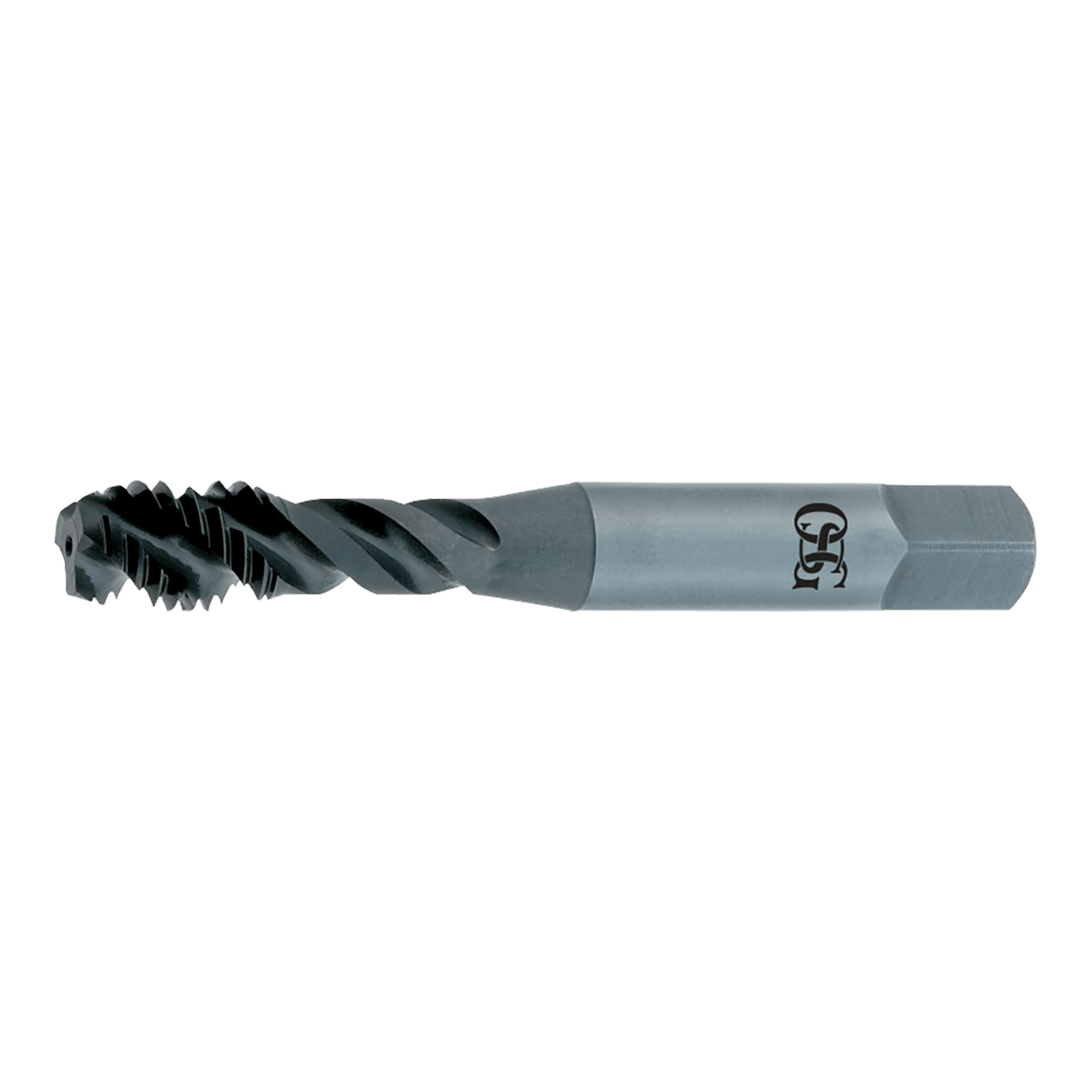

OSG 2990400 | HY-PRO TAP M M3.00x0.50mm Thread Size x 3.58mm Shank x 4.08mm Length x 49.20mm OAL Modified Bottom (2.5P) Chamfer D3 3 Flute BRIGHT Coated HSSE 299 Spiral Flute Tap

OSG 2990400 | HY-PRO TAP M M3.00x0.50mm Thread Size x 3.58mm Shank x 4.08mm Length x 49.20mm OAL Modified Bottom (2.5P) Chamfer D3 3 Flute BRIGHT Coated HSSE 299 Spiral Flute Tap

SKU: 18004322 Weight: 0.01 LBS Minimum Purchase: 1 unit
UPC:
$48.10 $29.34
(You save $18.76)
Shipping: Calculated at Checkout

About This Item

HY-PRO is the original "Do it All" premium spiral flute tap for a wide range of materials.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiCN coating: Improves wear resistance for extended tap life

Product Specifications
Manufacturer Part Number2990400
Chamfer Length (Decimal Inch)0.049"
Chamfer TypeModified Bottom (2.5P)
Cutting DirectionRight Hand
Helix Angle (Degree)45 Degree
Helix DirectionRight Hand
List NameSFT
Major Diameter (mm)3.00mm
Neck Length (mm)16.00mm
Number of Flutes3
Overall Length (mm)49.20mm
Pitch (mm)0.50mm
Shank Diameter (mm)3.58mm
Square Length (mm)4.76mm
Square Width (mm)2.79mm
MaterialHSSE
CoatingBright
Tap Drill Size Maximum (mm)2.60mm
Tap Drill Size Minimum (mm)2.46mm
Thread Length (mm)4.08mm
Thread LimitD3
Thread SizeM3
Thread TypeM
Series299
Product TypeSpiral Flute Tap
