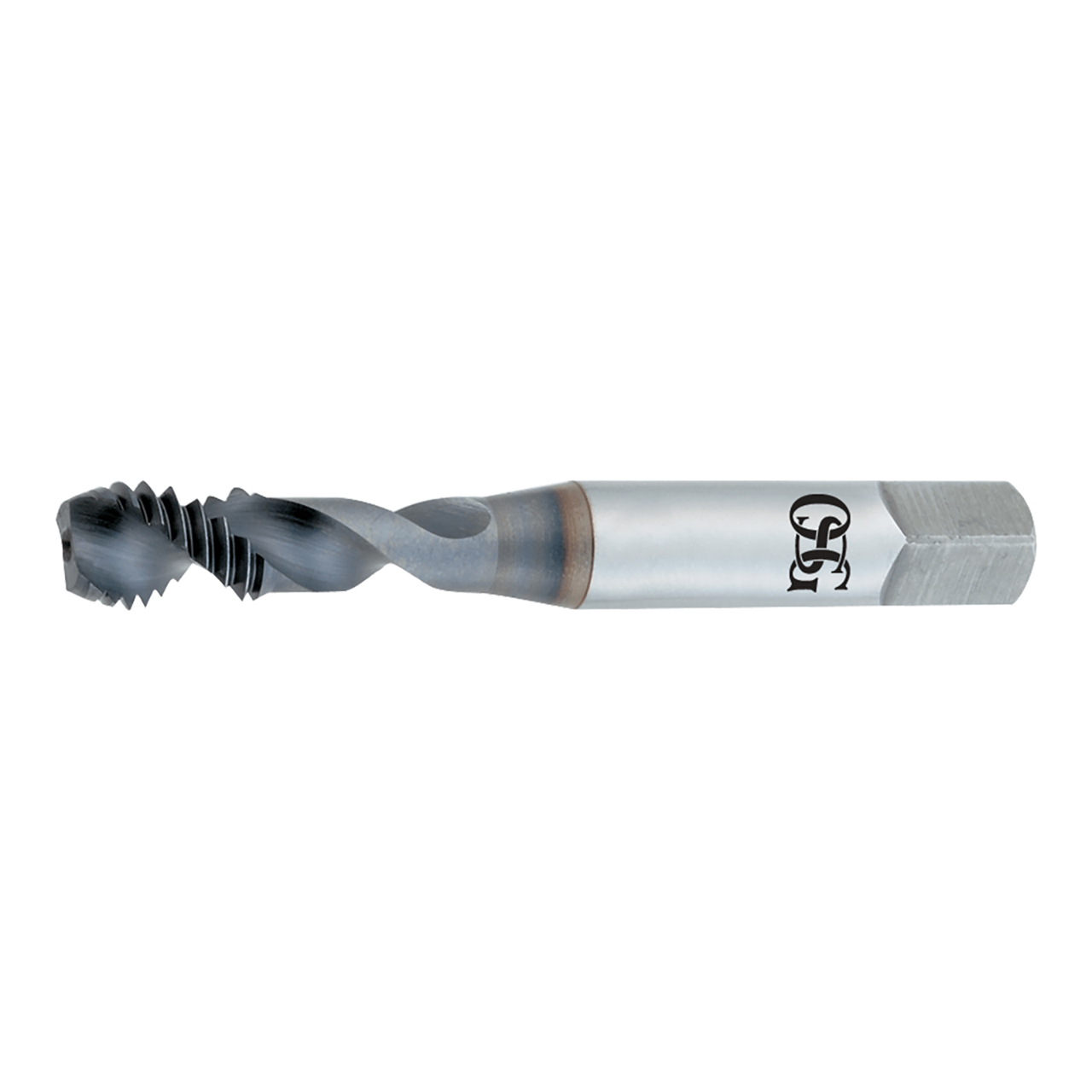

OSG 2963300 | HY-PRO TAP M M3.00x0.50mm Thread Size x 3.58mm Shank x 4.10mm Length x 49.20mm OAL Modified Bottom (2P) Chamfer D3 2 Flute BRIGHT Coated HSSE 296 Spiral Flute Tap

OSG 2963300 | HY-PRO TAP M M3.00x0.50mm Thread Size x 3.58mm Shank x 4.10mm Length x 49.20mm OAL Modified Bottom (2P) Chamfer D3 2 Flute BRIGHT Coated HSSE 296 Spiral Flute Tap

SKU: 18004251 Weight: 0.01 LBS Minimum Purchase: 1 unit
UPC:
$48.17 $29.38
(You save $18.79)
Shipping: Calculated at Checkout

About This Item

HY-PRO AL is a premium spiral flute tap for Alloy and Cast Aluminum.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Slow spiral: Efficient chip evacuation
  • Inch & Metric: Complete Offering

Product Specifications
Manufacturer Part Number2963300
Chamfer Length (Decimal Inch)0.039"
Chamfer TypeModified Bottom (2P)
Cutting DirectionRight Hand
Helix Angle (Degree)50 Degree
Helix DirectionRight Hand
List NameAL-SFT
Major Diameter (mm)3.00mm
Neck Length (mm)16.00mm
Number of Flutes2
Overall Length (mm)49.20mm
Pitch (mm)0.50mm
Shank Diameter (mm)3.58mm
Square Length (mm)4.76mm
Square Width (mm)2.79mm
MaterialHSSE
CoatingBright
Tap Drill Size Maximum (mm)2.60mm
Tap Drill Size Minimum (mm)2.46mm
Thread Length (mm)4.10mm
Thread LimitD3
Thread SizeM3
Thread TypeM
Series296
Product TypeSpiral Flute Tap
