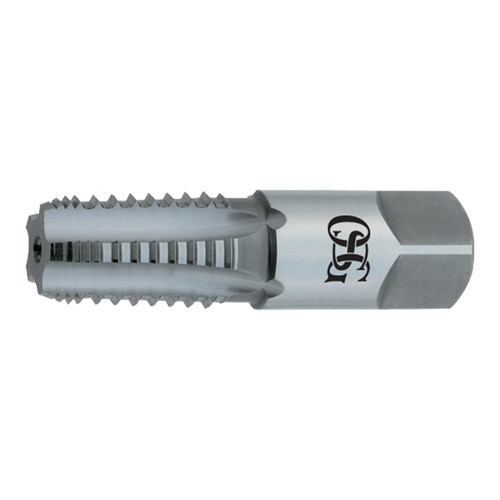

OSG 1315300 | | NPT, ANPT 1/4" - 18 Thread Size x 0.563" Shank x 1.063" Length x 2.437" OAL 5 Flute BRIGHT Coated HSS 108G Standard Pipe Tap

OSG 1315300 | | NPT, ANPT 1/4" - 18 Thread Size x 0.563" Shank x 1.063" Length x 2.437" OAL 5 Flute BRIGHT Coated HSS 108G Standard Pipe Tap

SKU: 15029214 Weight: 0.13 LBS Minimum Purchase: 1 unit
UPC:
$99.14 $44.61
(You save $54.53)
Shipping: Calculated at Checkout

About This Item

General Purpose spiral point tap series that provides exceptional value for all general threading applications.

Features & Benefits:

  • HSS material: Increased wear resistance
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiN, TiCN coating: Improves wear resistance for extended tap life
  • ANPT, NPT, NPTF: For standard and dry seal tapered pipe thread applications

Product Specifications
Manufacturer Part Number1315300
Cutting DirectionRight Hand
Interrupted ThreadYes
List NameGENERAL PURPOSE-NPT/NPTF/ANPT
Major Diameter (Decimal Inch)0.250"
Neck Length (Decimal Inch)1.319"
Number of Flutes5
Overall Length (Decimal Inch)2.437"
Shank Diameter (Decimal Inch)0.563"
Square Length (Decimal Inch)0.438"
Square Width (Decimal Inch)0.421"
MaterialHSS
CoatingBright
Tap Drill Size Minimum (Decimal Inch)0.438"
Thread Length (Decimal Inch)1.063"
Thread Size (Inch)1/4"
Thread TypeNPT, ANPT
Thread Per Inch (TPI)18 TPI
Series108G
Product TypeInterrupted Thread Pipe Tap
