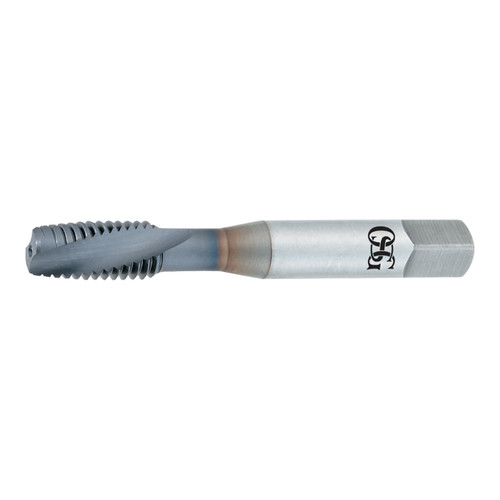

HY-PRO SYNCHRO AL is a premium spiral flute tap for synchronized tapping through holes in Alloy and Cast Aluminum.
Features & Benefits:
- HSSE material: Increased wear resistance
- Left Hand Spiral: For through hole applications
- OSG V-Coating: Increased hardness, lubricity & wear resistance
- Extra Thread Relief: Eliiminates friction to enable High Speed tapping
Product Specifications
| Manufacturer Part Number | 1315900608 |
| Chamfer Length (Decimal Inch) | 0.295" |
| Chamfer Type | Plug (6P) |
| Class of Fit | 6H |
| Cutting Direction | Right Hand |
| Helix Angle (Degree) | 20 Degree |
| Helix Direction | Left Hand |
| List Name | SYNCHRO AL US-AL-RFT |
| Major Diameter (mm) | 10.00mm |
| Neck Length (mm) | 31.80mm |
| Number of Flutes | 2 |
| Overall Length (mm) | 74.60mm |
| Pitch (mm) | 1.25mm |
| Shank Diameter (mm) | 9.68mm |
| Square Length (mm) | 11.11mm |
| Square Width (mm) | 7.26mm |
| Material | HSSE |
| Coating | V |
| Tap Drill Size Maximum (mm) | 8.91mm |
| Tap Drill Size Minimum (mm) | 8.65mm |
| Thread Length (mm) | 18.00mm |
| Thread Size | M10 |
| Thread Type | MF |
| Series | 13159 |
| Product Type | Spiral Flute Tap |
