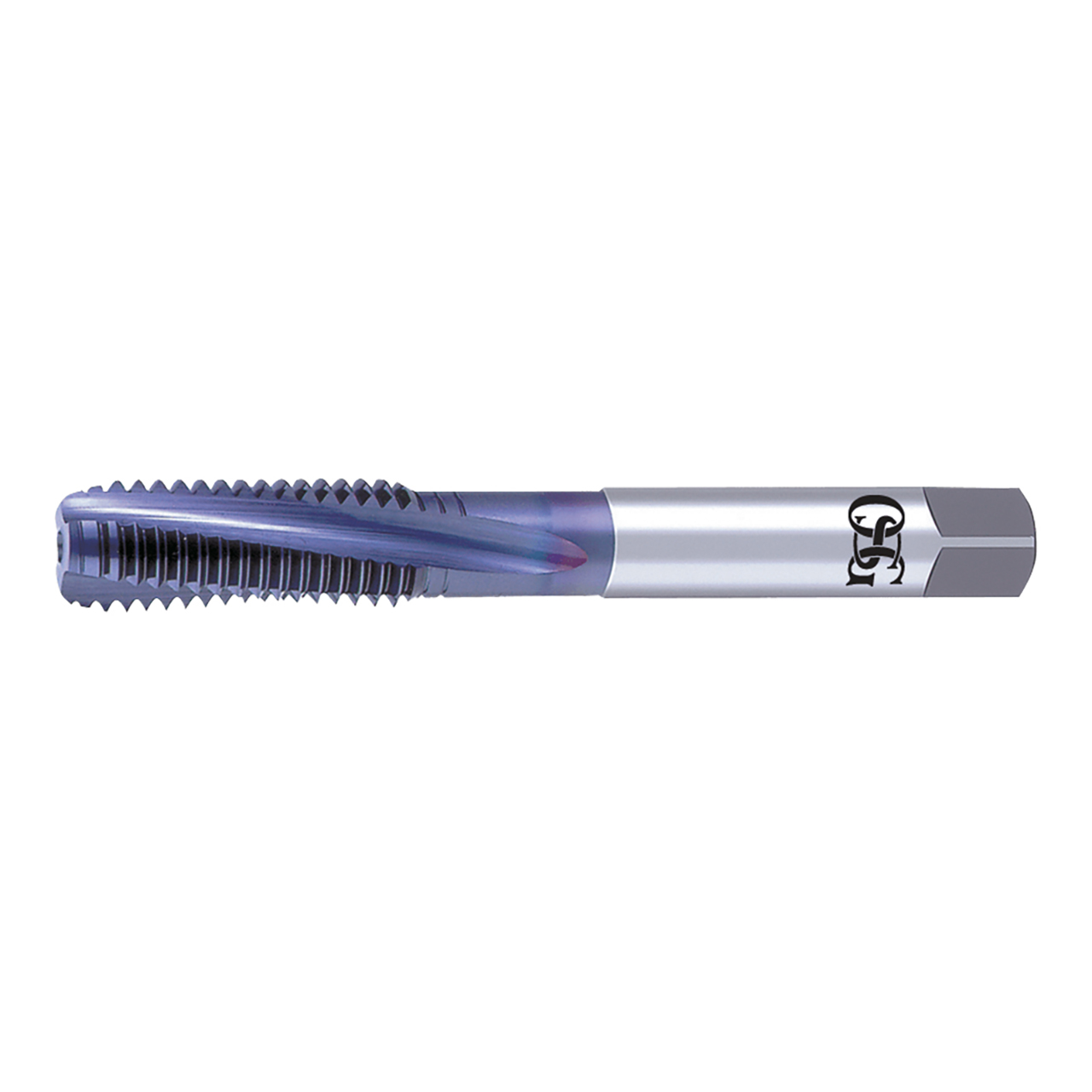

OSG 1316210408 | EXOTAP M M6.00x1.00mm Thread Size x 6.48mm Shank x 25.40mm Length x 63.50mm OAL Modified Bottom (2.5P) Chamfer D5 3 Flute V Coated VC-10 345TI Spiral Flute Tap

OSG 1316210408 | EXOTAP M M6.00x1.00mm Thread Size x 6.48mm Shank x 25.40mm Length x 63.50mm OAL Modified Bottom (2.5P) Chamfer D5 3 Flute V Coated VC-10 345TI Spiral Flute Tap

SKU: 17997750 Weight: 0.03 LBS Minimum Purchase: 1 unit
UPC:
$71.52 $66.52
(You save $5.00)
Shipping: Calculated at Checkout

About This Item

EXOTAP VC-10 Ti is the premium solution for Titanium alloys and Heat Resistant Super Alloys.

Features & Benefits:

  • Premium Powdered Metal VC-10 substrate: Increased hardness for longer life
  • Spiral Flute: For through hole applications
  • OSG V-Coating: Increased hardness, lubricity & wear resistance
  • DIN Overall Length: Provides greater reach capability

Product Specifications
Manufacturer Part Number1316210408
Chamfer Length (Decimal Inch)0.098"
Chamfer TypeModified Bottom (2.5P)
Cutting DirectionRight Hand
Helix Angle (Degree)10 Degree
Helix DirectionRight Hand
List NameVC-10 V-Ti-SFT
Major Diameter (mm)6.00mm
Number of Flutes3
Overall Length (mm)63.50mm
Pitch (mm)1.00mm
Shank Diameter (mm)6.48mm
Square Length (mm)7.94mm
Square Width (mm)4.85mm
MaterialVC-10
CoatingV
Tap Drill Size Maximum (mm)5.15mm
Tap Drill Size Minimum (mm)4.92mm
Thread Length (mm)25.40mm
Thread LimitD5
Thread SizeM6
Thread TypeM
Series345TI
Product TypeSpiral Flute Tap
