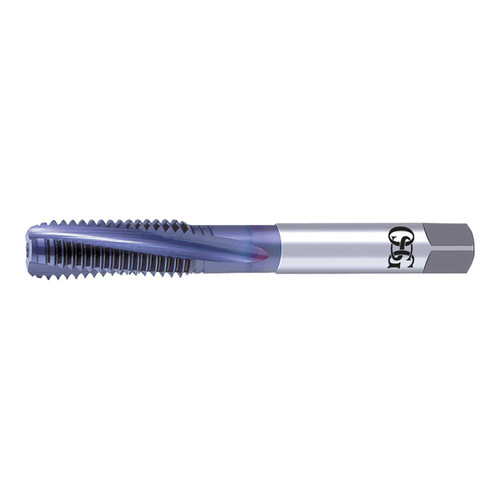

OSG 1705808 | EXOTAP M M6.00x1.00mm Thread Size x 6.48mm Shank x 8.00mm Length x 63.50mm OAL Modified Bottom (2.5P) Chamfer D5 3 Flute V Coated VC-10 345 Spiral Flute Tap

OSG 1705808 | EXOTAP M M6.00x1.00mm Thread Size x 6.48mm Shank x 8.00mm Length x 63.50mm OAL Modified Bottom (2.5P) Chamfer D5 3 Flute V Coated VC-10 345 Spiral Flute Tap

SKU: 18002348 Weight: 0.03 LBS Minimum Purchase: 1 unit
UPC:
$59.14 $55.00
(You save $4.14)
Shipping: Calculated at Checkout

About This Item

EXOTAP VC-10 is the premium solution for tapping in difficult to machine materials.

Features & Benefits:

  • Premium Powdered Metal VC-10 substrate: Increased hardness for longer life
  • Spiral Flute: For blind hole applications
  • Steam Oxide surface treatment: S/O increases mechanical lubricity
  • OSG V-Coating: Increased hardness, lubricity & wear resistance

Product Specifications
Manufacturer Part Number1705808
Chamfer Length (Decimal Inch)0.098"
Major Diameter (mm)6.00mm
Neck Length (mm)25.40mm
Number of Flutes3
Overall Length (mm)63.50mm
Pitch (mm)1.00mm
Shank Diameter (mm)6.48mm
Square Length (mm)7.94mm
Square Width (mm)4.85mm
Maximum Tap Drill Size (mm)5.15mm
Minimum Tap Drill Size (mm)4.92mm
Thread Length (mm)8.00mm
Thread SizeM6
CoatingV
MaterialVC-10
Helix DirectionRight Hand
Helix Angle (Degree)15 Degree
Series345 Series
Product TypeSpiral Flute Tap
