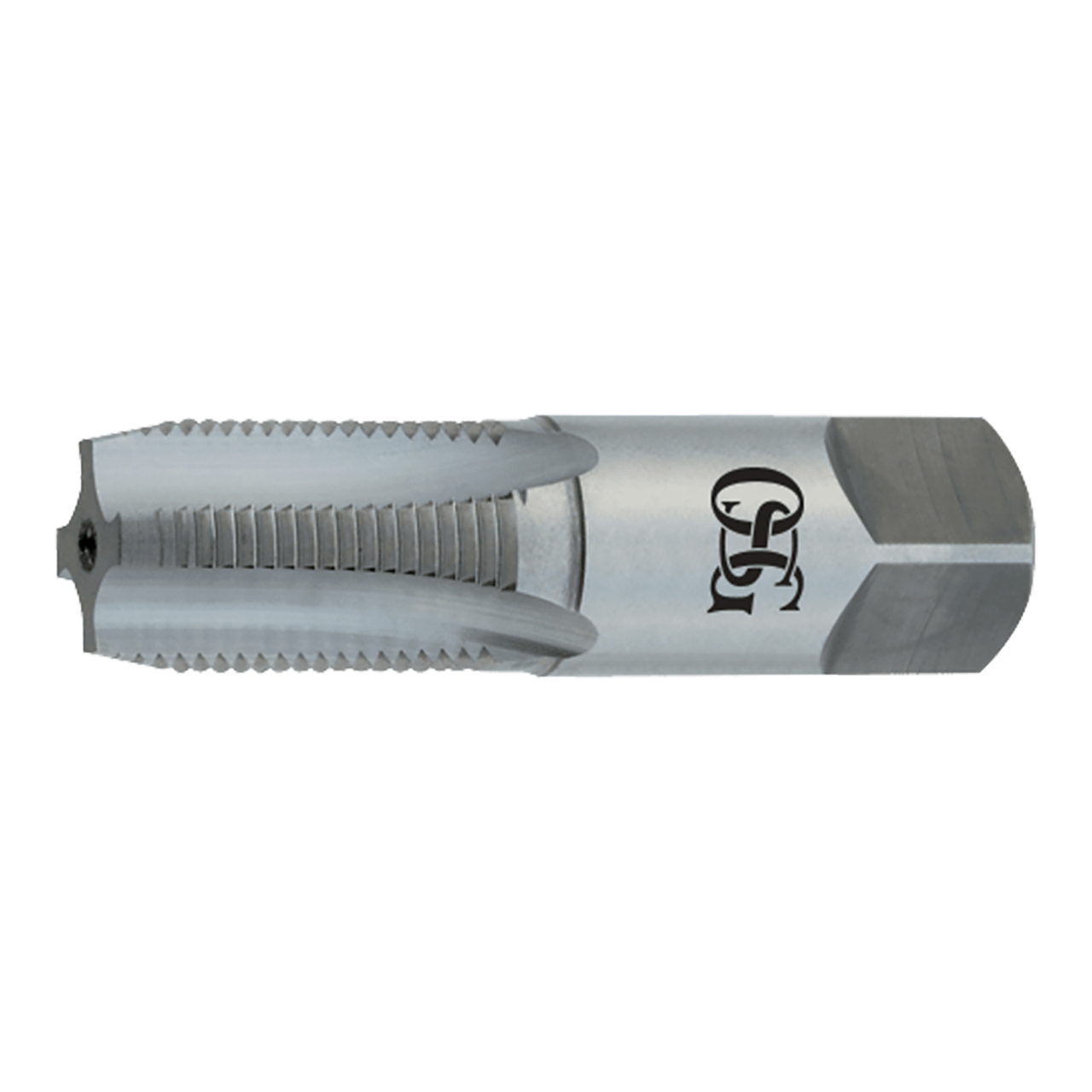

General Purpose parallel thread pipe taps provide exceptional value.
Features & Benefits:
| Manufacturer Part Number | 1330300 |
| Cutting Direction | Right Hand |
| List Name | GENERAL PURPOSE-NPS/NPSF |
| Major Diameter (Decimal Inch) | 0.250" |
| Neck Length (Decimal Inch) | 1.260" |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 2.437" |
| Shank Diameter (Decimal Inch) | 0.563" |
| Square Length (Decimal Inch) | 0.438" |
| Square Width (Decimal Inch) | 0.421" |
| Material | HSS |
| Coating | Bright |
| Tap Drill Size Minimum (Decimal Inch) | 0.438" |
| Thread Length (Decimal Inch) | 1.063" |
| Thread Size (Inch) | 1/4" |
| Thread Type | NPS |
| Thread Per Inch (TPI) | 18 TPI |
| Series | 109 |
| Product Type | Standard Pipe Tap |
