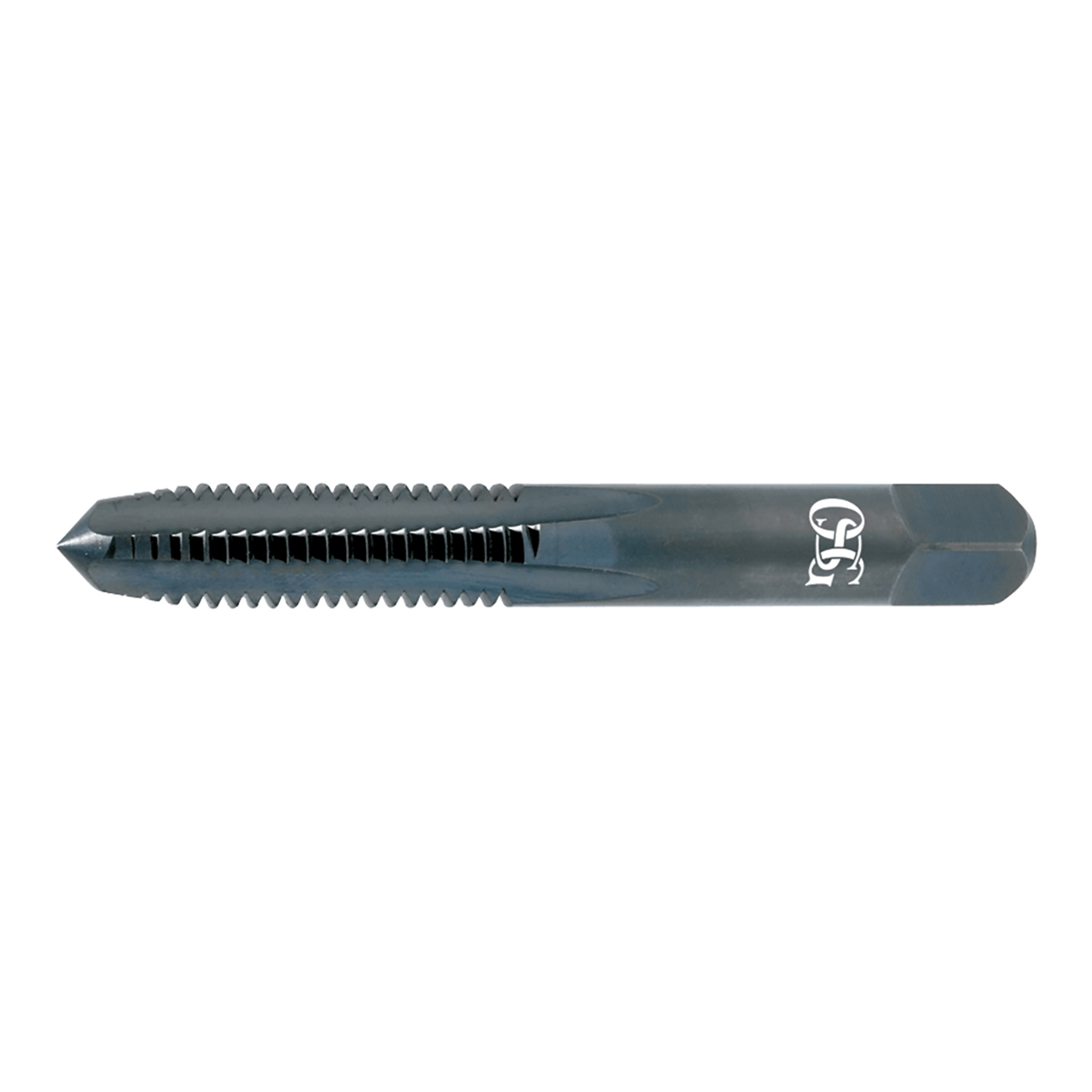

General Purpose straight flute tap series that provides exceptional value for all general threading applications.
Features & Benefits:
| Manufacturer Part Number | 1592708 |
| Chamfer Length (Decimal Inch) | 0.200" |
| Major Diameter (Decimal Inch) | 0.500" |
| Neck Length (Decimal Inch) | 1.811" |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 3.374" |
| Shank Diameter (Decimal Inch) | 0.367" |
| Square Length (Decimal Inch) | 0.438" |
| Square Width (Decimal Inch) | 0.275" |
| Maximum Tap Drill Size (Decimal Inch) | 0.457" |
| Minimum Tap Drill Size (Decimal Inch) | 0.446" |
| Thread Length (Decimal Inch) | 1.154" |
| Thread Size (Inch) | 1/2" |
| Coating | TiCN |
| Material | HSS |
| Series | 101H Series |
| Product Type | Straight Flute Tap |
