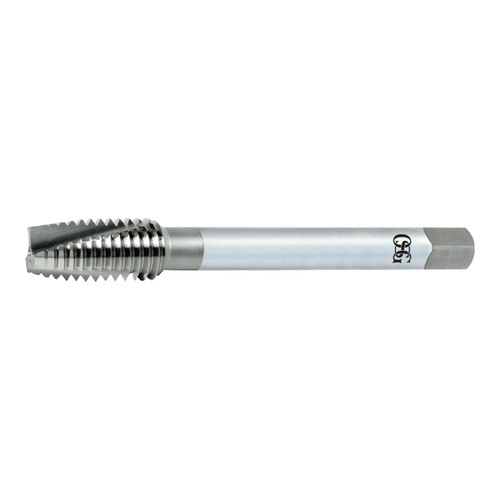

OSG 1612600 | UNC #12 - 24 Thread Size x 0.220" Shank x 0.508" Length x 2.375" OAL Plug (4.5P) Chamfer H3 2 Flute BRIGHT Coated HSS 105A Spiral Point Tap

OSG 1612600 | UNC #12 - 24 Thread Size x 0.220" Shank x 0.508" Length x 2.375" OAL Plug (4.5P) Chamfer H3 2 Flute BRIGHT Coated HSS 105A Spiral Point Tap

SKU: 18000916 Weight: 0.02 LBS Minimum Purchase: 1 unit
UPC:
$24.36 $10.96
(You save $13.40)
Shipping: Calculated at Checkout

About This Item

General Purpose spiral point tap series that provides exceptional value for all general threading applications.

Features & Benefits:

  • HSS material: Increased wear resistance
  • Spiral Point: For through hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiCN coating: Improves wear resistance for extended tap life

Product Specifications
Manufacturer Part Number1612600
Chamfer Length (Decimal Inch)0.188"
Major Diameter (Decimal Inch)0.216"
Neck Length (Decimal Inch)0.937"
Number of Flutes2
Overall Length (Decimal Inch)2.375"
Shank Diameter (Decimal Inch)0.220"
Square Length (Decimal Inch)0.281"
Square Width (Decimal Inch)0.165"
Maximum Tap Drill Size (Decimal Inch)0.181"
Minimum Tap Drill Size (Decimal Inch)0.171"
Thread Length (Decimal Inch)0.508"
Thread Size NumberNo. 12
CoatingBright
MaterialHSS
Series105A Series
Product TypeSpiral Point Tap
