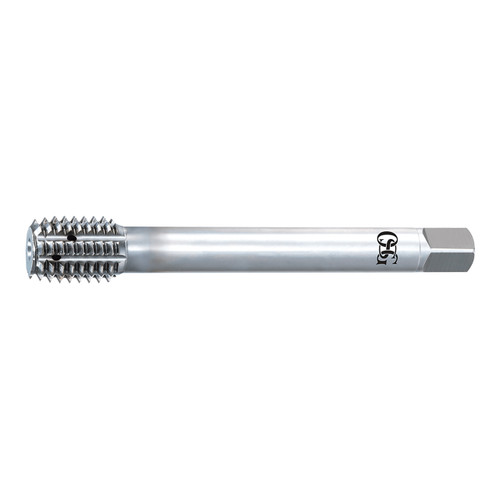

The EXOPRO S-XPF X Performer Taps represent a new evolution in forming tap technology. These form taps generate up to 50% less torque versus other forming taps, making it feasible to tap materials up to 40 HRC and sizes up to or exceeding 1" in diameter.
Features & Benefits:
- Fluteless Forming Tap: Produces no chips, making it up to 17X more durable than cut taps.
- 40-50% less machining torque: Longer life at faster speeds and the ability to use larger forming taps.
- Coolant-fed version also available (S-XPF): For those with coolant-fed spindles, even more performance can be achieved.
- DIN Overall Length: Additional length provides greater reach capabilities.
Product Specifications
| Manufacturer Part Number | 1635006015 |
| Chamfer Length (Decimal Inch) | 0.098" |
| Chamfer Type | Modified Bottom (2.5P) |
| Cutting Direction | Right Hand |
| List Name | S-XPF |
| Major Diameter (mm) | 6.00mm |
| Neck Length (mm) | 30.00mm |
| Overall Length (mm) | 80.00mm |
| Pitch (mm) | 1.00mm |
| Shank Diameter (mm) | 6.48mm |
| Square Length (mm) | 7.94mm |
| Square Width (mm) | 4.85mm |
| Material | HSS-CO |
| Coating | V |
| Tap Drill Size Maximum (mm) | 5.59mm |
| Tap Drill Size Minimum (mm) | 5.49mm |
| Thread Length (mm) | 10.00mm |
| Thread Limit | D5 |
| Thread Size | M6 |
| Thread Type | M |
| Series | 16350 |
| Product Type | Thread Forming Tap |
