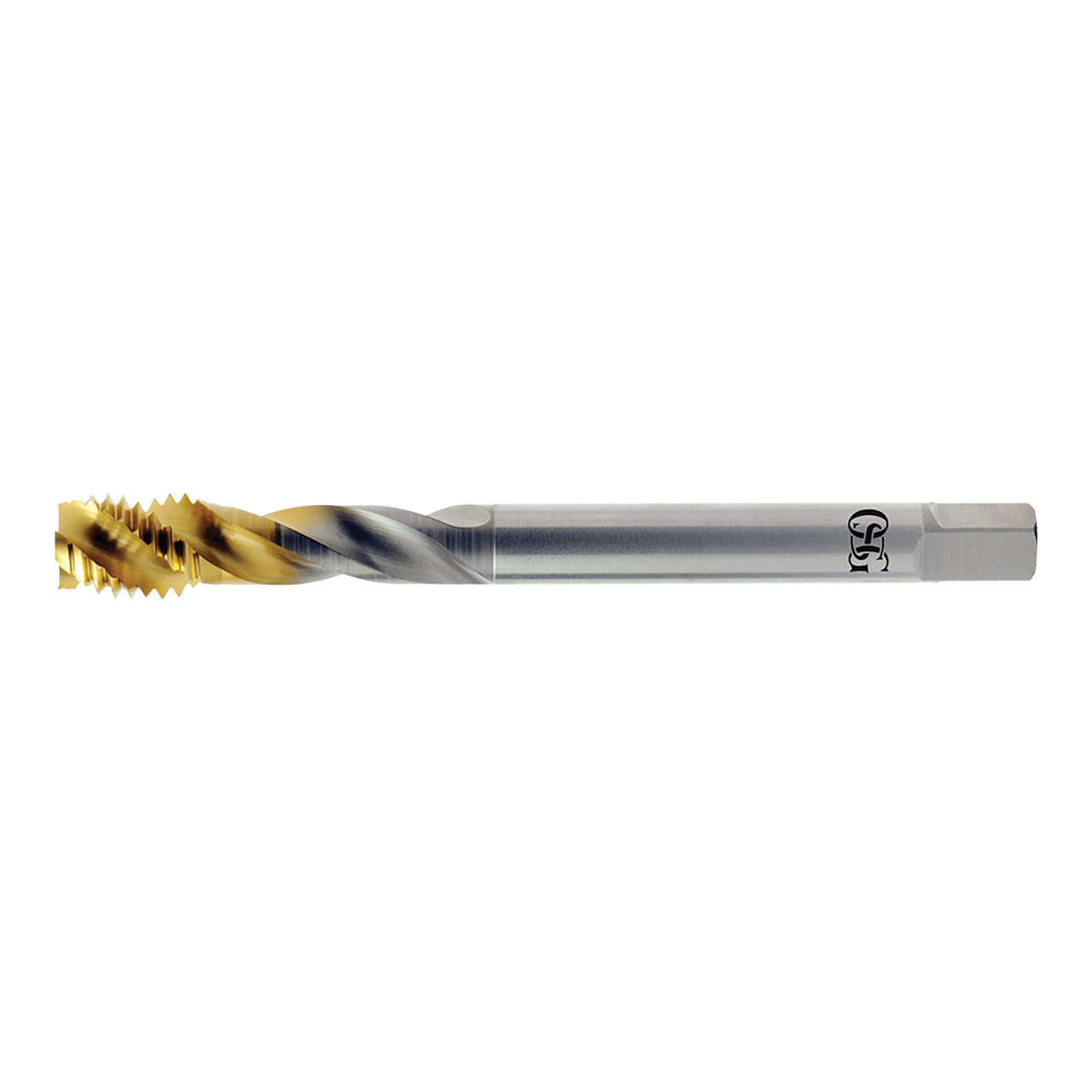

OSG 1645008322 | EXOPRO UNC #8 - 32 Thread Size x 0.168" Shank x 0.252" Length x 2.480" OAL Modified Bottom (2.5P) Chamfer H2 2 Flute TiN Coated HSSE 16450 Spiral Flute Tap

OSG 1645008322 | EXOPRO UNC #8 - 32 Thread Size x 0.168" Shank x 0.252" Length x 2.480" OAL Modified Bottom (2.5P) Chamfer H2 2 Flute TiN Coated HSSE 16450 Spiral Flute Tap

SKU: 18001444 Weight: 0.02 LBS Minimum Purchase: 1 unit
UPC:
$61.90 $41.47
(You save $20.43)
Shipping: Calculated at Checkout

About This Item

Features & Benefits:

  • Variable lead flute: Trouble-free chip separation
  • Advanced chip control: Long tool life
  • Vanadium HSS with TiN coating: Capable of high speed tapping in synchronized spindles

Product Specifications
Manufacturer Part Number1645008322
Chamfer Length (Decimal Inch)0.078"
Major Diameter (Decimal Inch)0.164"
Neck Length (Decimal Inch)0.827"
Number of Flutes2
Overall Length (Decimal Inch)2.480"
Shank Diameter (Decimal Inch)0.168"
Square Length (Decimal Inch)0.250"
Square Width (Decimal Inch)0.131"
Maximum Tap Drill Size (Decimal Inch)0.139"
Minimum Tap Drill Size (Decimal Inch)0.130"
Thread Length (Decimal Inch)0.252"
Thread Size NumberNo. 8
CoatingTiN
MaterialHSSE
Helix DirectionRight Hand
Helix Angle (Degree)45 Degree
Series16450 Series
Product TypeSpiral Flute Tap
