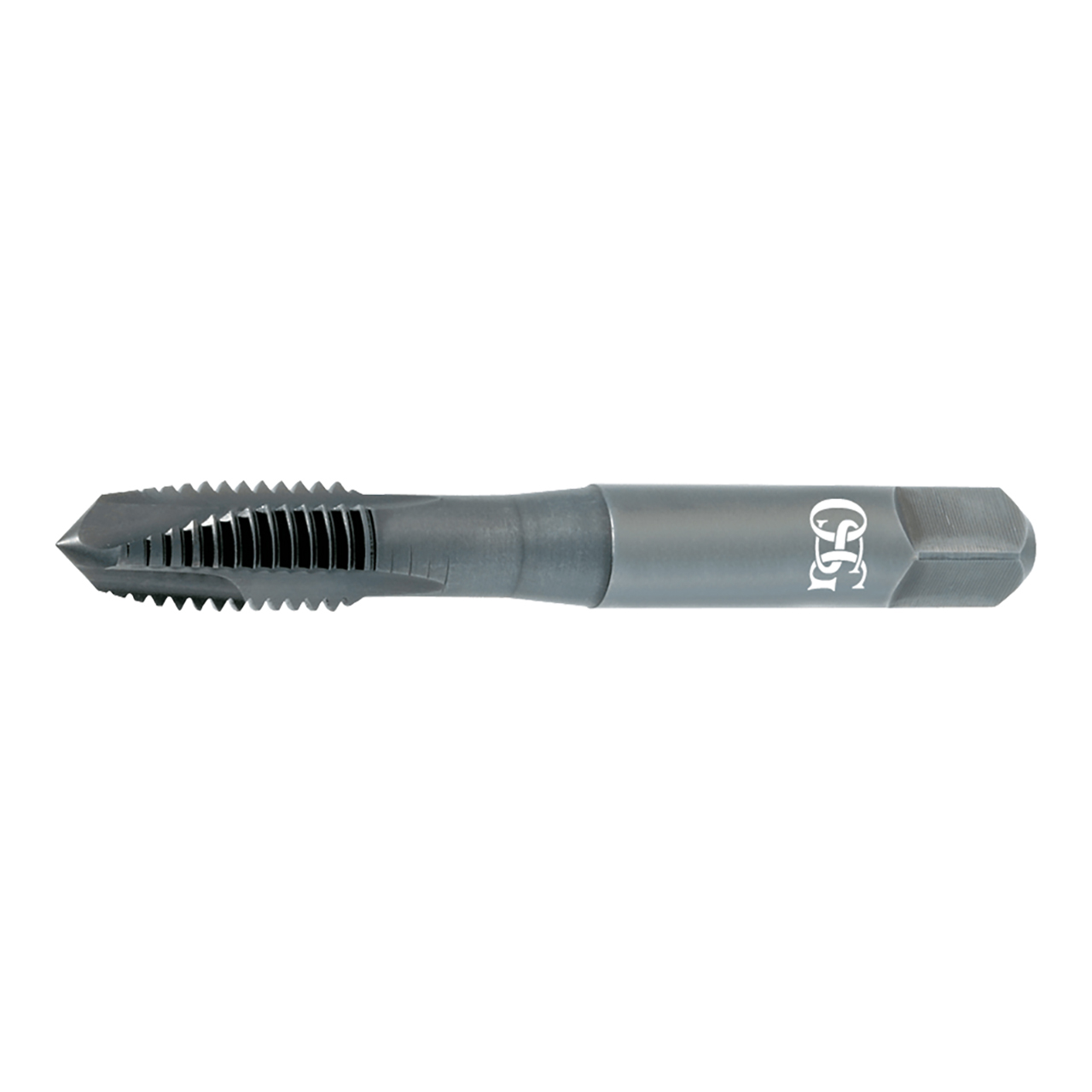

OSG 1735808 | EXOTAP UNC #6 - 32 Thread Size x 0.141" Shank x 0.377" Length x 2.000" OAL Plug (4P) Chamfer H2 2 Flute V Coated HSSE 300 Spiral Point Tap

OSG 1735808 | EXOTAP UNC #6 - 32 Thread Size x 0.141" Shank x 0.377" Length x 2.000" OAL Plug (4P) Chamfer H2 2 Flute V Coated HSSE 300 Spiral Point Tap

SKU: 18002631 Weight: 0.01 LBS Minimum Purchase: 1 unit
UPC:
$24.37 $22.66
(You save $1.71)
Shipping: Calculated at Checkout

About This Item

EXOTAP VA-3 is the premium solution for tapping performance in stainless steels.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Point: For through hole applications
  • Steam Oxide surface treatment: S/O increases mechanical lubricity
  • OSG V-Coating: Increased hardness, lubricity & wear resistance

Product Specifications
Manufacturer Part Number1735808
Chamfer Length (Decimal Inch)0.125"
Major Diameter (Decimal Inch)0.138"
Neck Length (Decimal Inch)0.692"
Number of Flutes2
Overall Length (Decimal Inch)2.000"
Shank Diameter (Decimal Inch)0.141"
Square Length (Decimal Inch)0.188"
Square Width (Decimal Inch)0.110"
Maximum Tap Drill Size (Decimal Inch)0.114"
Minimum Tap Drill Size (Decimal Inch)0.104"
Thread Length (Decimal Inch)0.377"
Thread Size NumberNo. 6
CoatingV
MaterialHSSE
Series300 Series
Product TypeSpiral Point Tap
