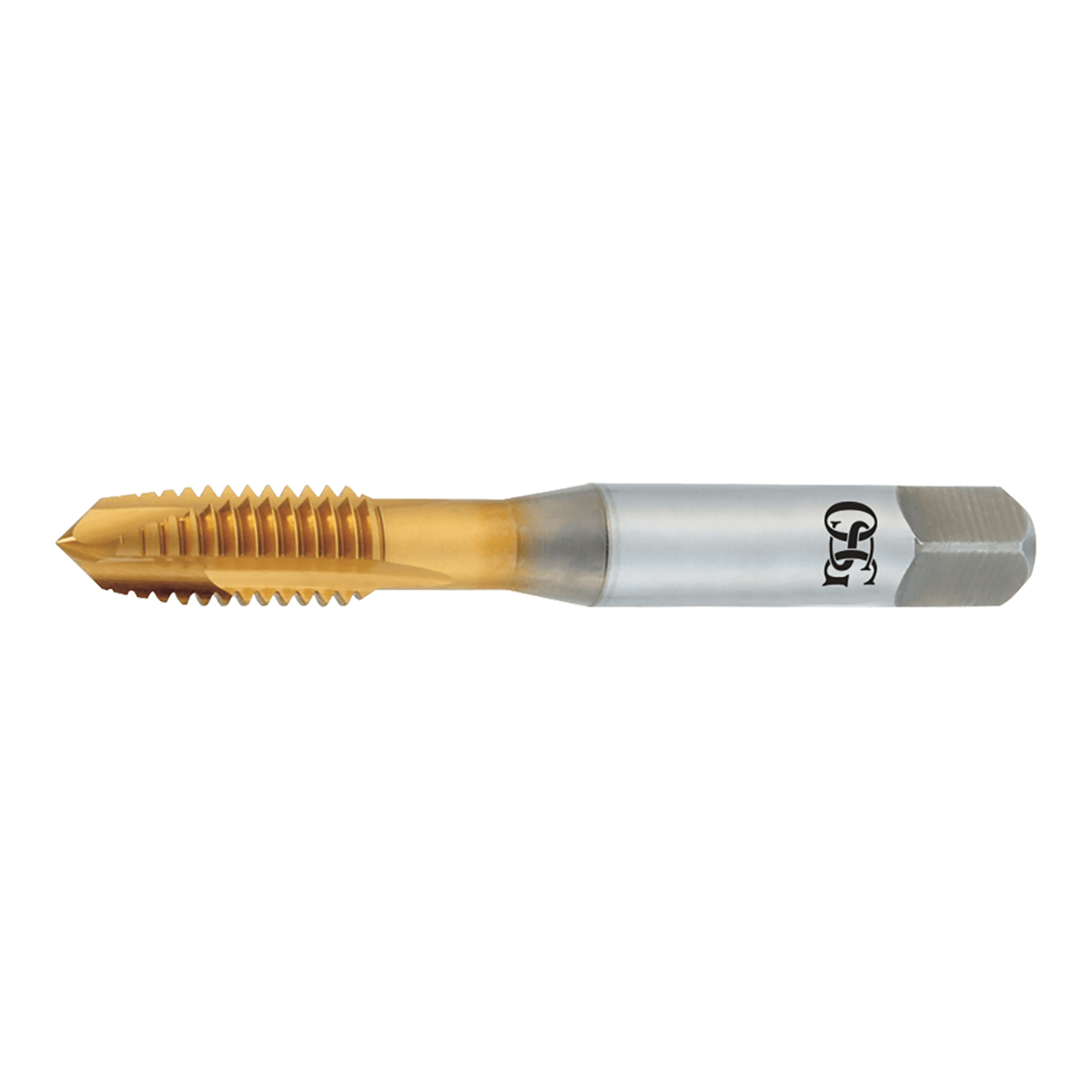

OSG 1740405 | EXO #10- 24 Thread Size x 0.194" Shank x 0.492" Thread Length x 2.374" OAL UNC H3 Plug (4P) Chamfer Type 3 Flute Right Hand TiN Coated HSSE 320 Spiral Point Tap

$28.19 $26.22
(You save $1.97)
Brand:
OSG
Cutting Direction:
Right Hand
Number of Flutes:
3
Material:
HSSE
Finish/Coating:
TiN
Thread Limit:
H3
interval quantity:
1
SKU:
15029682
UPC:
Weight:
0.02 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 1740405 | EXO #10- 24 Thread Size x 0.194" Shank x 0.492" Thread Length x 2.374" OAL UNC H3 Plug (4P) Chamfer Type 3 Flute Right Hand TiN Coated HSSE 320 Spiral Point Tap

EXOTIN is a premium TiN coated spiral point tap for threading a wide variet of steels.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Point: For through hole applications
  • TiN Coating: Improves wear resistance for extended tap life

Product Specifications
Manufacturer Part Number1740405
Chamfer Length (Decimal Inch)0.167"
Chamfer TypePlug (4P)
Cutting DirectionRight Hand
List NameTIN-POT
Major Diameter (Decimal Inch)0.190"
Neck Length (Decimal Inch)0.866"
Number of Flutes3
Overall Length (Decimal Inch)2.374"
Shank Diameter (Decimal Inch)0.194"
Square Length (Decimal Inch)0.250"
Square Width (Decimal Inch)0.152"
MaterialHSSE
CoatingTiN
Tap Drill Size Maximum (Decimal Inch)0.156"
Tap Drill Size Minimum (Decimal Inch)0.145"
Thread Length (Decimal Inch)0.492"
Thread LimitH3
Thread SizeNo. 10
Thread Size (Number)#10
Thread TypeUNC
Thread Per Inch (TPI)24 TPI
Series320
Product TypeSpiral Point Tap
