The Standard Carbide drill lineup consists of a variety of different drill designs, made to OSG quality standards at a value-added price point that is friendly to any tooling budget. An economical solution without sacrificing consistent tolerancing and precision.
Features & Benefits:
- Micrograin Carbide: Superior hardness & wear resistance versus High Speed Steel
- Multiple Coatings: Bright, TiN, TiCN and TiAlN available
- OSG Quality Certified: Performance and quality are the same every time, tool after tool.
Product Specifications

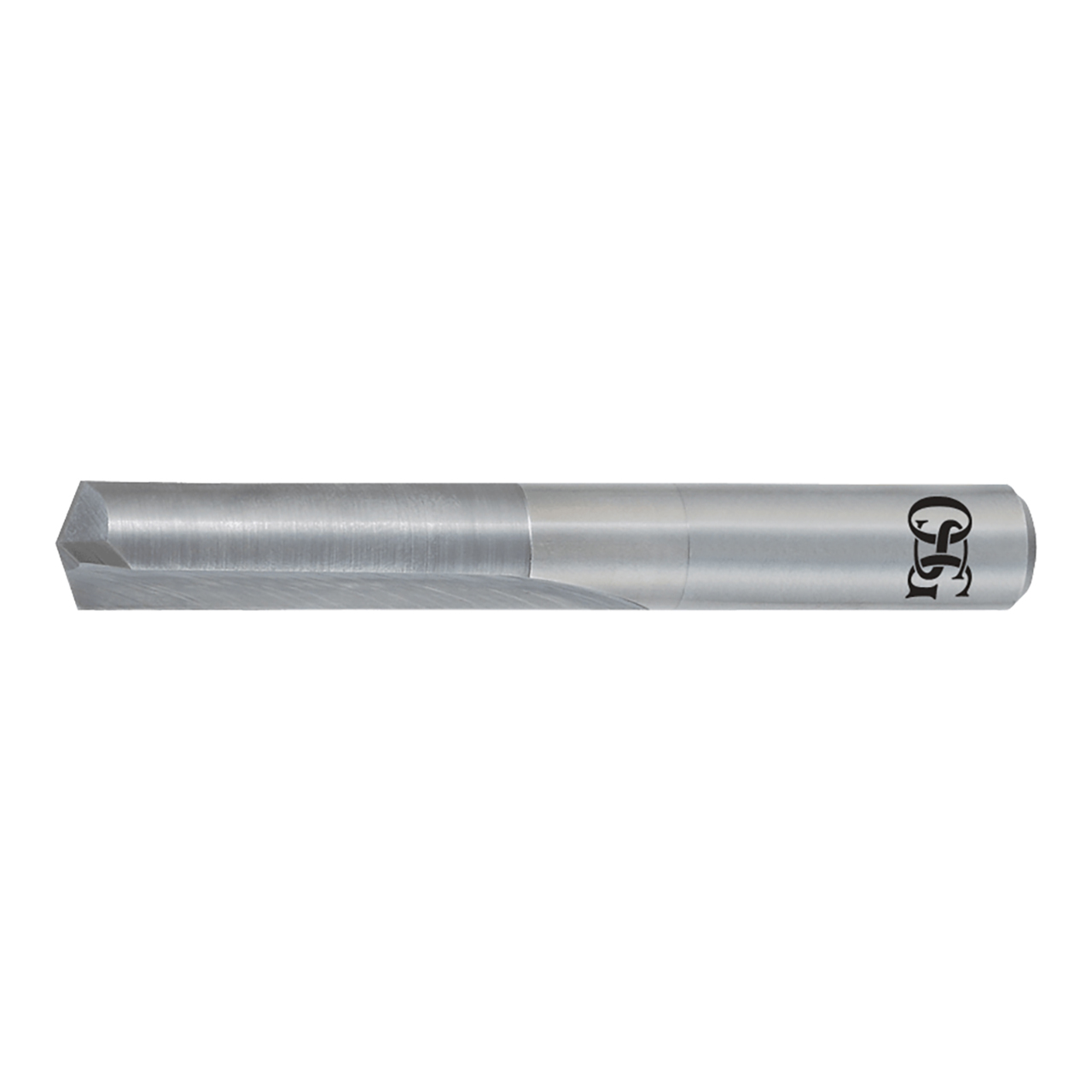

| Manufacturer Part Number | 200-2040 |
| Cutting Diameter Tolerance (Decimal Inch) | +0 / -0.0005" |
| Cutting Diameter Tolerance (mm) | +0 / -0.013mm |
| Cutting Direction | Right Hand |
| Diameter (Decimal Inch) | 0.204" |
| Diameter (mm) | 5.18mm |
| Diameter (Wire) | 6 |
| Flute Length (mm) | 31.75mm |
| List Name | STRAIGHT DRILL |
| Number of Flutes | 2 |
| Overall Length (mm) | 60.33mm |
| Point Angle (Degree) | 140 Degree |
| Shank Diameter (mm) | 5.18mm |
| Material | Carbide |
| Coating | Bright |
| Series | 200 |
| Product Type | Straight Flute Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
