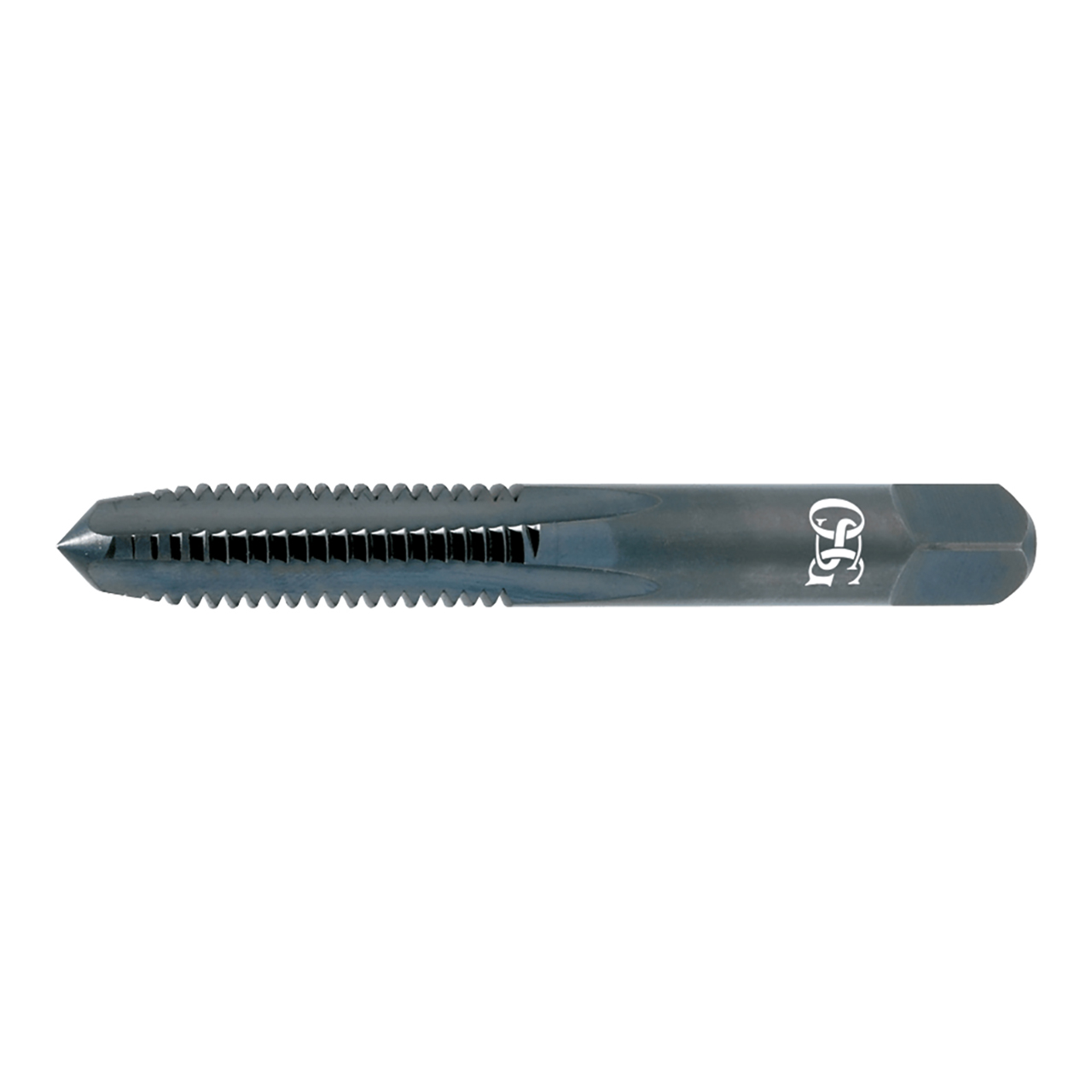

OSG 22634 | M M10.00x1.50mm Thread Size x 7.00mm Shank x 24.00mm Length x 75.00mm OAL Bottom (1.5P) Chamfer OH2 4 Flute Steam Oxide Coated HSS 121 Standard Pipe Tap

OSG 22634 | M M10.00x1.50mm Thread Size x 7.00mm Shank x 24.00mm Length x 75.00mm OAL Bottom (1.5P) Chamfer OH2 4 Flute Steam Oxide Coated HSS 121 Standard Pipe Tap

SKU: 18003137 Weight: 0.06 LBS Minimum Purchase: 1 unit
UPC:
$37.42 $16.84
(You save $20.58)
Shipping: Calculated at Checkout

About This Item

General Purpose straight flute tap series that provides exceptional value for all general threading applications.

Features & Benefits:

  • HSS material: Increased wear resistance
  • Straight Flute: For blind and through hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiN, TiCN surface treatments: Improves wear resistance for extended tap life

Product Specifications
Manufacturer Part Number22634
Chamfer Length (Decimal Inch)0.089"
Major Diameter (mm)10.00mm
Neck Length (mm)41.00mm
Number of Flutes4
Overall Length (mm)75.00mm
Pitch (mm)1.50mm
Shank Diameter (mm)7.00mm
Square Length (mm)8.00mm
Square Width (mm)5.50mm
Maximum Tap Drill Size (mm)8.68mm
Minimum Tap Drill Size (mm)8.38mm
Thread Length (mm)24.00mm
Thread SizeM10
CoatingSteam Oxide
MaterialHSS
Product TypeStraight Flute Tap
