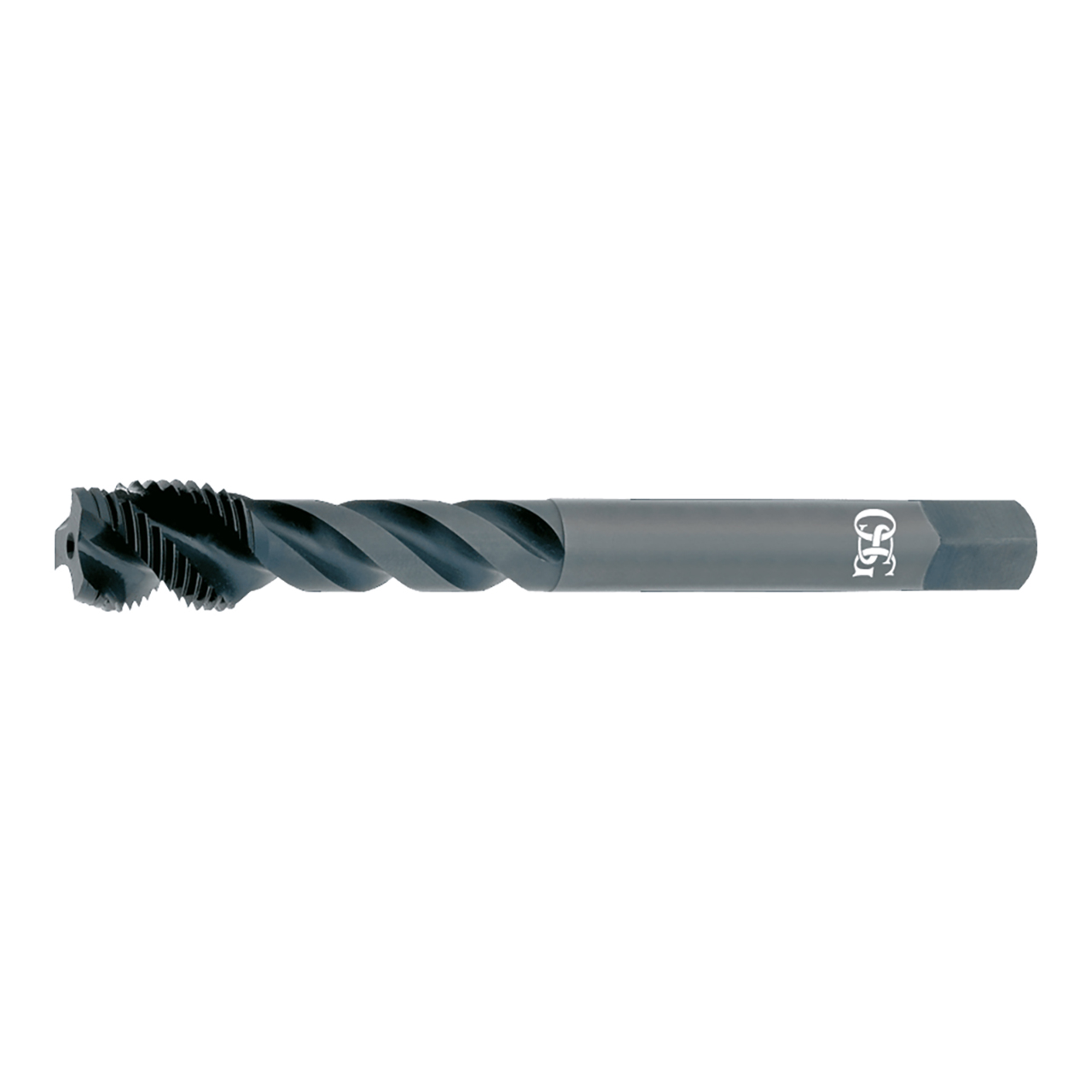

OSG 2290801 | HY-PRO TAP M M5.00x0.80mm Thread Size x 4.93mm Shank x 6.40mm Length x 7.00mm OAL Modified Bottom (2.5P) Chamfer 3 Flute Steam Oxide Coated HSSE 229 Spiral Flute Tap

OSG 2290801 | HY-PRO TAP M M5.00x0.80mm Thread Size x 4.93mm Shank x 6.40mm Length x 7.00mm OAL Modified Bottom (2.5P) Chamfer 3 Flute Steam Oxide Coated HSSE 229 Spiral Flute Tap

SKU: 15030367 Weight: 0.02 LBS Minimum Purchase: 1 unit
UPC:
$50.68 $30.91
(You save $19.77)
Shipping: Calculated at Checkout

About This Item

HY-PRO DIN is the original "Do it All" premium spiral flute tap for a wide range of materials.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Steam Oxide surface treatment: S/O increases mechanical lubricity
  • DIN Overall Length: Provides greater reach capability

Product Specifications
Manufacturer Part Number2290801
Chamfer Length (Decimal Inch)0.079"
Major Diameter (mm)5.00mm
Neck Length (mm)25.00mm
Number of Flutes3
Overall Length (mm)70.00mm
Pitch (mm)0.80mm
Shank Diameter (mm)4.93mm
Square Length (mm)6.35mm
Square Width (mm)3.86mm
Maximum Tap Drill Size (mm)4.33mm
Minimum Tap Drill Size (mm)4.13mm
Thread Length (mm)6.40mm
Thread SizeM5
CoatingSteam Oxide
MaterialHSSE
Helix DirectionRight Hand
Helix Angle (Degree)45 Degree
Series229 Series
Product TypeSpiral Flute Tap
