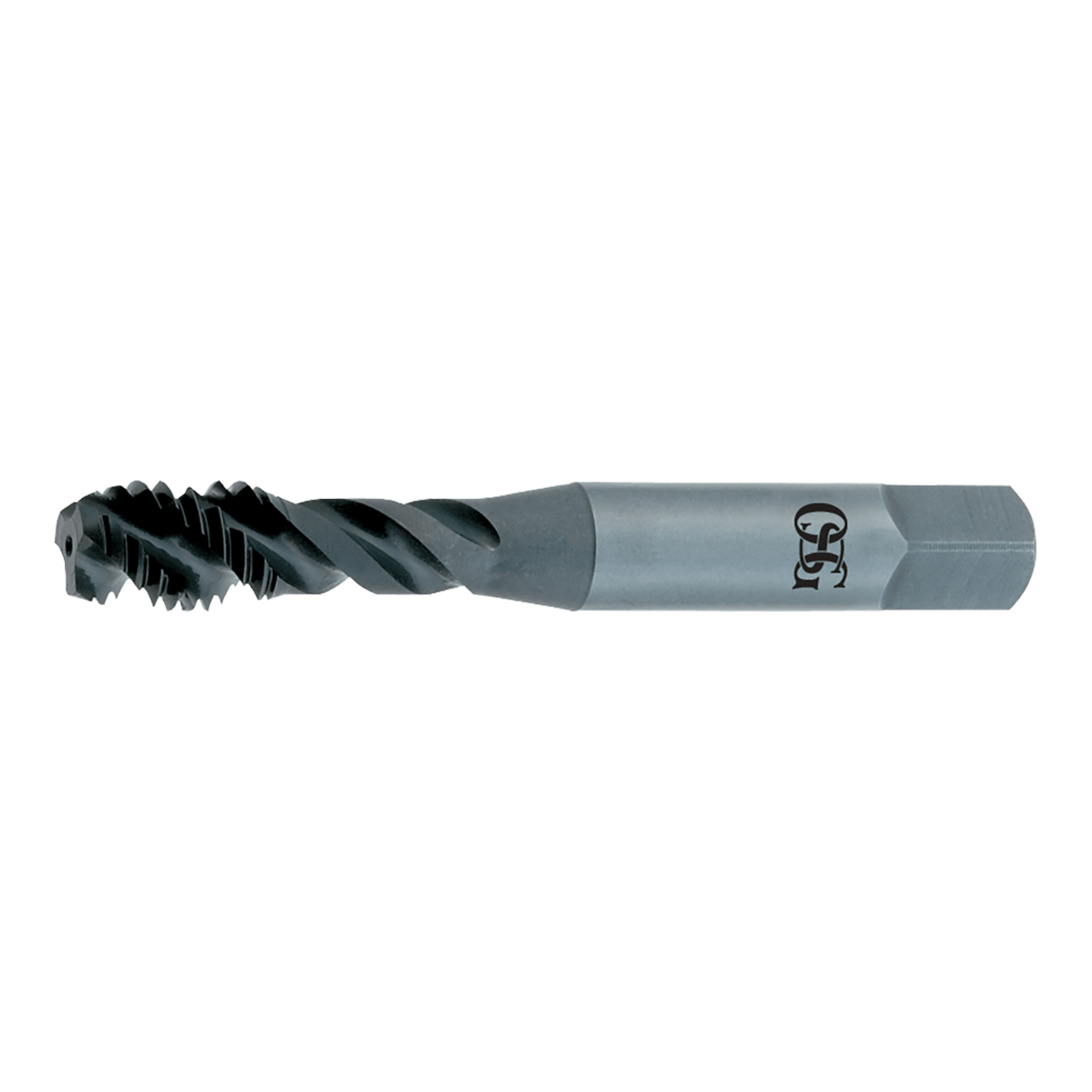

OSG 2990801 | HY-PRO TAP M M5.00x0.80mm Thread Size x 4.93mm Shank x 5.58mm Length x 60.30mm OAL Modified Bottom (2.5P) Chamfer D4 3 Flute Steam Oxide Coated HSSE 299 Spiral Flute Tap

OSG 2990801 | HY-PRO TAP M M5.00x0.80mm Thread Size x 4.93mm Shank x 5.58mm Length x 60.30mm OAL Modified Bottom (2.5P) Chamfer D4 3 Flute Steam Oxide Coated HSSE 299 Spiral Flute Tap

SKU: 15030525 Weight: 0.02 LBS Minimum Purchase: 1 unit
UPC:
$48.81 $29.77
(You save $19.04)
Shipping: Calculated at Checkout

About This Item

HY-PRO is the original "Do it All" premium spiral flute tap for a wide range of materials.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiCN coating: Improves wear resistance for extended tap life

Product Specifications
Manufacturer Part Number2990801
Chamfer Length (Decimal Inch)0.079"
Chamfer TypeModified Bottom (2.5P)
Cutting DirectionRight Hand
Helix Angle (Degree)45 Degree
Helix DirectionRight Hand
List NameSFT
Major Diameter (mm)5.00mm
Neck Length (mm)22.19mm
Number of Flutes3
Overall Length (mm)60.30mm
Pitch (mm)0.80mm
Shank Diameter (mm)4.93mm
Square Length (mm)6.35mm
Square Width (mm)3.86mm
MaterialHSSE
CoatingSteam Oxide
Tap Drill Size Maximum (mm)4.33mm
Tap Drill Size Minimum (mm)4.13mm
Thread Length (mm)5.58mm
Thread LimitD4
Thread SizeM5
Thread TypeM
Series299
Product TypeSpiral Flute Tap
