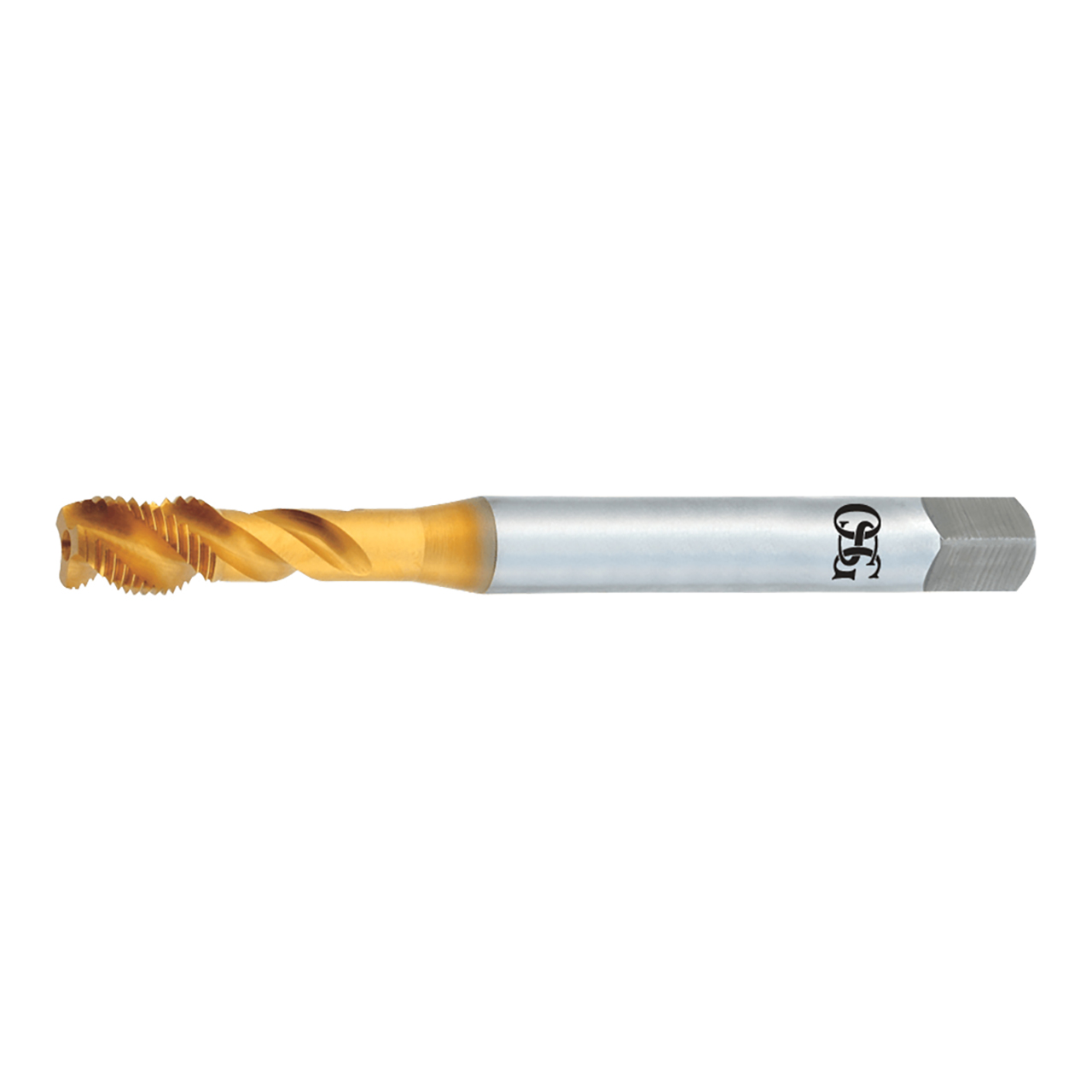

OSG 2392905 | HY-PRO TAP M M16.00x2.00mm Thread Size x 12.19mm Shank x 16.00mm Length x 11.00mm OAL Modified Bottom (2.5P) Chamfer 3 Flute TiN Coated HSSE 239 Spiral Flute Tap

OSG 2392905 | HY-PRO TAP M M16.00x2.00mm Thread Size x 12.19mm Shank x 16.00mm Length x 11.00mm OAL Modified Bottom (2.5P) Chamfer 3 Flute TiN Coated HSSE 239 Spiral Flute Tap

SKU: 15030396 Weight: 0.20 LBS Minimum Purchase: 1 unit
UPC:
$230.63 $140.68
(You save $89.95)
Shipping: Calculated at Checkout

About This Item

HY-PRO DIN is the original "Do it All" premium spiral flute tap for a wide range of materials.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • TiN Coating: Improves wear resistance for extended tap life
  • DIN Overall Length: Provides greater reach capability

Product Specifications
Manufacturer Part Number2392905
Chamfer Length (Decimal Inch)0.197"
Major Diameter (mm)16.00mm
Neck Length (mm)54.00mm
Number of Flutes3
Overall Length (mm)110.00mm
Pitch (mm)2.00mm
Shank Diameter (mm)12.19mm
Square Length (mm)14.29mm
Square Width (mm)9.14mm
Maximum Tap Drill Size (mm)14.21mm
Minimum Tap Drill Size (mm)13.84mm
Thread Length (mm)16.00mm
Thread SizeM16
CoatingTiN
MaterialHSSE
Helix DirectionRight Hand
Helix Angle (Degree)45 Degree
Series239 Series
Product TypeSpiral Flute Tap
