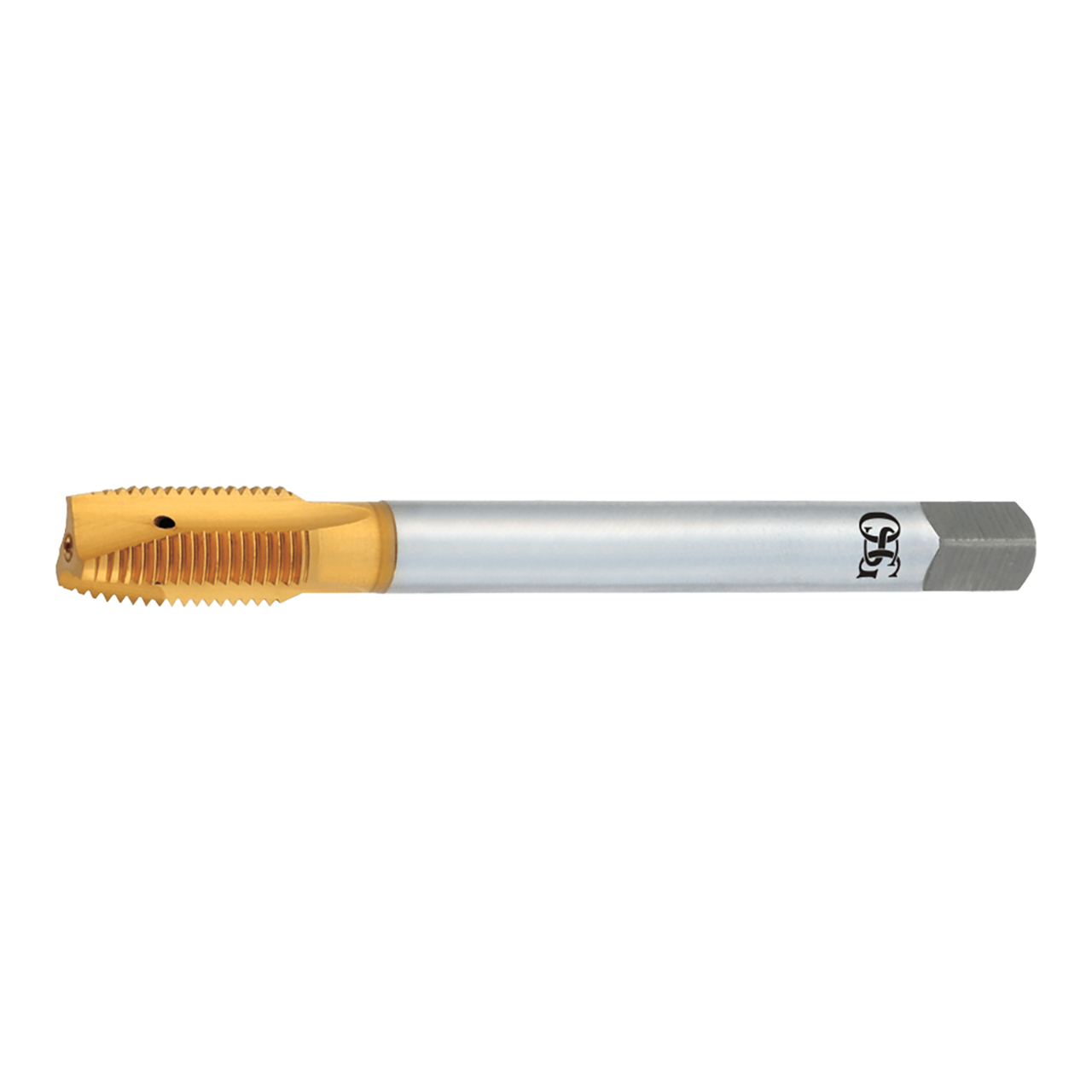

OSG 2691405 | HY-PRO M8 x 1.25mm Thread Size x 8.08mm Shank x 15.00mm Thread Length x 6H Class of FitM Plug (4P) Chamfer Type 3 Flute TiN Coated HSSE 269 Spiral Point Tap

$97.40 $59.41
(You save $37.99)
Brand:
OSG
Class of Fit:
6H
Through Coolant:
Yes
Cutting Direction:
Right Hand
Number of Flutes:
3
Material:
HSSE
Finish/Coating:
TiN
interval quantity:
1
SKU:
15030408
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 2691405 | HY-PRO M8 x 1.25mm Thread Size x 8.08mm Shank x 15.00mm Thread Length x 6H Class of FitM Plug (4P) Chamfer Type 3 Flute TiN Coated HSSE 269 Spiral Point Tap

HY-PRO DIN is the original "Do it All" premium spiral point "gun" tap for a wide range of materials.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Point: For through hole applications
  • TiN Coating: Improves wear resistance for extended tap life
  • DIN Overall Length: Provides additional reach capability

Product Specifications
Manufacturer Part Number2691405
Chamfer Length (Decimal Inch)0.197"
Chamfer TypePlug (4P)
Class of Fit6H
Coolant ThroughYes
Cutting DirectionRight Hand
List NameOIL-TIN-POT
Major Diameter (mm)8.00mm
Neck Length (mm)35.00mm
Number of Flutes3
Overall Length (mm)90.00mm
Pitch (mm)1.25mm
Shank Diameter (mm)8.08mm
Square Length (mm)9.53mm
Square Width (mm)6.05mm
MaterialHSSE
CoatingTiN
Tap Drill Size Maximum (mm)6.91mm
Tap Drill Size Minimum (mm)6.65mm
Thread Length (mm)15.00mm
Thread SizeM8
Thread TypeM
Series269
Product TypeSpiral Point Tap
