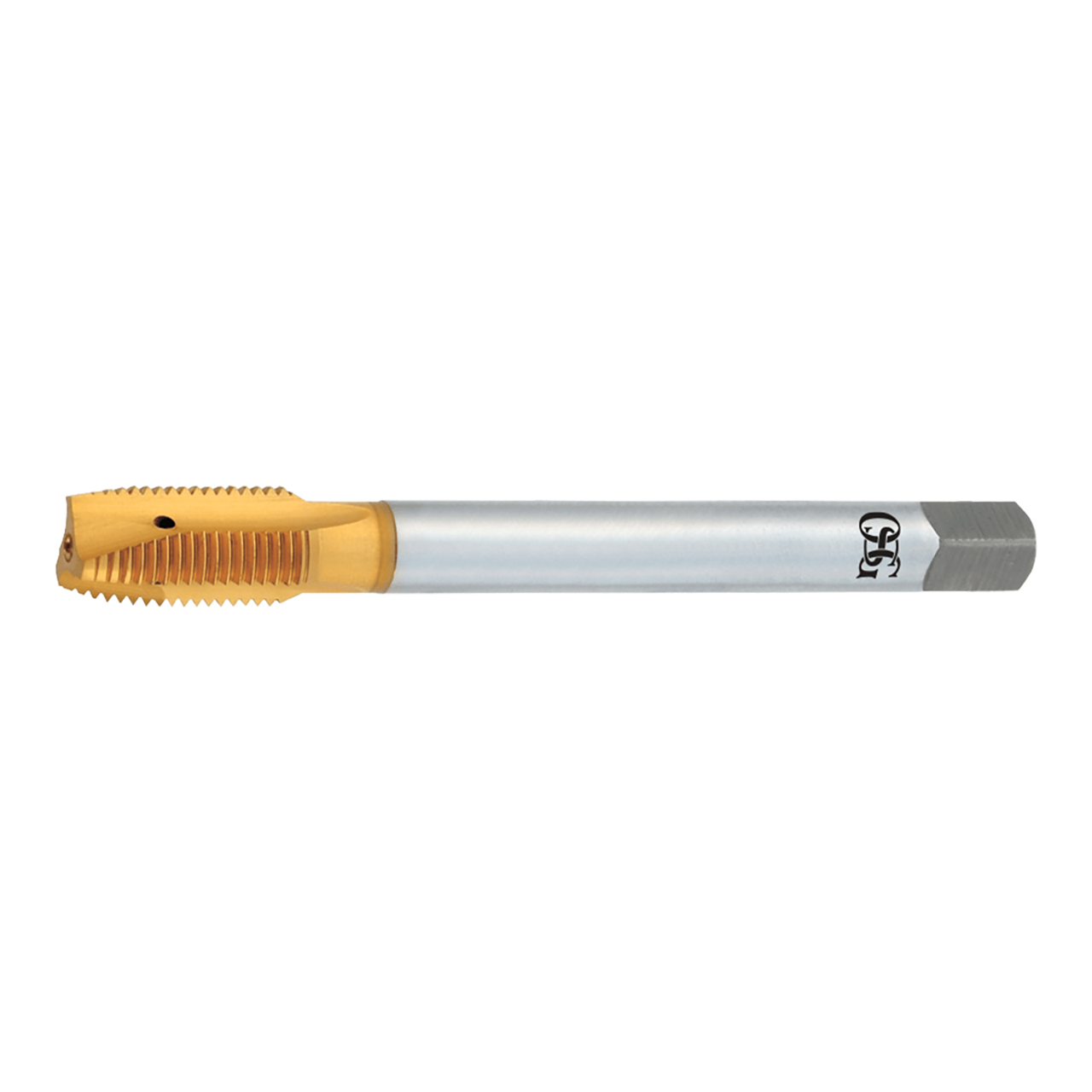

OSG 2693605 | HY-PRO TAP M M20.00x2.50mm Thread Size x 16.56mm Shank x 3.00mm Length x 14.00mm OAL Plug (4P) Chamfer 3 Flute TiN Coated HSSE 269 Spiral Point Tap

OSG 2693605 | HY-PRO TAP M M20.00x2.50mm Thread Size x 16.56mm Shank x 3.00mm Length x 14.00mm OAL Plug (4P) Chamfer 3 Flute TiN Coated HSSE 269 Spiral Point Tap

SKU: 15030418 Weight: 0.48 LBS Minimum Purchase: 1 unit
UPC:
$358.55 $218.71
(You save $139.84)
Shipping: Calculated at Checkout

About This Item

HY-PRO DIN is the original "Do it All" premium spiral point "gun" tap for a wide range of materials.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Point: For through hole applications
  • TiN Coating: Improves wear resistance for extended tap life
  • DIN Overall Length: Provides additional reach capability

Product Specifications
Manufacturer Part Number2693605
Chamfer Length (Decimal Inch)0.394"
Chamfer TypePlug (4P)
Class of Fit6H
Coolant ThroughYes
Cutting DirectionRight Hand
List NameOIL-TIN-POT
Major Diameter (mm)20.00mm
Neck Length (mm)43.90mm
Number of Flutes3
Overall Length (mm)140.00mm
Pitch (mm)2.50mm
Shank Diameter (mm)16.56mm
Square Length (mm)17.46mm
Square Width (mm)12.42mm
MaterialHSSE
CoatingTiN
Tap Drill Size Maximum (mm)17.74mm
Tap Drill Size Minimum (mm)17.29mm
Thread Length (mm)30.00mm
Thread SizeM20
Thread TypeM
Series269
Product TypeSpiral Point Tap
