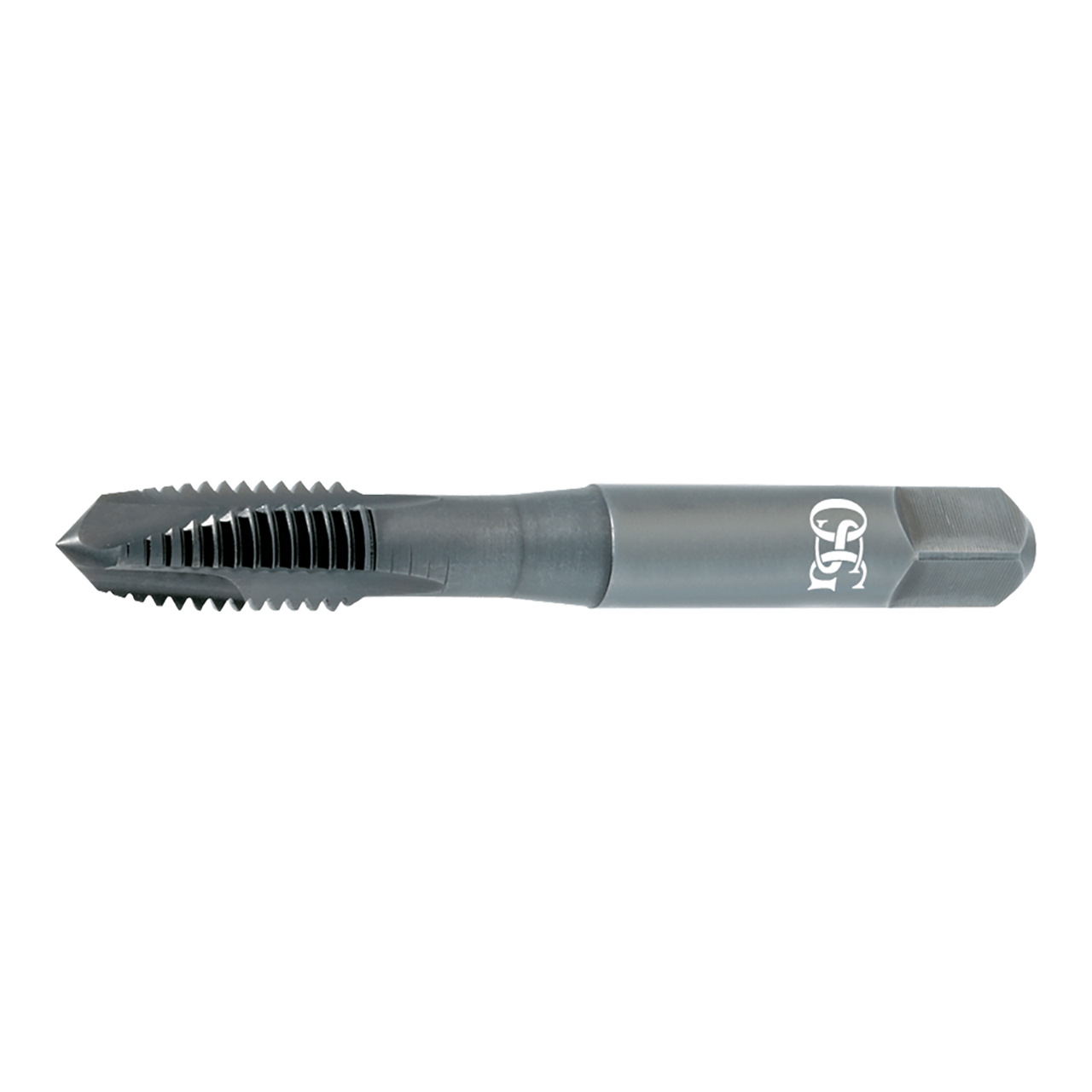

HY-PRO DIN is the original "Do it All" premium spiral point tap for a wide range of materials.
Features & Benefits:
| Manufacturer Part Number | 2833601 |
| Chamfer Length (Decimal Inch) | 0.400" |
| Major Diameter (Decimal Inch) | 0.750" |
| Neck Length (Decimal Inch) | 1.713" |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 4.252" |
| Shank Diameter (Decimal Inch) | 0.590" |
| Square Length (Decimal Inch) | 0.688" |
| Square Width (Decimal Inch) | 0.442" |
| Maximum Tap Drill Size (Decimal Inch) | 0.663" |
| Minimum Tap Drill Size (Decimal Inch) | 0.642" |
| Thread Length (Decimal Inch) | 1.201" |
| Thread Size (Inch) | 3/4" |
| Coating | Steam Oxide |
| Material | HSSE |
| Series | 280 Series |
| Product Type | Spiral Point Tap |
