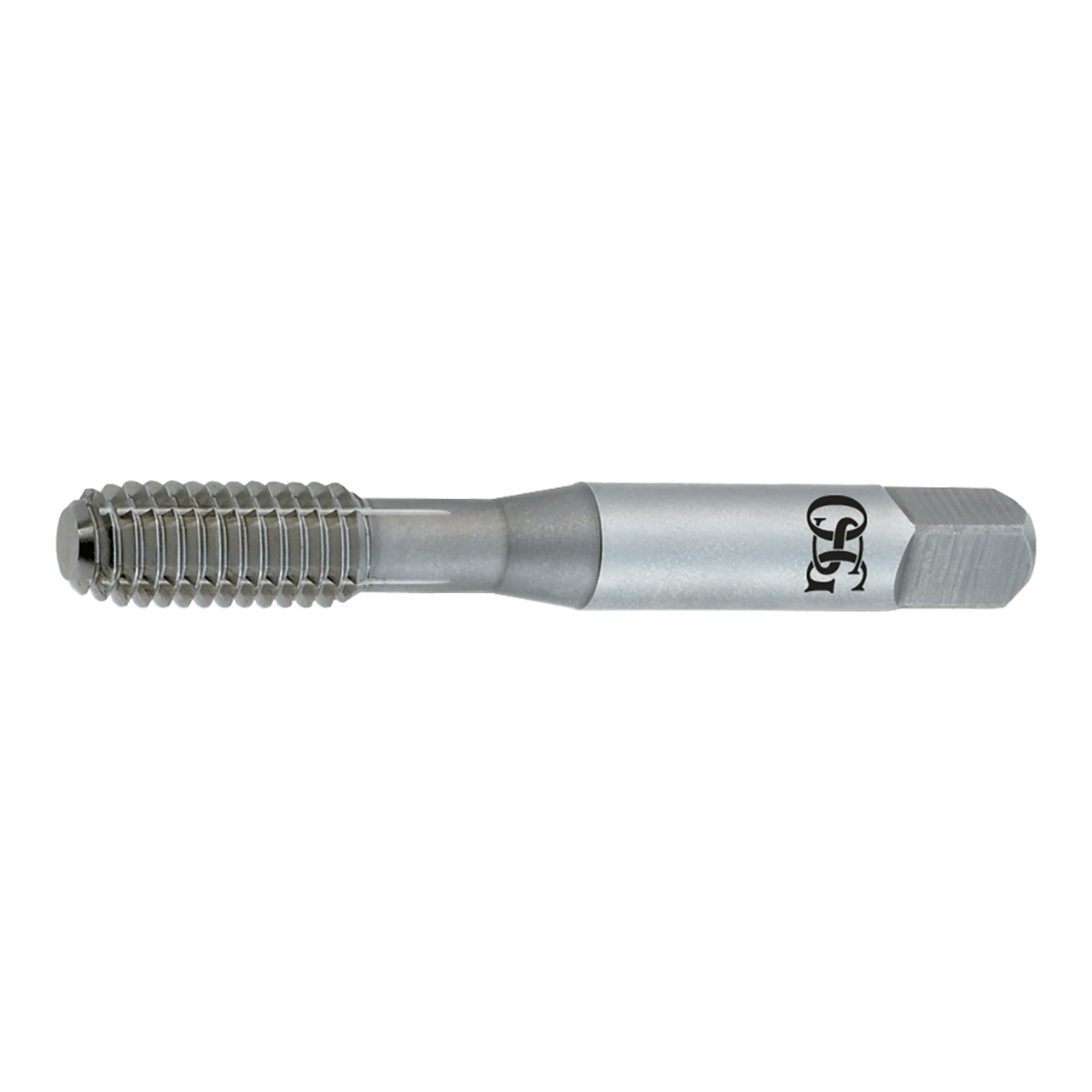

Semi-premium taps made from premium high speed steel for general purpose tapping applications.
Features & Benefits:
- 6H Class of Fit: Eliminates the need to choose the correct thread limit
Product Specifications
| Manufacturer Part Number | 2868308 |
| Chamfer Length (Decimal Inch) | 0.062" |
| Major Diameter (mm) | 4.00mm |
| Neck Length (mm) | 19.10mm |
| Overall Length (mm) | 55.00mm |
| Pitch (mm) | 0.70mm |
| Shank Diameter (mm) | 4.27mm |
| Square Length (mm) | 6.35mm |
| Square Width (mm) | 3.33mm |
| Maximum Tap Drill Size (mm) | 3.71mm |
| Minimum Tap Drill Size (mm) | 3.64mm |
| Thread Length (mm) | 8.40mm |
| Thread Size | M4 |
| Coating | TiCN |
| Material | HSS |
| Series | 286 Series |
| Product Type | Thread Forming Tap |
