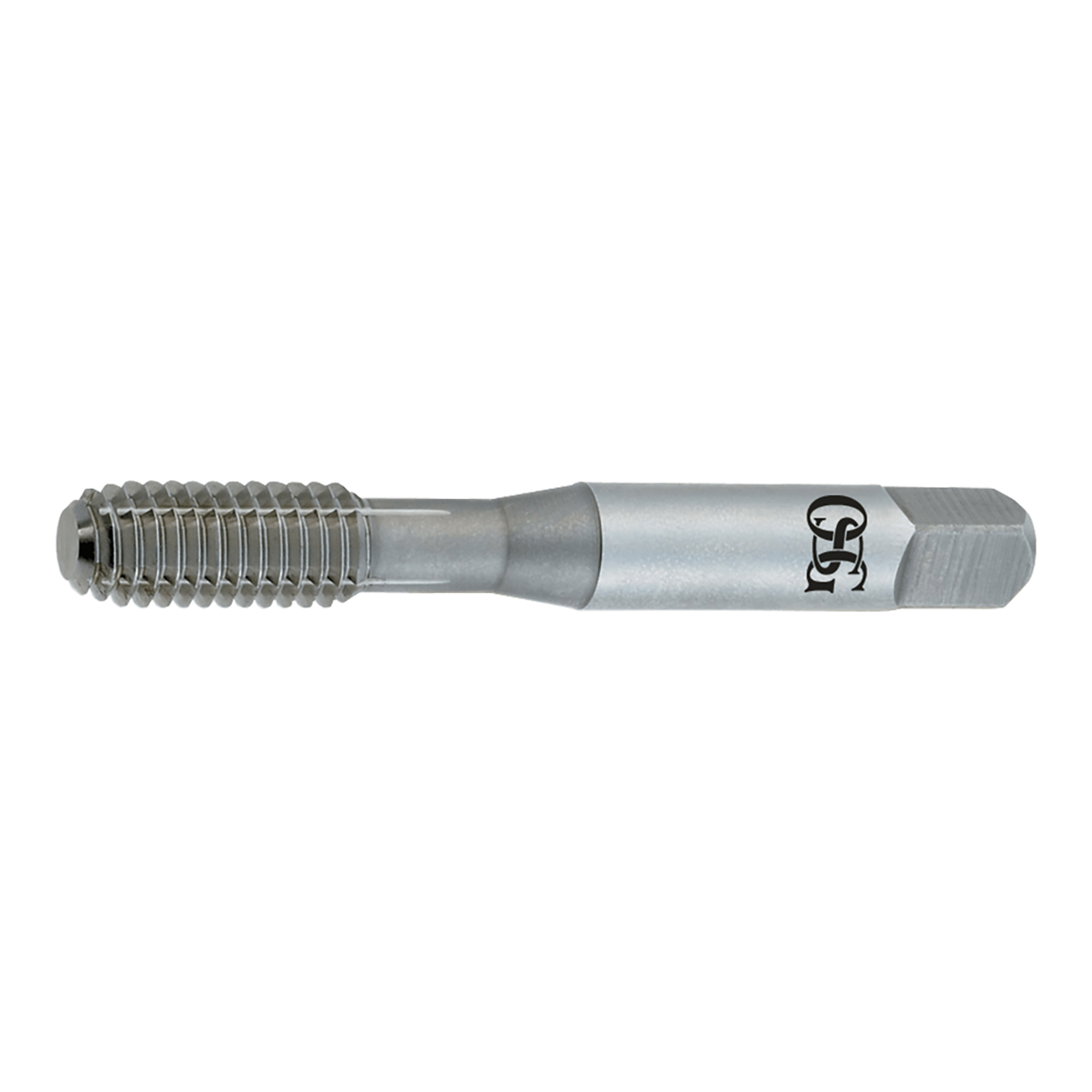

Semi-premium taps made from premium high speed steel for general purpose tapping applications.
Features & Benefits:
- 6H Class of Fit: Eliminates the need to choose the correct thread limit
Product Specifications
| Manufacturer Part Number | 2868705 |
| Chamfer Length (Decimal Inch) | 0.089" |
| Major Diameter (mm) | 6.00mm |
| Neck Length (mm) | 25.40mm |
| Overall Length (mm) | 65.00mm |
| Pitch (mm) | 1.00mm |
| Shank Diameter (mm) | 6.48mm |
| Square Length (mm) | 7.30mm |
| Square Width (mm) | 4.85mm |
| Maximum Tap Drill Size (mm) | 5.59mm |
| Minimum Tap Drill Size (mm) | 5.49mm |
| Thread Length (mm) | 12.00mm |
| Thread Size | M6 |
| Coating | TiN |
| Material | HSS |
| Series | 286 Series |
| Product Type | Thread Forming Tap |
