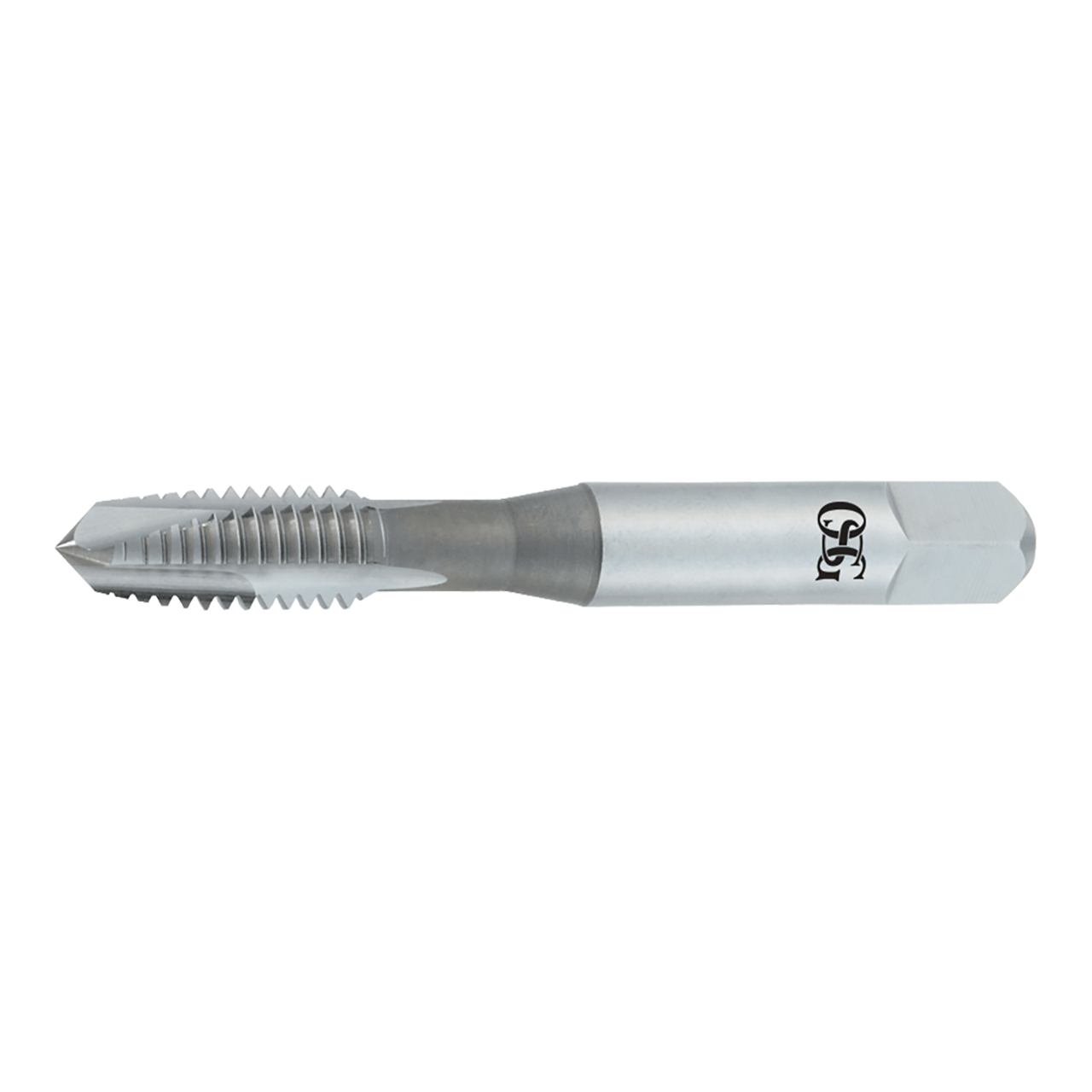

OSG 2880500 | HY-PRO TAP UNF #10 - 32 Thread Size x 0.194" Shank x 0.504" Length x 2.375" OAL Plug (5P) Chamfer 2 Flute BRIGHT Coated HSS 287 Spiral Point Tap

OSG 2880500 | HY-PRO TAP UNF #10 - 32 Thread Size x 0.194" Shank x 0.504" Length x 2.375" OAL Plug (5P) Chamfer 2 Flute BRIGHT Coated HSS 287 Spiral Point Tap

SKU: 15029555 Weight: 0.02 LBS Minimum Purchase: 1 unit
UPC:
$12.57 $5.66
(You save $6.91)
Shipping: Calculated at Checkout

About This Item

HY-PRO SEVEN is a class of fit spiral point tap for ferrous and non-ferrous materials.

Features & Benefits:

  • HSS material: Increased wear resistance
  • Spiral Point: For through hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiCN coating: Improves wear resistance for extended tap life

Product Specifications
Manufacturer Part Number2880500
Chamfer Length (Decimal Inch)0.156"
Major Diameter (Decimal Inch)0.190"
Neck Length (Decimal Inch)0.874"
Number of Flutes2
Overall Length (Decimal Inch)2.375"
Shank Diameter (Decimal Inch)0.194"
Square Length (Decimal Inch)0.250"
Square Width (Decimal Inch)0.152"
Maximum Tap Drill Size (Decimal Inch)0.164"
Minimum Tap Drill Size (Decimal Inch)0.156"
Thread Length (Decimal Inch)0.504"
Thread Size NumberNo. 10
CoatingBright
MaterialHSS
Series287 Series
Product TypeSpiral Point Tap
